Brunner BKH 5.0 Panorama 45-65-45-65 ST green

Brunner BKH 5.0 Panorama 45-65-45-65 ST green

The BRUNNER ‘Green’ range of wood-burning stoves sets new standards in stove technology by offering a unique, patent-protected hob firing system. This innovation ensures a perfect flame pattern while minimising emissions, which are well below all current limits. The ‘Green’ and ‘Green+’ fireplaces from BRUNNER are therefore pioneers in sustainable, environmentally friendly heating technology.

Main features of the BRUNNER ‘Green’ fireplaces:

• Patented trough firing: The specially developed combustion chamber geometry is a major innovation. This shape enables efficient and clean combustion, as the primary air flows laterally into the combustion chamber recess and the secondary air is supplied from above as disc scavenging air. The grate and ash box are completely eliminated, which makes maintenance and handling easier.
• Clean burning without laboratory conditions: A particularly noteworthy advantage is that BRUNNER fireplaces do not only achieve their low emissions under laboratory conditions. With the correct operation and the right fuel, verifiably clean emissions can also be achieved in domestic use. This makes it possible for everyone to heat ‘green’ at home.
• Green+ with catalytic converter and combustion control: To achieve the highest quality level, versions with an integrated catalytic converter and intelligent combustion control are available. These ensure even more efficient and environmentally friendly combustion.
• Optimised air flow: A front control element can be used to set the optimum ratio of primary and secondary air, which has been determined on the basis of test bench tests. This precise air control helps to optimise combustion and minimise pollutants.

BRUNNER's ‘Green’ technology shows that efficiency, design and environmental awareness can be harmoniously combined. These fireplaces not only offer a visually appealing and powerful fireplace, but also actively contribute to reducing emissions, making them a forward-looking choice for anyone who wants to heat their home sustainably and responsibly.

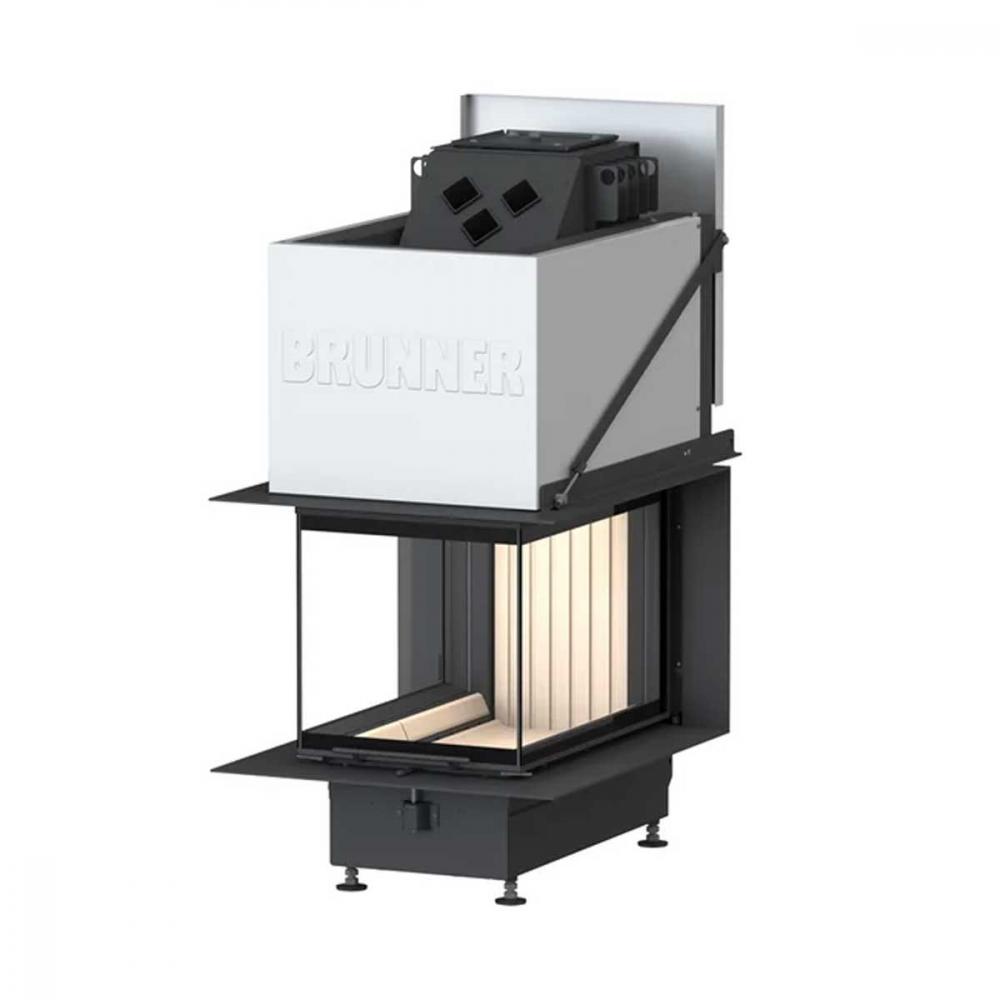

Description of fireplace BKH 5.0 Panorama 45-65-45-65 ST green

• Manufacturer: Brunner
• Energy efficiency class:
• Design: 3 sided
• Nominal heat output kW: 10
• Fuel consumption (kg/h): 3.2
• Glass pane format height x width x depth: 45 x 65 x 45 cm
• Door design: sliding
• Firebox lining: Fireclay Narturton grooved look, optional cast iron
• Burner technology: Wood firing, optional catalyser technology
• Operation: Manually operated, optional combustion control
• Heating gas collector with integrated heating gas deflector (baffle plate) to optimise combustion, low-lying ember bed without grate
• Optional viewing panel made of ceramicised glass, which stays clean for longer thanks to permanent pane rinsing
• Front design: Panoramic end panel narrow or wide
• Hood design: Steel dome connection piece Ø200 mm (alternatively Ø180 mm)
• Log length: 33 - 50 cm
• Weight: approx. 280 kg

Optional hoods: cast iron hood ⌀ 200 mm with cast iron heat exchange rings and modular add-on storage tank MAS 440 double-shell Ø180 mm

optional accessories: EAS, glass ceramic coated, cast iron combustion chamber lining, catalyst module BKH 5.0 for green+, air connection box ⌀ 125 mm (included in EAS version), air connection box ⌀ 150 mm
Requirements/limit values:
EU / Germany: Ecodesign / 1st BImSchV (Level 2)
