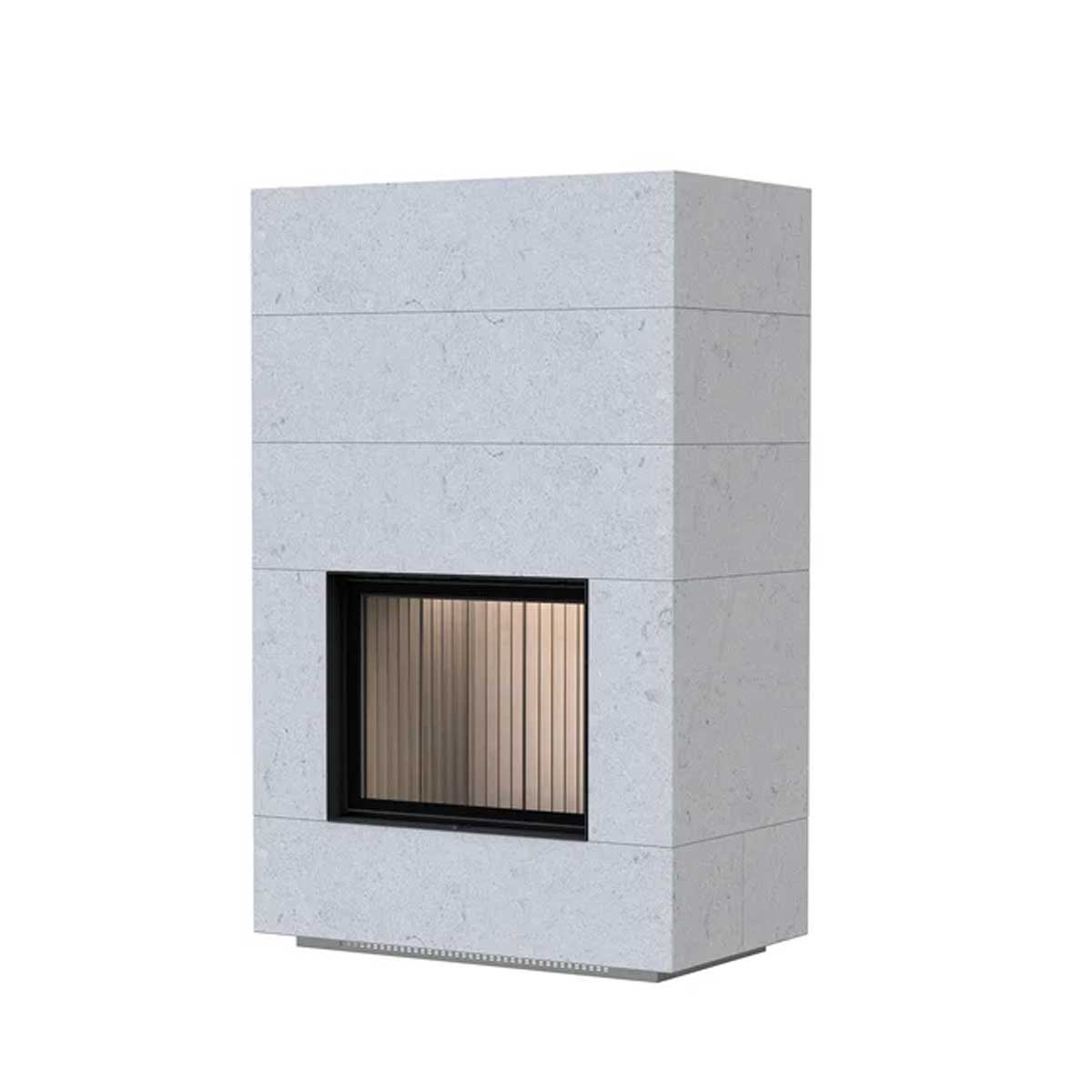

Brunner Fireplace Set BSK 04 Stil-Kamin Flach 62-76 ST green

Brunner System Fireplace BSK 04 Stil-Kamin Flach 62-76 ST green

BRUNNER quality with a customisable fireplace surround

A system fireplace is installed when atmosphere is the primary requirement. The design, fuel quantity and the associated heat output are matched to this.
System fireplaces are also known as ‘rapid reaction stoves’ due to their heat output. The heat is released during combustion. The heating effect results from the combustion chamber radiation through the large viewing window and the hot air.
There is no simpler or cheaper way to build a fireplace or stove. Precisely dimensioned moulded parts made of thermal concrete enable quick installation. Components and moulds are designed so that the fireplace system can be installed in a minimum of space, taking into account function and safety. Only components used in handcrafted stove construction are offered as a ready-made kit. An original BRUNNER heating insert is installed in all versions.

The panelling is available in different quality levels:

• In the functional version with a thermal concrete casing, untreated and deliberately left in exposed concrete as an architectural element.
• Or a hand-finished surface that is painted, plastered and decorated with ceramic elements.

The cladding elements can also be extended in height. Room-height versions have thermal insulation to the ceiling and on-site hot air outlets. If the system cladding is to be extended structurally, all ideas and concepts can be realised with BRUNNER fireplace construction panels. The distance to the extension wall can be minimised with heat protection plates (accessories) fitted to the fireplace insert.

Set components:

• Thermal concrete panelling
• Stil-Kamin 62-76 sliding door
• Fireclay set (strip plates) 62/76
• SET cast iron heat exchanger rings
• Frame
• Connection piece eccentric ⌀ 200 mm

Optional extension rings available in a height of 36.3 cm, for your desired height. Stainless steel plinth panel.
Assembly time: 1-2 days incl. plastering (if required)

Description

• Manufacturer: Brunner
• Energy efficiency class:
• Nominal heat output kW: 10.5
• Fuel consumption (kg/h): 3.2
• Firebox lining: strip plates 62/76
• Burner technology: Wood firing
• Operation: Manually operated, optional combustion control
• Heating gas collector with integrated heating gas deflector (baffle plate) to optimise combustion, low-lying ember bed without grate
• Front design: black fire table
• Log length: 33 - 50 cm
• Cladding width x height x depth: 123 x 193.8 x 71.5 cm
• Weight: approx. 800 kg

Optional accessories: EAS, SET heat protection plate for rear walls, attachment ring for raising BSK 5.1, interchangeable spigot Ø 150 mm, weight set for conversion to ‘not self-closing’, stainless steel plinth panel, damper 200 mm with stainless steel operating handle

Requirements/limit values:
Germany / Austria / Switzerland / Norway: 1.BImSchV (Stufe 2) / 15a BVG (2015) / LRV / NS 3059

*EASY-LIFT’ - AN INVENTION FROM BRUNNER.
There's no easier way to open a sliding door!
This is our solution for a smooth-running and durable disc mechanism. When opening, the door lifts from the stove body and slides upwards. Only when it is closed does the door and its sealing surface move automatically towards the fireplace body.
This door guide, which is unique to fireplaces, is easy to operate and ensures a durable and permanently tight door seal.
There is no easier and quieter way to open a sliding door!
THE ORIGINAL ‘EASY-LIFT’ IS ONLY AVAILABLE FROM BRUNNER.
