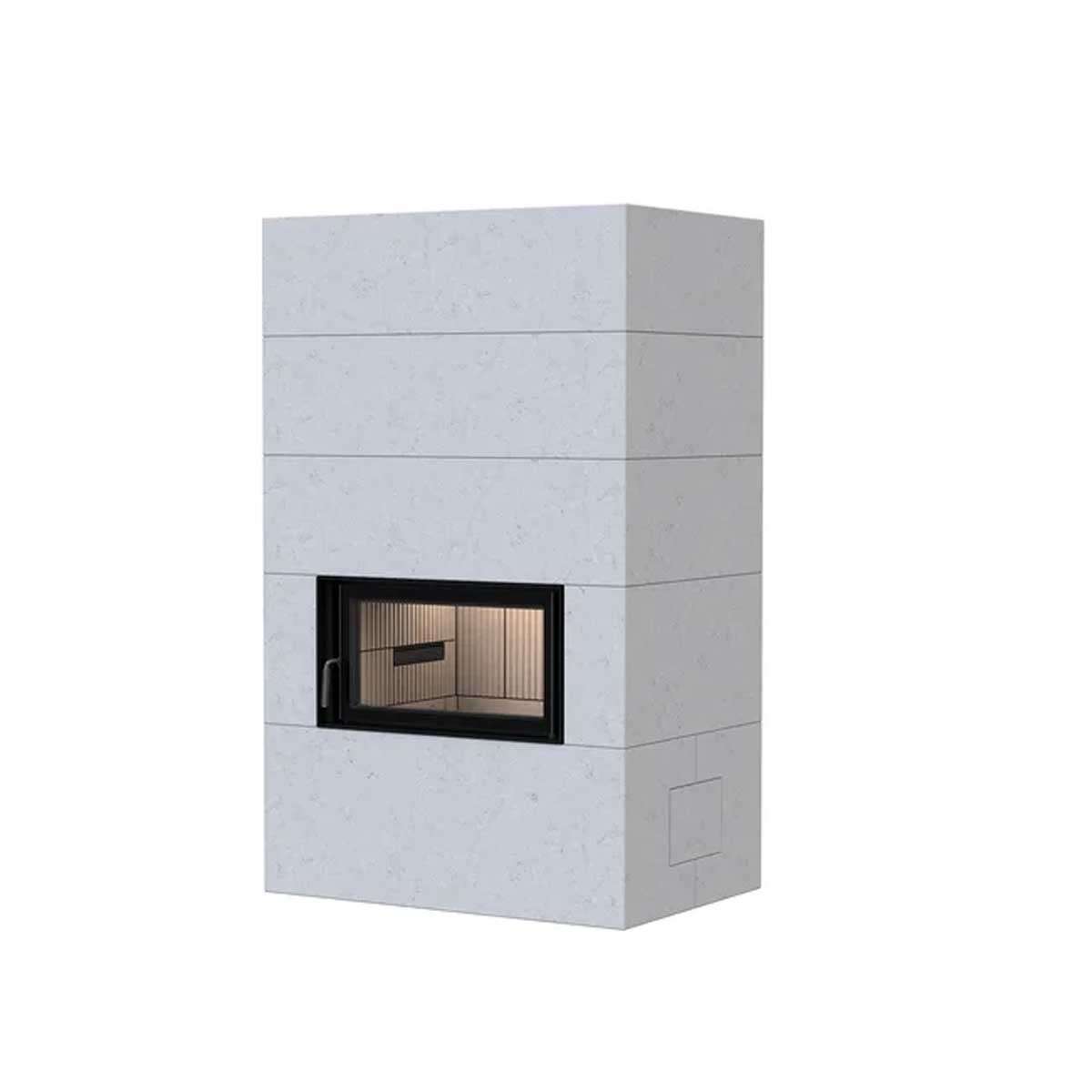

Brunner System Oven BSO 05 EAS Kessel

Brunner System Oven BSO 05 EAS Kessel

BRUNNER quality with a customizable fireplace shell including water technology

BSO-05: THE POWER PLANT.
The most powerful boiler body with a large combustion chamber and integrated cleaning mechanism. Ideal when the wood-burning stove is expected to make a significant contribution to heating water.

The BRUNNER BSO system stoves are a well thought-out and cost-effective solution for efficient heating with an attractive appearance. With their modular kit system, they offer quick installation and at the same time a wide range of design options, from modern exposed concrete to individually designed ceramic surfaces. Unusual plaster structures are also possible, allowing the BSO to be perfectly integrated into different living styles.

Special features of the BRUNNER BSO system stoves:

1. Attractive thermal concrete: The system stove impresses with its simple and elegant concrete look, which fits perfectly into modern living concepts.
2. Alternatively, ceramic surfaces or individual plaster designs are available.
3. Efficient heating technology with a tiled stove effect: The cast-iron tiled stove insert is equipped with a storage mass through which hot gas flows. This enables long-lasting heat emission - even after the fire has gone out.
4. Thanks to the “slow reaction principle”, the stove stores the heat effectively and releases it evenly into the room for hours.
5. Flexibility: For additional efficiency, the system stove is also available as a boiler appliance, which can be ideally integrated into a central heating system.
6. Easy installation and cost control: The kit reduces installation time and overall costs without compromising on quality.

Areas of application

The BRUNNER system stove is ideal for anyone looking for a reliable and sustainable heat source that is also a stylish design object. Its long-lasting heat storage capacity makes it perfect for living spaces where a pleasant temperature needs to be maintained for many hours.

With the BSO system stove, BRUNNER offers a future-oriented solution that harmonizes comfort, functionality and design - for a comfortable home with modern warmth.

There's no easier or more cost-effective way to install a water-bearing wood-burning fireplace in your home. Only components from the skilled trades are used, offered to specialist companies as ready-made kits. All system kits include an original BRUNNER heating insert. Fireplaces and wood-burning stoves have become established in the field of artisanal stove construction.

Set components:

• Thermal concrete cladding
• HKD 7 SK, revolving door, single glass pane
• Fireclay set
• Hood lining HKD 2.2
• Attachment frame
• EAS including flush-mounted box, 2 m door contact cable, 2 m thermal cable, 2 m bus cable
• Flue pipe outlet side/rear ⌀ 180 mm

Description

• Manufacturer: Brunner
• Energy efficiency class:
• Nominal heat output kW: 12.0 (7.5 for water heating)
• Fuel consumption (kg/h): 7
• Door design: hinged
• Firebox lining: Natural fireclay
• Burner technology: Wood firing
• Operation: Manually operated
• Heating gas collector with integrated heating gas deflector (baffle plate) to optimise combustion, low-lying ember bed without grate
• Front design: black Attachment frame
• Log length: 33 - 50 cm
• Cladding height x width x depth: 1800 x 1100 x 740  mm
• Weight: approx. 877 kg

Optional accessories: Heat protection set, 312 mm elevation ring, black door handle, double pane, EOS, Conversion kit cleaning top including plug-in handle

Requirements/limit values:
Germany / Austria / Switzerland / Norway: 1.BImSchV (Stufe 2) / 15a BVG (2015) / LRV / NS 3059
