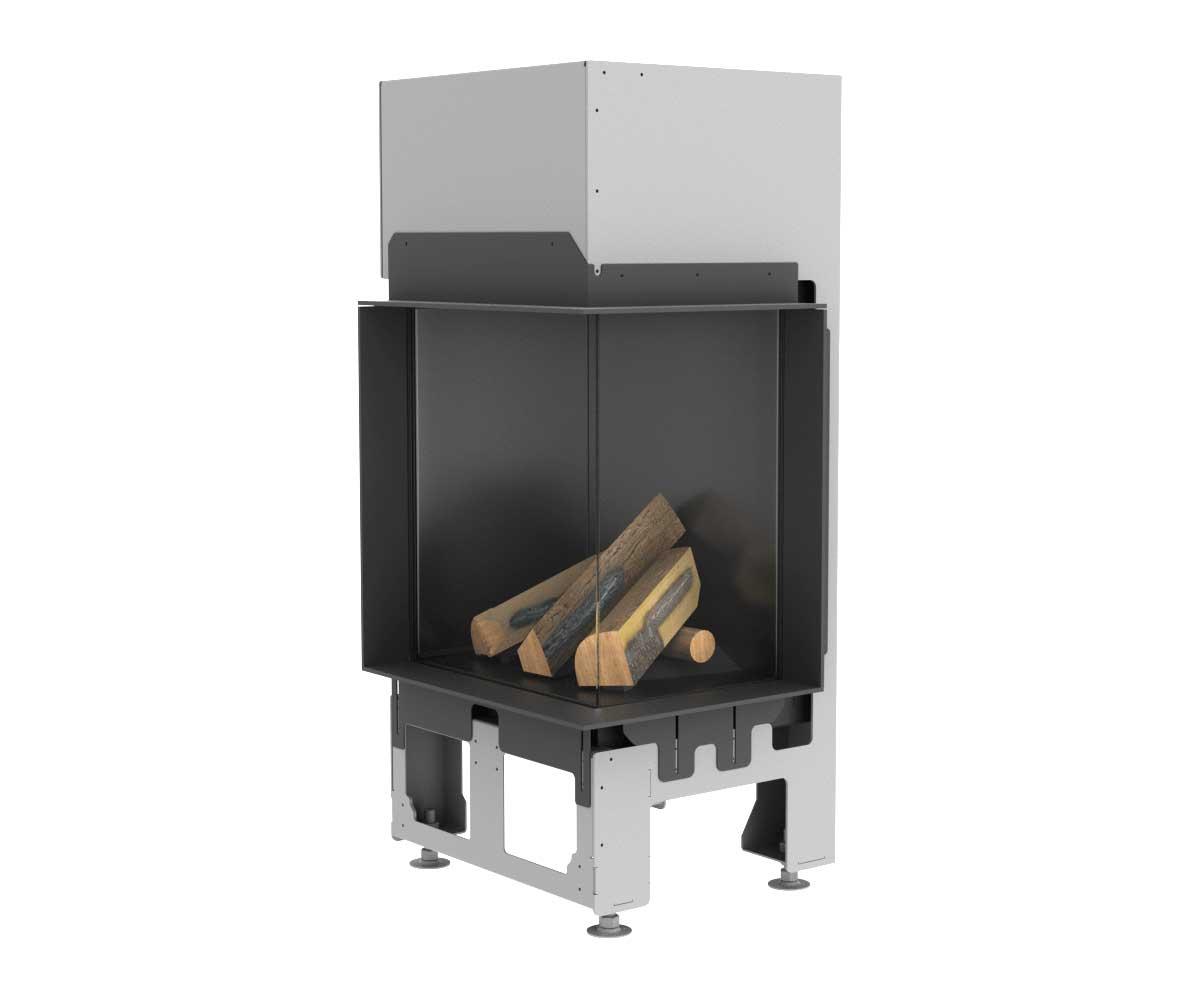

Schmid Ekko G R 45 Gas Fireplace
Closed Schmid gas fireplace inserts
New technologies that inspire
The Schmid brand is not the first on the market, but Camina & Schmid Feuerdesign and Technik is the first company to have developed a gas fireplace insert from their own vision. A product that gives the user comfort and atmosphere, but also a product that is easy to install, to operate and maintain.
Schmid has used the latest technology in burner control for this purpose. By developing its own burner system and equipping the device with the best technological features, Schmid was able to launch a product that could compete with all major brands. Schmid uses metal fibers in the wooden logs for a realistic glowing effect. It is waived on a service door; everything is integrated into the main body to simplify the installation methods. Easy access to the maintenance and service control is provided so that, in the case of a technical inspection, a major part of the decoration can remain on the burner cover. To give the design maximum freedom, all moldings are removable. For the chimney connection to the chimney, the same tools are used as for the individual chimney parts which provide an airtight connection. The system uses a special soft-start mode including two pressure relief valves for maximum safety.
The interior is flexibly equipped. For the introduction of gas appliances, Schmid has so far offered two versions in steel and black glass. Furthermore, the device can be equipped with a hybrid module, which ensures a breathtaking lighting effect under the burning logs. This module has three different programs, which make it possible to use the fireplace insert not only with heat output, but also as a pure glowing eye-catcher. Thus, the gas fireplace insert is available throughout the year.
General information
- Gas fireplace inserts with time-controlled and room-temperature-dependent or manual control via remote control.
- Firebox rear and side walls selectable from sheet steel or glass ceramic depending on the device.
- The gas fireplace insert may only be operated closed.
- Safety system protects the gas fireplace and the glass ceramic in case of deflagration.
- The glass ceramic disc (s) can be opened for cleaning and maintenance.
- Fire-resistant imitations of wood or marble gravel made of ceramic fiber as a fireproof appearance.
- Brenner Deco Chips
- Connecting piece perfectly suitable for LAS system for a better airtight installation.
- Fire protection measures according to T400.
- Control unit completely preassembled in the base area.
- Radio remote control with the following functions: On / Off; Flame image settings, programmable time programs; Room temperature control. The remote communicates bidirectionally and returns information as needed.
- Installation and operating instructions are included.
- The air exhaust system (LAS) Schmid LAS must be used!
- IMPORTANT! Observe the instructions in the assembly instructions!
Optional accessories / equipment: flexible gas safety hose 1500mm pre-assembled, LED ambient lighting (power connection required), inner lining glass ceramic black (glossy)
Technical data Ekko G R 45
- Ekko G L 45: available for G20 (G25 G30 / 31 (propane))
- Nominal heat output kW: 9.0 Natural gas
- Power range kW: 2.0 - 7.5
- Gas connection inch: 1/2
- Approved air exhaust system Schmid: LAS diameter mm Ø 130/200
- Tested to: EN-613
- Weight, gas fireplace approx. Kg: 155
- IMPORTANT! Due to the design, free cross sections must be provided with 2 convection openings (2 x 150 cm² = 300 cm²)!
- Energy efficiency class according to (EU) 2015/1186: A
Important note: The connection of a gas fireplace may ONLY be carried out by a specialist company!
Gas chimneys by Camina & Schmid may ONLY be installed with the LAS flue gas system by Camina & Schmid; otherwise they are not certified and will not be approved.
Shipping conditions
Delivery is only possible within Germany.Other countries only on request; pick up is also possible!
Shipping costs (including statutory VAT)
Deliveries within Germany:
We calculate the shipping costs based on the order value (gross goods value):
up to a goods value of 99.99 EUR = 6.90 EUR
free shipping within Germany from a goods value of 100 EUR
Manufacturer: Camina & Schmid
Feuerdesign und Technik GmbH & Co. KG
Gewerbepark 18
49143 Bissendorf
Phone +49 5402 7010-10
Fax +49 5402 7010-70
www.camina-schmid.de
Protective measures/safety instructions for installation (wood fires and stoves)
The following protective measures and safety instructions must be strictly observed:
- Fireplaces may only be installed in rooms and in places where the location, structural circumstances and type of use do not present any hazards.
- No modifications may be made to the appliance.
- Only use the approved system for exhaust gas removal/combustion air supply.
- Work on the stove system Installation, commissioning, maintenance and servicing work on the appliance may only be carried out by an authorized specialist company.
as the safety and functionality of the system depend on proper installation. - The installation must be carried out by a registered specialist company, as the safety and functionality of the system depend on proper installation. You must observe the applicable trade regulations and building regulations.
- Fireplaces must be installed in an operationally safe and fireproof manner so that hazards and unreasonable nuisances cannot occur. They must be fit for purpose for a reasonable period of time.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
Protective measures/safety instructions for installing gas fireplaces
The following protective measures and safety instructions must be strictly observed:
- Installation and maintenance of the appliance may only be carried out by a recognized and competent installer in the field of gas heating and electricity.
- No modifications may be made to the appliance.
- Only use the approved flue gas extraction/combustion air supply system.
- Procedure when installing a free-standing appliance: place the appliance at the specified minimum distance from the rear wall (see information in the instructions).
- Do not cover the appliance or wrap it in an insulating blanket or other materials. Ensure that there are no flammable objects and/or materials in the radiation area of the appliance. This radiation range is 500 mm, unless otherwise specified.
- Only use the set included in the scope of delivery, for example the wooden block set or the pebble set, and place it exactly as described.
- Leave the space around the ionizing pin and the ignition pin free and never place any incandescent material around these pins.
- Make sure that the gas pipes and connections are clean and free of any impurities. Install a gas tap in accordance with the applicable regulations.
- Check the entire system for gas leaks before commissioning.
- Check the entire system for gas leaks before commissioning.
- Ensure that the pressure equalization hatch(es) at the top and/or bottom of the appliance are not blocked and check that these hatch(es) are well connected to the sealing surface before installing the appliance.
- Do not ignite the appliance until it has been fully installed in terms of gas technology, exhaust technology and electrical technology.
- Do not use the appliance if a pane is broken and/or cracked. The pane must be replaced first.
How to install a built-in appliance:
- Use fireproof and heat-resistant materials for the fireplace surround, including the top of the fireplace surround and the material inside the fireplace surround, such as the floor under the appliance and the rear wall in front of which the appliance is installed. Both panel materials and stone-like materials can be used for this purpose.
- Take appropriate protective measures to ensure that the wall behind the fireplace surround and the materials or objects located behind the rear wall do not heat up too much.
- Observe the minimum specifications regarding the internal dimensions of the fireplace surround. These have been specified for safety reasons and to avoid extreme heat build-up in the fireplace conversion.
- Ventilate the fireplace conversion using ventilation openings. These openings are crucial for safety and to prevent extreme heat build-up in the fireplace conversion.
- The electrical connections must be heat-resistant.
- Position the heat-resistant power connections away from the appliance and as low as possible in the fireplace surround.
- This applies in connection with the temperature development in the fireplace surround.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
