Camina Schmid Ekko G U 100(34)51 Gas Fireplace
Schmid Ekko G U 100(34)51 Gas Fireplace
Simply switch on and switch off
Camina & Schmid is a renowned manufacturer of high-quality gas fires. The wide range of products offers the right model for every living situation. The gas fires from Camina & Schmid are characterised by their high quality, durability and attractive appearance.
With the versatile gas fires from Camina & Schmid, you can transform your four walls into a place with a special atmosphere in no time at all. Enjoy the comfort of a gas fire: pleasant warmth at the touch of a button. Easy to clean and clean to operate - the stress of everyday life is quickly forgotten.
Fire at the touch of a button
The fire in Camina & Schmid gas fires can be set to one of eight levels. These eight levels remain constant in their respective flame height and achieve an even flame pattern. There is also a ninth level - the ECO setting. During the programme, the gas fire varies the previous flame height levels. This results in a moving flame pattern and uses less energy. The flame of the Camina & Schmid gas fires is monitored electronically throughout. In the event of a power failure, two springs in the solenoid valve ensure that the gas supply is switched off immediately. If the gas pressure fluctuates, the gas supply in the gas fire is stopped immediately by the gas control valve.
Ceramic logs
The gas fires from Camina & Schmid are characterised by an impressive, varied flame pattern. Created by the centrepiece of the system: unique ceramic logs cast with incorporated tungsten filaments. Contact with the flame causes these threads to glow, creating a deceptively realistic glowing effect.
With the additional LED ambient lighting, a bed of glowing coals is recreated in the gas fireplaces. The imitation ember bed of a fireplace can be used both as a light source when the appliance is switched off and when the gas fire is in use to add even more dimension to the flame image.
With the Camina & Schmid gas fire inserts, you can experience a modern fire combined with intelligent control options and maximum safety.
- Time-controlled and room temperature-dependent control.
- Manual operation via a bidirectional radio remote control.
- Functions of the remote control: On/Off. Adjustment of the flame pattern. Programmable time programmes. Room temperature control with feedback on the current setting.
- Rear and side panels made of sheet steel or glass ceramic.
- Firebox finishes with fire-resistant imitation wood or marble gravel made of ceramic fibre.
- Decorative burner chips for additional aesthetic details.
- Closed operation for maximum protection.
- Integrated safety system that protects the gas fire and glass ceramic in the event of a deflagration.
- Glass ceramic panels can be easily opened for cleaning and maintenance.
- All models fulfil the T400 fire protection requirements.
- Perfectly fitting connection pieces for LAS systems for an airtight installation.
- Control and regulation unit fully pre-assembled in the plinth area.
- Each gas fire is supplied with installation and operating instructions.
Optional accessories: flexible gas safety hose 1500mm pre-assembled
Optional equipment: LED ambient lighting (power connection required), black glass ceramic inner lining (glossy)
Details

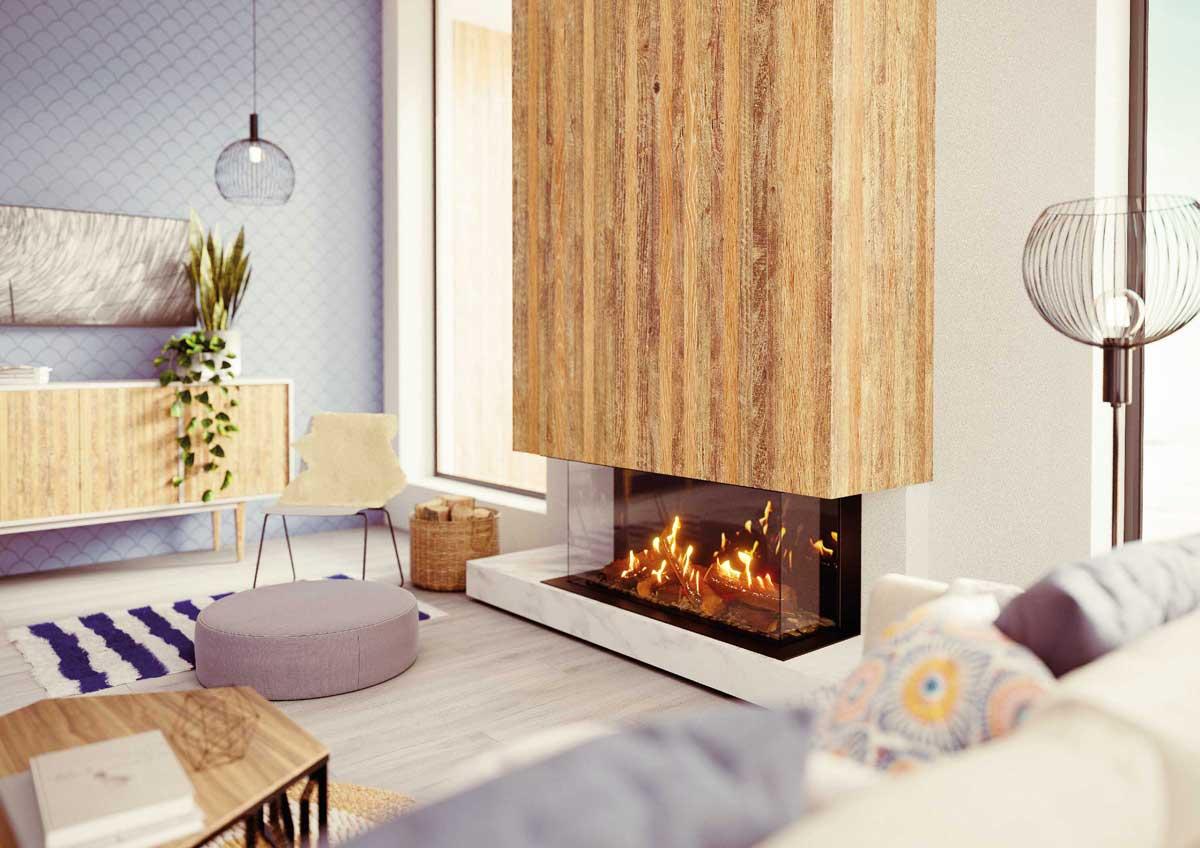

- Gas fireplace insert, open on 3 sides
- Versatile burner system, consisting of 4 ceramic burners with efficient and energy-saving combustion technology, switchable in 2 stages
- Inner lining: anthracite sheet steel (matt) or black ceramic glass (glossy)
- Realistic ceramic logs, consisting of 4 ceramic burners and five decorative logs
- Dynamic and realistic flame pattern that never gets boring, switchable in 8 levels plus eco mode (9th level)
- Optional: LED ambient lighting with a choice of 3 different light programmes
- Can be connected to an existing gas supply
Technical data (based on I2E / I2H (natural gas H, G20))
- Energy efficiency class according to (EU) 2015/1186:
- Nominal heat load: 8.0 kW
- Power range: 2.5-8.0 kW
- Consumption: max. 0.840 m³/h
- Connection pressure: 20 mbar
- Electrical power consumption: 10W (max.)/ 3W (standby)
- Flue pipe connection Ø: 130/200 mm
- Recommended free cross-section (supply air/exhaust air): 2x 150 cm² each
- Maximum thickness of the fire table: 20 mm
- Maximum load of the panel: 80 kg
- Number of sockets required: 1 piece
- Number of sockets required when using the LED ambient lighting: 2 sockets
- Gas connection: 1/2’
- Approved air/flue gas system (LAS): Camina & Schmid
- LAS gas installation type: C11, C31, C91
- Firebox appearance: Ceramic logs
- Weight incl. control unit and ceramic logs: approx. 220 kg
Important note: The connection of a gas fire must ONLY be carried out by a specialist company!
Gas fires from Camina&Schmid may ONLY be installed with the LAS flue gas system from Camina&Schmid; otherwise they are not certified and not authorised.
We will also be happy to make you a complete offer including the required pipes; for this we need information about the planned design with height details.
Shipping conditions
Delivery is only possible within Germany.Other countries only on request; pick up is also possible!
Shipping costs (including statutory VAT)
Deliveries within Germany:
We calculate the shipping costs based on the order value (gross goods value):
up to a goods value of 99.99 EUR = 6.90 EUR
free shipping within Germany from a goods value of 100 EUR
Manufacturer: Camina & Schmid
Feuerdesign und Technik GmbH & Co. KG
Gewerbepark 18
49143 Bissendorf
Phone +49 5402 7010-10
Fax +49 5402 7010-70
www.camina-schmid.de
Protective measures/safety instructions for installation (wood fires and stoves)
The following protective measures and safety instructions must be strictly observed:
- Fireplaces may only be installed in rooms and in places where the location, structural circumstances and type of use do not present any hazards.
- No modifications may be made to the appliance.
- Only use the approved system for exhaust gas removal/combustion air supply.
- Work on the stove system Installation, commissioning, maintenance and servicing work on the appliance may only be carried out by an authorized specialist company.
as the safety and functionality of the system depend on proper installation. - The installation must be carried out by a registered specialist company, as the safety and functionality of the system depend on proper installation. You must observe the applicable trade regulations and building regulations.
- Fireplaces must be installed in an operationally safe and fireproof manner so that hazards and unreasonable nuisances cannot occur. They must be fit for purpose for a reasonable period of time.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
Protective measures/safety instructions for installing gas fireplaces
The following protective measures and safety instructions must be strictly observed:
- Installation and maintenance of the appliance may only be carried out by a recognized and competent installer in the field of gas heating and electricity.
- No modifications may be made to the appliance.
- Only use the approved flue gas extraction/combustion air supply system.
- Procedure when installing a free-standing appliance: place the appliance at the specified minimum distance from the rear wall (see information in the instructions).
- Do not cover the appliance or wrap it in an insulating blanket or other materials. Ensure that there are no flammable objects and/or materials in the radiation area of the appliance. This radiation range is 500 mm, unless otherwise specified.
- Only use the set included in the scope of delivery, for example the wooden block set or the pebble set, and place it exactly as described.
- Leave the space around the ionizing pin and the ignition pin free and never place any incandescent material around these pins.
- Make sure that the gas pipes and connections are clean and free of any impurities. Install a gas tap in accordance with the applicable regulations.
- Check the entire system for gas leaks before commissioning.
- Check the entire system for gas leaks before commissioning.
- Ensure that the pressure equalization hatch(es) at the top and/or bottom of the appliance are not blocked and check that these hatch(es) are well connected to the sealing surface before installing the appliance.
- Do not ignite the appliance until it has been fully installed in terms of gas technology, exhaust technology and electrical technology.
- Do not use the appliance if a pane is broken and/or cracked. The pane must be replaced first.
How to install a built-in appliance:
- Use fireproof and heat-resistant materials for the fireplace surround, including the top of the fireplace surround and the material inside the fireplace surround, such as the floor under the appliance and the rear wall in front of which the appliance is installed. Both panel materials and stone-like materials can be used for this purpose.
- Take appropriate protective measures to ensure that the wall behind the fireplace surround and the materials or objects located behind the rear wall do not heat up too much.
- Observe the minimum specifications regarding the internal dimensions of the fireplace surround. These have been specified for safety reasons and to avoid extreme heat build-up in the fireplace conversion.
- Ventilate the fireplace conversion using ventilation openings. These openings are crucial for safety and to prevent extreme heat build-up in the fireplace conversion.
- The electrical connections must be heat-resistant.
- Position the heat-resistant power connections away from the appliance and as low as possible in the fireplace surround.
- This applies in connection with the temperature development in the fireplace surround.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
