Stylish design meets efficient warmth with cast iron cooking area

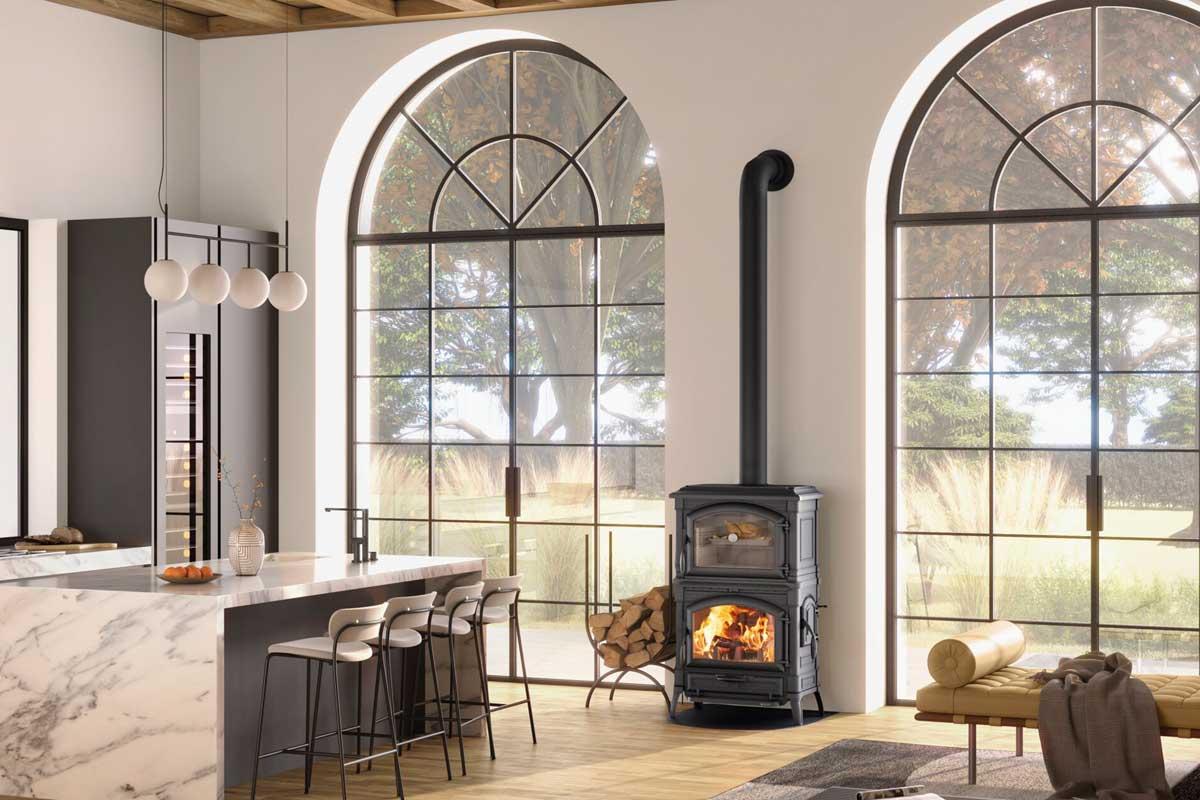

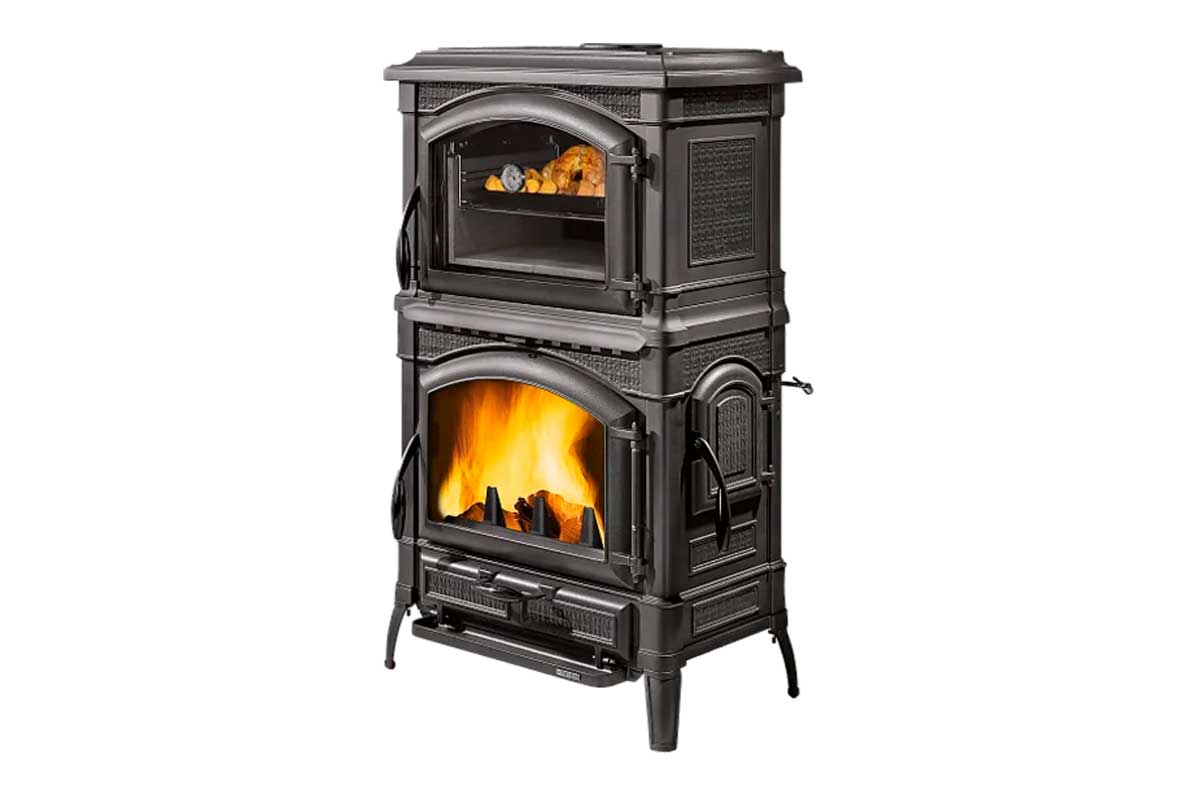

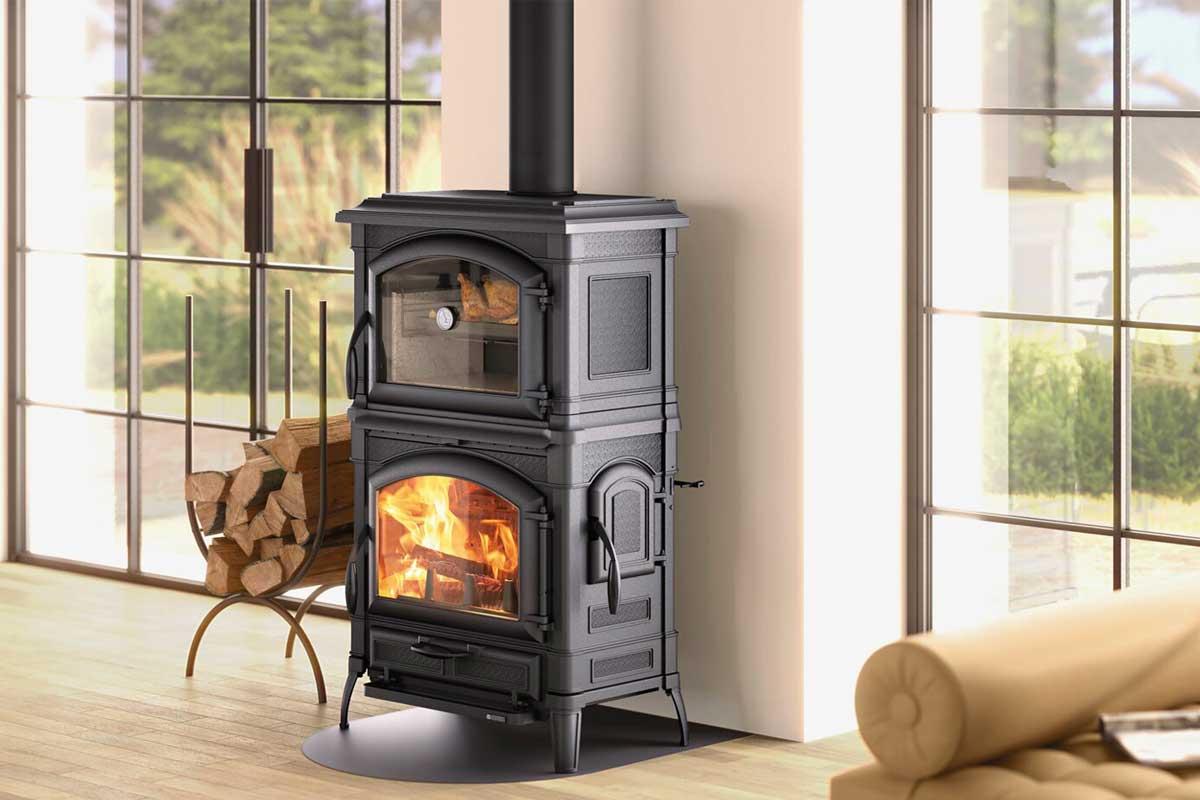

The Isotta Forno is a cast-iron wood-burning oven with a 39-liter upper oven. It also features a side door, an alternative to the front door, making wood loading even more convenient.
Product-Highlights:
-
Stove made entirely of enamelled cast iron
-
Extensible ash pan for convenient cleaning
-
Oven with 39 litre capacity made of porcelain-enameled steel with lava stone interior
-
Adjustable primary and secondary air supply for optimized combustion
-
Afterburner system for low emissions
-
Door front and side loading
-
Ceramic glass
-

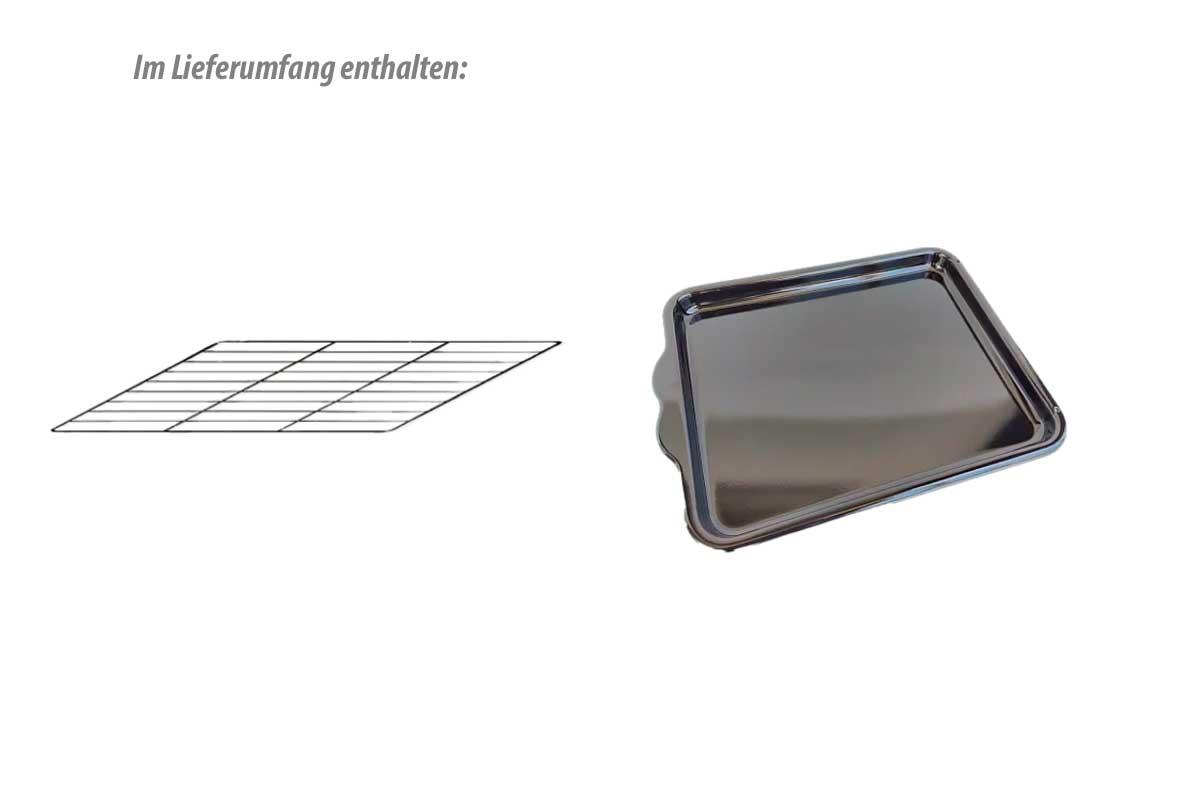

Includes 1 enamelled baking tray and 1 chrome-plated grate
Tecnical Data:
| characteristics | value |
|---|---|

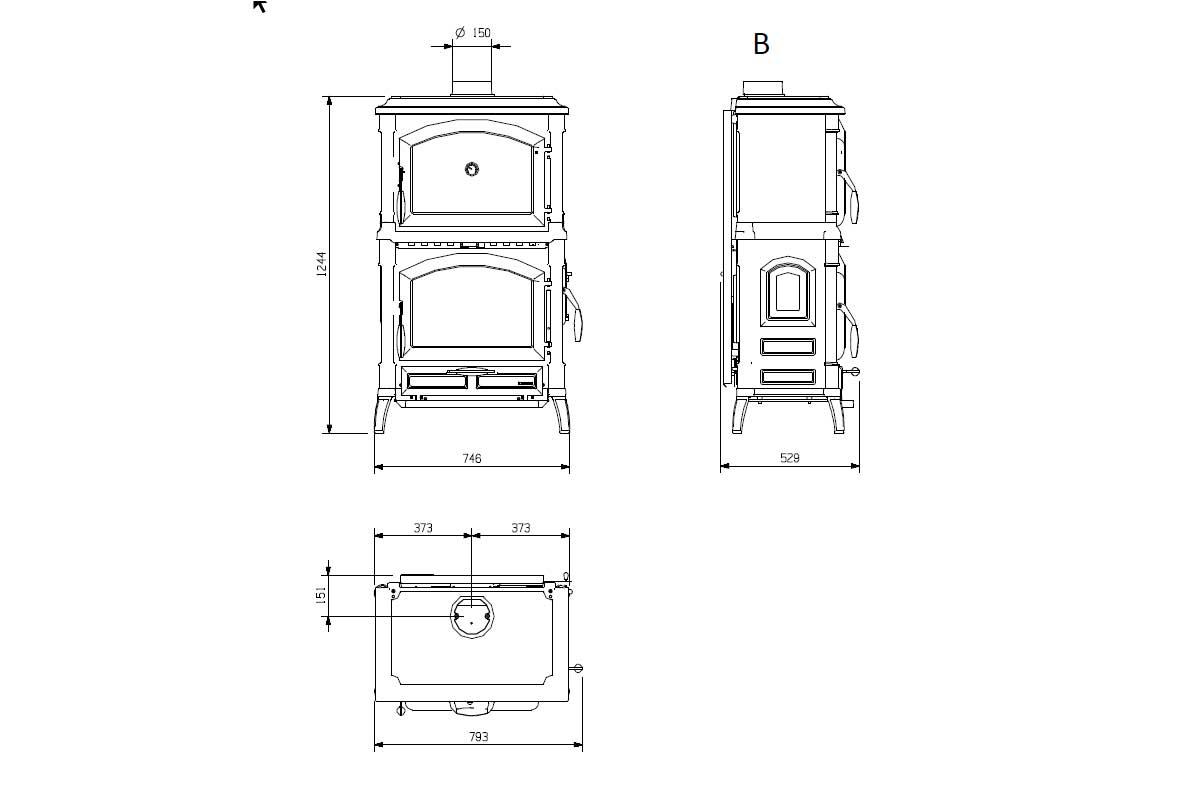

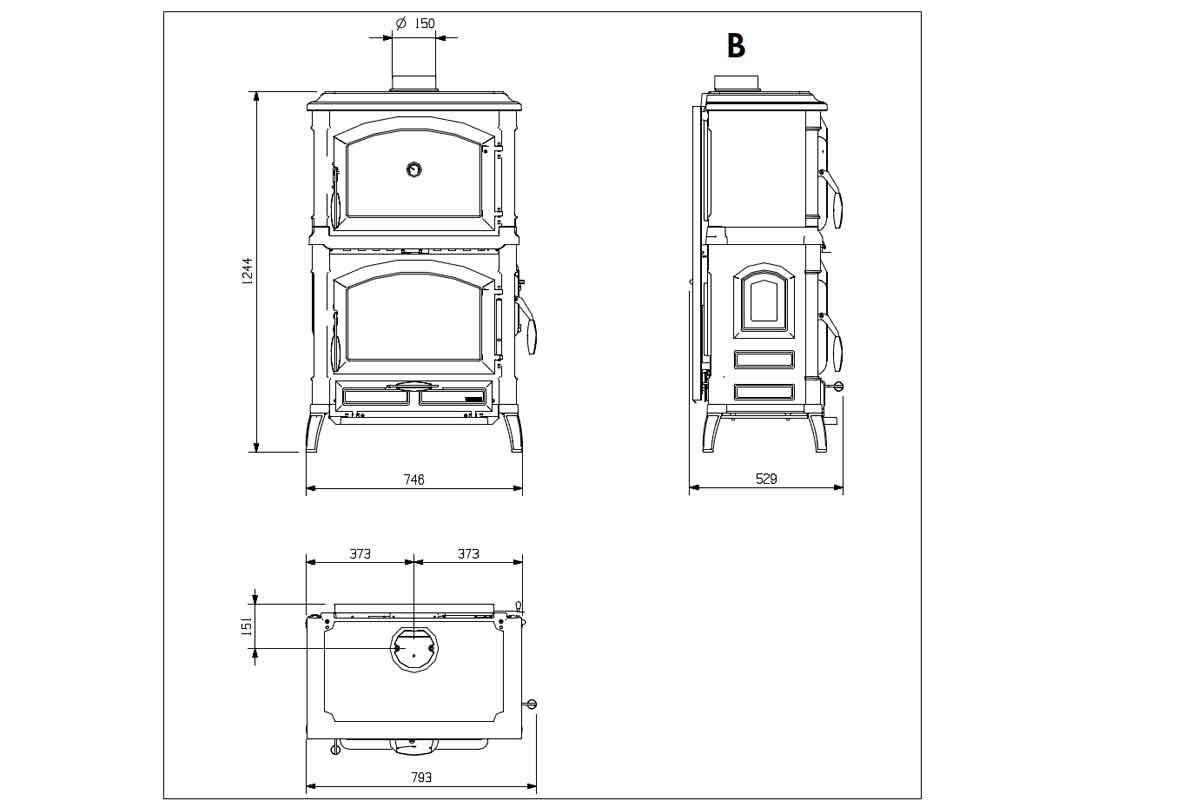

| Dimensions (W x H x D) | 795 × 1244 × 530 mm |
| Nominal heat output | 9.7 kW |
| Efficiency | 87.7 % |
| Energy efficiency class | A+ |
| Heating volume (max.) | 278 m³ (*) |
| Hourly fuel consumption | aprox. 3.2 kg/h |
| Exhaust connection (Ø) | 150 mm (on top) |
| Weight | 300 kg |
| Size of combustion chamber opening (WxH) | 519 x 305 mm |
| Firebox size (WxHxD) | 597 x 360 x 290 mm |
| Max. log length | 30 cm |
| Colours | anthracite-black |
(*) Calculation basis: 30 kcal/h × m³ – the value is indicative and may vary depending on the building insulation and room conditions.
Certifications: BlmSchV, Ecodesign, Flamme Verte, MFB, Conto Termico 2.0, 15a B-VG
HIGHEST PERFORMANCE FOR TIMELESS STYLE
La Nordica-Extraflame consistently uses high-quality cast iron for the manufacture of its products – a material characterized by exceptional thermal and mechanical properties.
Thanks to its high coefficient of thermal stress, cast iron retains its shape even under intense heat – ideal for use in stoves. It is extremely heat-resistant, shock-resistant, and has the ability to distribute heat evenly throughout the room over a long period of time.
Furthermore, cast iron is fully recyclable and therefore particularly environmentally friendly.
The product finishes are available:
Enameled: For a sophisticated, timeless look with minimal maintenance.
Painted: For a modern, understated finish.
Note:
Enameled cast iron has a virtually unlimited lifespan when used properly and requires very little maintenance.
Isotta – for all those who want to combine warmth with style and responsibility.
For years, La Nordica Extraflame has been developing and marketing increasingly powerful and efficient wood-burning stoves. Innovations that enable perfect wood combustion, drastically reducing waste, and constant technological modernization, always with a focus on consumer needs, savings and environmental protection, and optimal product performance.
declaration of performance Data sheet Installation Guide Ecodesign
Manufacturer:
La Nordica S.p.A.
Via Summano, 104
36030 Montecchio Precalcino VI
info@lanordica.com
Protective measures/safety instructions for installation (wood fires and stoves)
The following protective measures and safety instructions must be strictly observed:
- Fireplaces may only be installed in rooms and in places where the location, structural circumstances and type of use do not present any hazards.
- No modifications may be made to the appliance.
- Only use the approved system for exhaust gas removal/combustion air supply.
- Work on the stove system Installation, commissioning, maintenance and servicing work on the appliance may only be carried out by an authorized specialist company.
as the safety and functionality of the system depend on proper installation. - The installation must be carried out by a registered specialist company, as the safety and functionality of the system depend on proper installation. You must observe the applicable trade regulations and building regulations.
- Fireplaces must be installed in an operationally safe and fireproof manner so that hazards and unreasonable nuisances cannot occur. They must be fit for purpose for a reasonable period of time.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
