Dik Geurts Fireplace INSTYLE 800

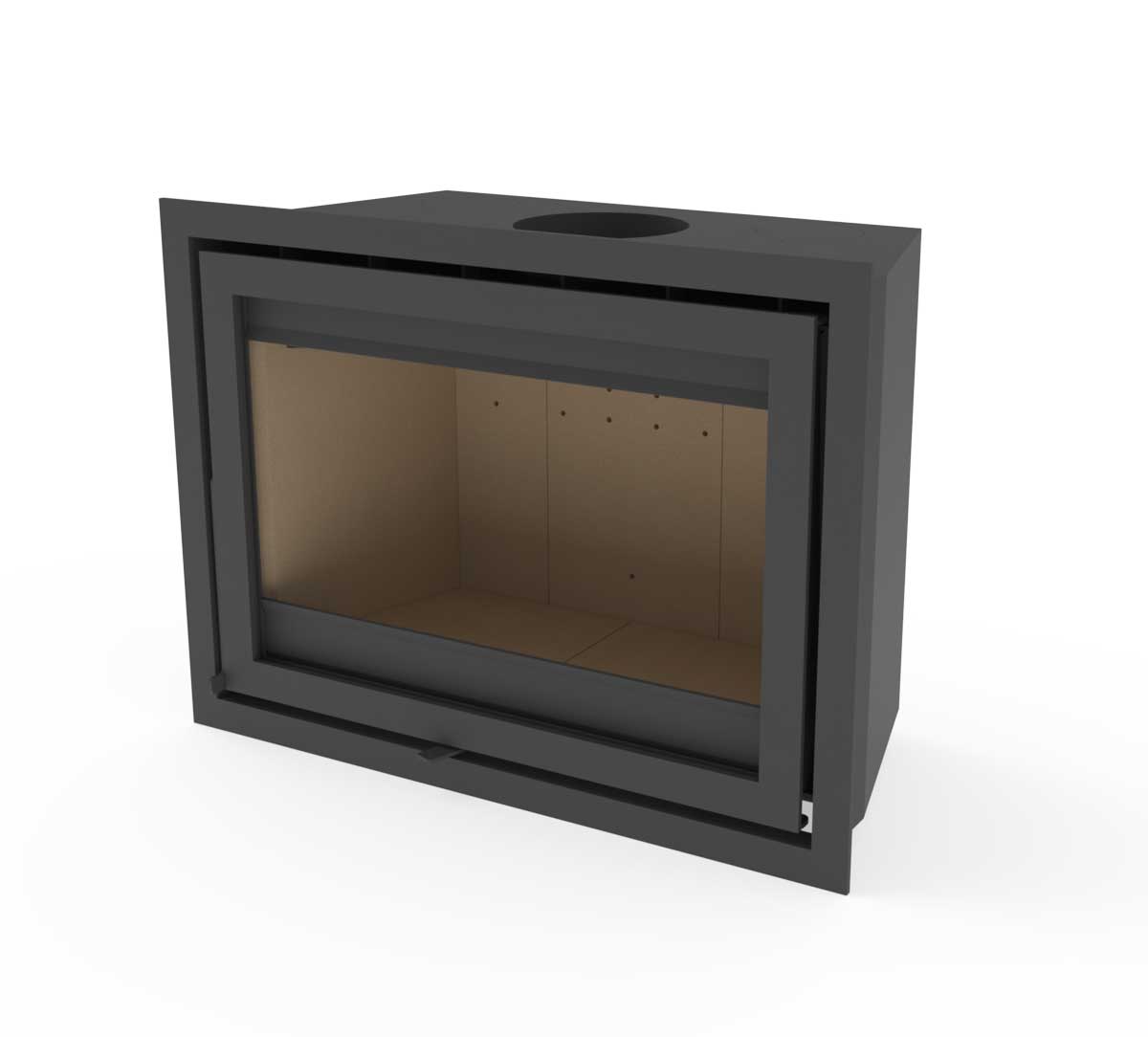

Dik Geurts Instyle 800 – Modern Built-in Wood-Burning Insert
The Dik Geurts Instyle 800 is a high-quality built-in wood-burning insert with clear front glass and an elegant design. At 80 cm wide, it fits perfectly into standard brick fireplaces or new fireplace conversions. Thanks to the EcoDesign standard, this insert meets current environmental and efficiency requirements. Perfect for anyone who wants to combine ambiance and performance in one fireplace.
Advantages & Special Features
- Compact front design: The insert is optimally suited for standard chimney stacks and classic fireplace benches, making it ideal for renovations or new builds.
- Design flexibility: Different frame options are available, such as Classic Line, Modern Line, or Slim Line, for a harmonious architectural fit.
- EcoDesign Ready: It meets current environmental standards – low emissions, high efficiency.
- Large viewing window: Offers a generous view of the flames, making the fire look particularly impressive.
- Robust construction: Steel housing, vermiculite interior lining, proven hinged door mechanism.
- Convection jacket: Offers the possibility of redirecting the warm air using flexible aluminum pipes.
The Dik Geurts brand has always stood for craftsmanship, design, and authentic wood fires. Since its founding, the company has established itself as a major player in the world of fireplaces. With its integration into the innovative company DRU Verwarming B.V. in 2007, Dik Geurts has benefited from DRU's centuries of expertise and commitment to quality.
At Dik Geurts, we are not only designers but also passionate advocates of traditional wood fires. At our company in Duiven, the Netherlands, we are dedicated to developing fireplaces that impress with their quality and ease of use.
Dik Geurts fireplace inserts: The combination of simplicity, experience, and technical know-how creates beautiful fireplaces – with flames that radiate true splendor.
Technical data
- Brand: Dik Geurts
- Energy efficiency class:
- Nominal heat output (kW): 10.2
- Net output min.-max. (kW): 8.0-12.0
- Efficiency in (%): 76.6
- Model: built-in
- Fire view: Front 1 sided
- Fuel: Wood
- Combustion system: Closed combustion, room air dependent
- Glass version: standard glass
- Door design: Hinged door
- Operation: Manual
- Colour: Dark anthracite
- Material: Steel
- Interior: Vermiculite
- Installation depth (mm): 400
- Fire view width (mm): 660
- Fire view height (mm): 437
- Weight (kg): 125
- Top/rear smoke outlet (mm): 180
- Outside air connection: bottom/back
- Certifications: EN13229, Flamme Verte, BlmSchV 1+2, Defra, EcoDesign, Hetas
Optional accessories:

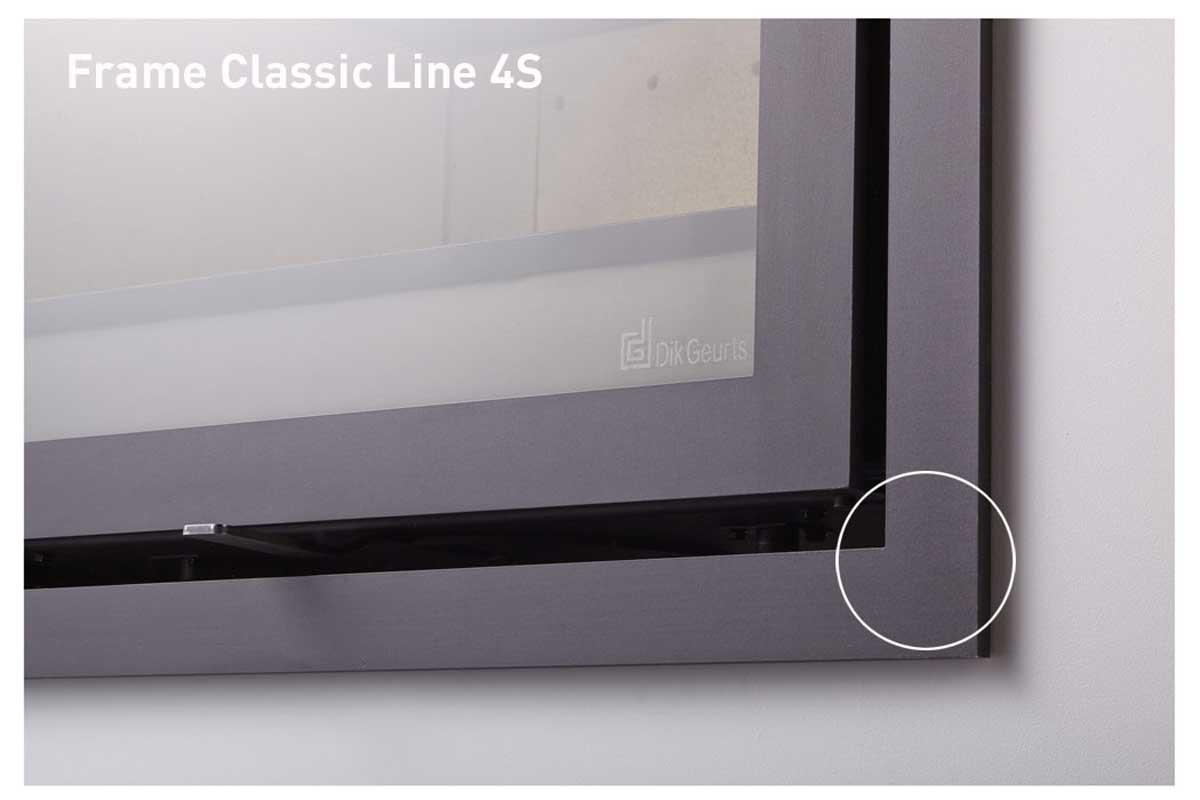

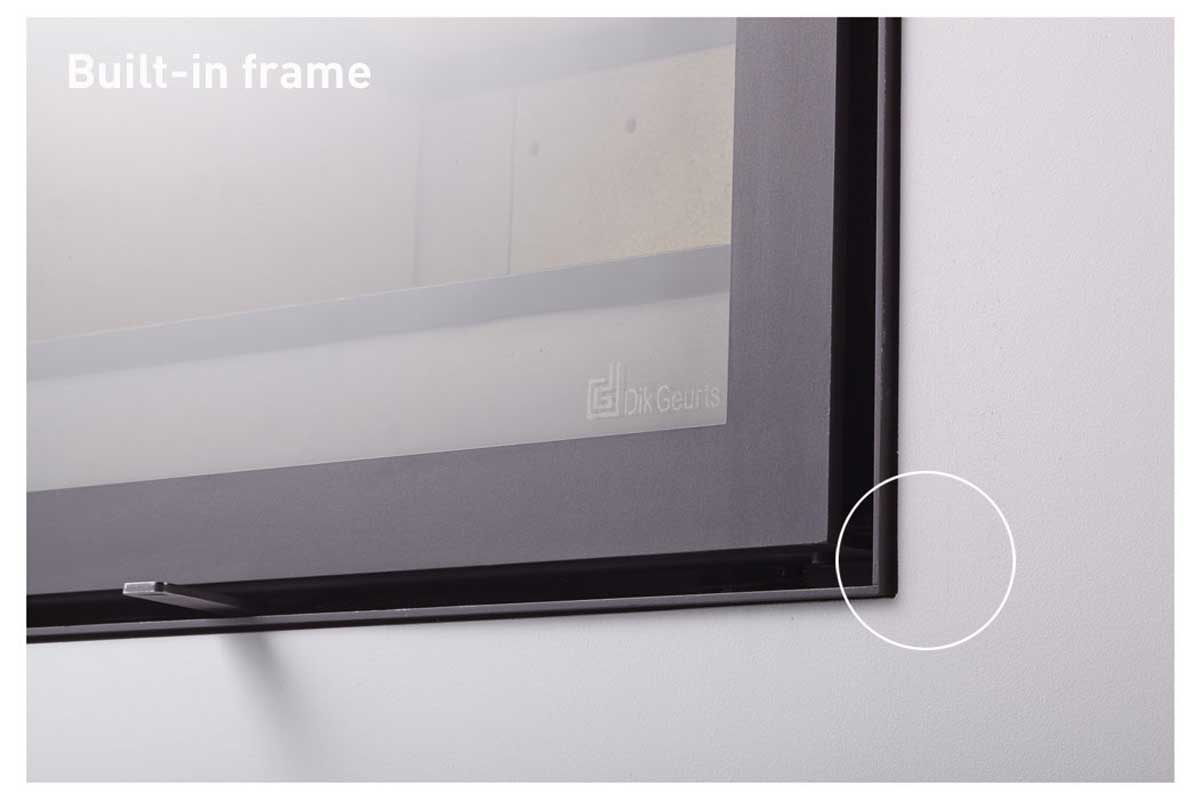

– Mounting frame 4S, 3 mm– Classic Line 4S frame, solid, 40 mm

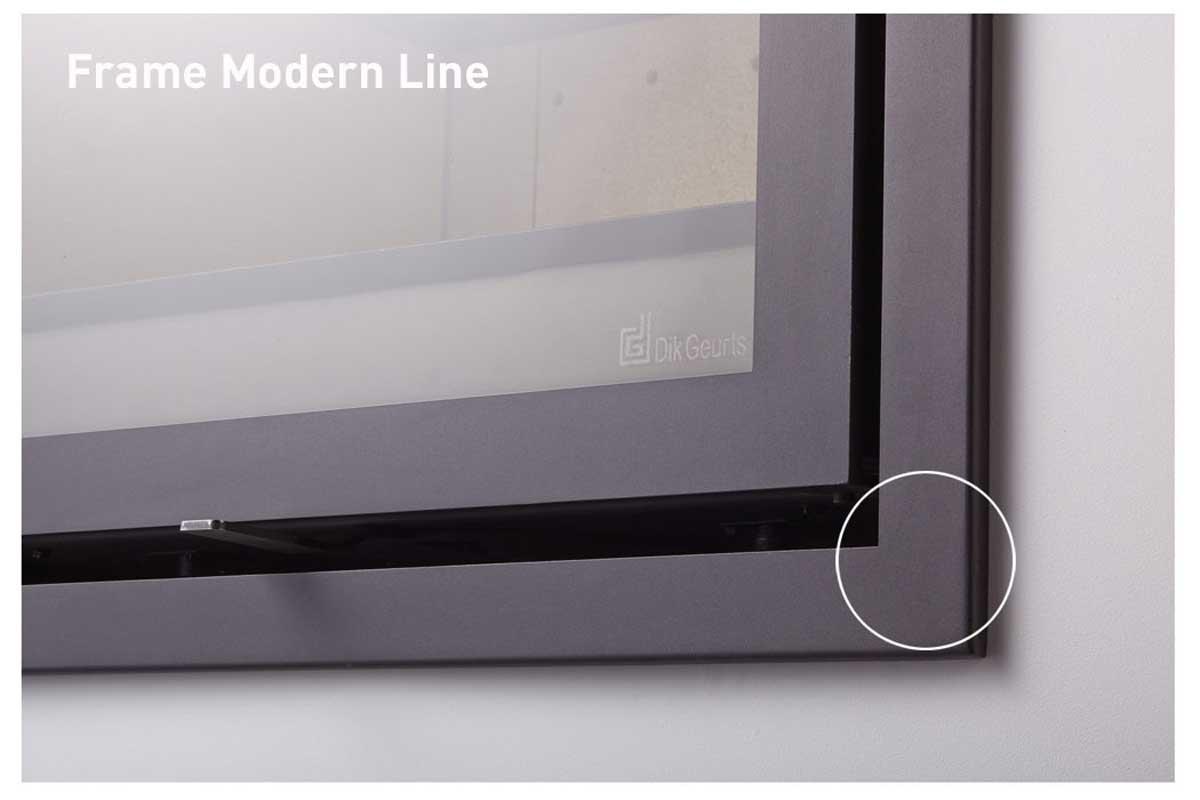

– Modern Line frame, 40 mm

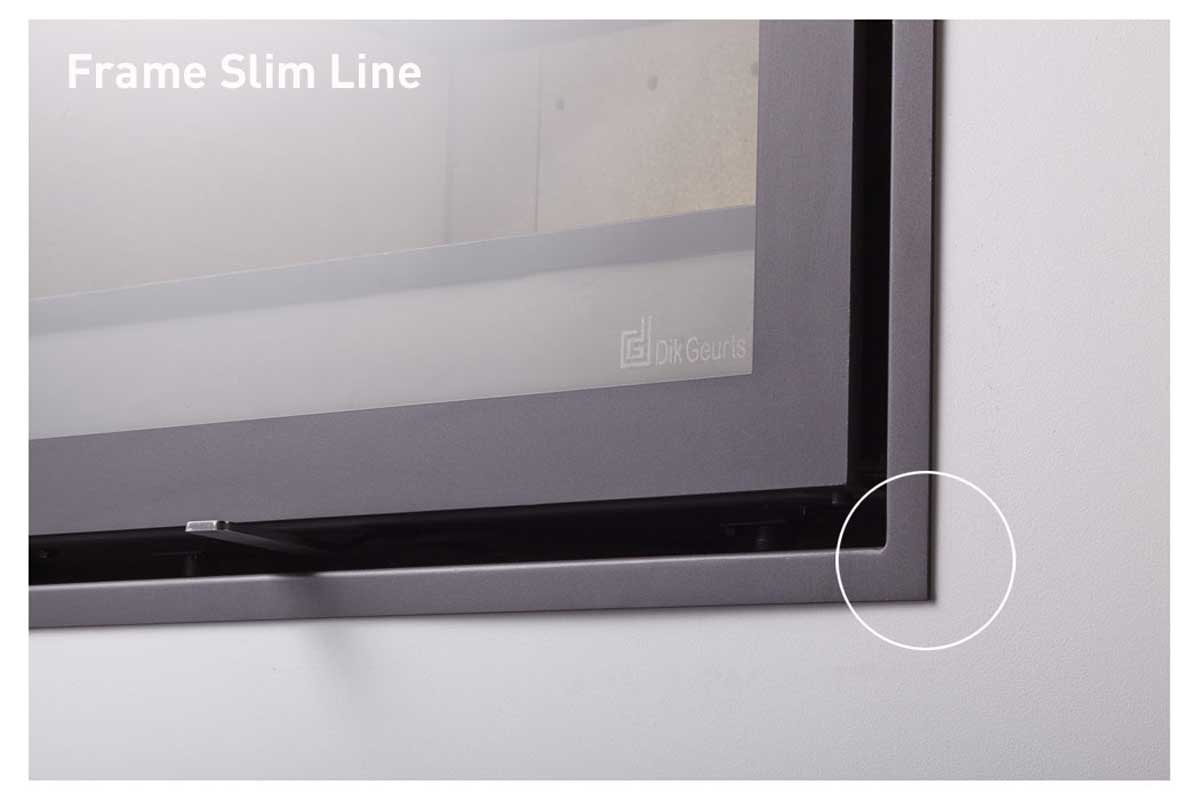

– Slim Line frame, 20 mm
– Classic Line 4S frame, custom-made (upon request)
Important note: Before purchasing, please speak to your local district chimney sweep and obtain authorisation from them to operate the desired stove.
Hersteller:
DRU Verwarming BV (Dik Geurts)
PO Box 1021
6921 RW Duiven
The Netherlands
H: www.drufire.com
Protective measures/safety instructions for installation (wood fires and stoves)
The following protective measures and safety instructions must be strictly observed:
- Fireplaces may only be installed in rooms and places where the location, structural circumstances and type of use do not present a hazard.
- No modifications may be made to the appliance.
- Only use the approved flue gas extraction/combustion air supply system.
- Work on the stove system Installation, commissioning, maintenance and servicing work on the appliance may only be carried out by an authorised specialist company
as the safety and functionality of the system depend on proper installation. - The installation must be carried out by an authorised specialist company, as the safety and functionality of the system depend on proper installation. You must observe the applicable trade regulations and building regulations.
- Fireplaces must be installed in an operationally safe and fireproof manner so that hazards and unreasonable nuisances cannot occur. They must be fit for purpose for a reasonable period of time.
The appliance is designed to create a cosy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance if children, the elderly or physically disabled persons are in the same room as the appliance. If vulnerable persons may regularly be present in the room without supervision, a fixed screen must be fitted around the appliance.
