Dik Geurts Stove Odin Front Wall

Dik Geurts - Odin Front Wall

‘Odin by Dik Geurts - round designer fireplace for a fascinating play of flames. Perfect combination of simplicity, efficiency & beauty. Discover it now!’

The Dik Geurts brand has always stood for craftsmanship, design and authentic wood fires. Since its foundation, the company has established itself as a permanent fixture in the world of fireplaces. With the integration into the innovative company DRU Verwarming B.V. in 2007, Dik Geurts was able to benefit from DRU's centuries of expertise and quality standards.

At Dik Geurts, we are not only designers, but also passionate advocates of the traditional wood fire. At our company in Duiven, the Netherlands, we are dedicated to developing fireplaces that impress with their quality and ease of use.

Dik Geurts stoves: the combination of simplicity, experience and technical expertise results in beautiful fireplaces - with flames that radiate true splendour.

Special features of Dik Geurts fireplaces

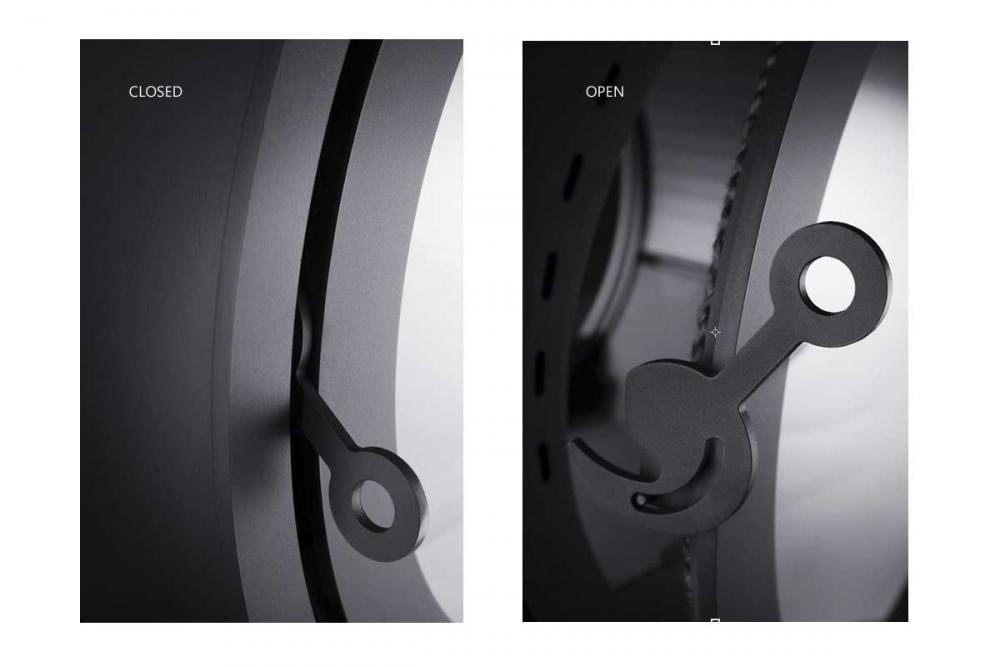

Unique air slide with three settings
The characteristic Dik Geurts air slide enables simple and precise operation of your fireplace:

• Primary ventilation for fast and reliable lighting.
• Secondary ventilation ensures complete combustion of unburnt gases.
• Disc ventilation keeps the glass clean at all times and ensures a clear view of the flames.

Inner lining made of moulded vermiculite
The special inner lining of the Vidar is made of high-quality vermiculite. This material is characterised by excellent heat reflection and offers numerous advantages: Rapid heating of the smoke channel.

• More heat directly in the combustion chamber.
• Clean combustion with a high degree of efficiency that fulfils even the strictest emission requirements.
• For a beautiful contrast to the yellow flames, the vermiculite in the combustion chamber of our designer stoves is dark anthracite.

Outside air connection for optimum efficiency
All Dik Geurts fireplaces offer the option of an outside air connection. This means that the air in the living room remains untouched, which is ideal for well-insulated homes. This system is efficient, clean and environmentally friendly, but not DIBt-certified.

Dik Geurts combines technological sophistication with an eye for sustainable and comfortable solutions to create fireplaces that impress in every respect.

With the Odin, you get a wood-burning stove that impresses with both its technical features and its aesthetics, transforming any room into a cosy home.

Technical data

• Brand: Dik Geurts
• Energy efficiency class:
• Nominal heat output (kW): 6.7
• Net output min.-max. (kW): 4.0-8.0
• Efficiency in (%): 75.2
• Model: wall mounted
• Fire view: Front 1 sided
• Fuel: Wood
• Combustion system: Closed combustion, room air dependent.
• Glass version: standard glass
• Door design: Hinged door on right side
• Operation: Manual
• Colour: Dark anthracite
• Material: Steel
• Interior: Vermiculite
• Width x height x depth (mm): 606 x 606 x 415 (without tube)
• Weight (kg): 100 (without tube)
• Top/rear smoke outlet (mm): 150
• Outside air connection at bottom (mm): 80
• Certifications: EN13240, Flamme Verte, BlmSchV 1+2, Defra, EcoDesign

Scope of delivery:

• Wall mounting kit Incl. protective plate (beam guard) and tube
• Flue gas outlet conical flue gas outlet Ø 150 mm

Options:

Fireplaces with outside air connection - for modern, well-insulated houses

In today's well-insulated houses with often integrated ventilation systems, it is crucial to consider the supply air for combustion. Fireplaces with an outside air connection offer the perfect solution for this:

Supply air from outside
Connecting to an external air supply prevents air from being extracted from the living space. This ensures efficient combustion and a pleasant room climate.

Suitable for passive houses
The RLU fireplaces (room air-independent) are specially designed for passive houses. They are characterised by a high level of tightness and are comprehensively tested. With a certificate, they guarantee optimum heating behaviour and a balanced room climate.

Note on certification
The RLU versions are not certified according to DIBt (German Institute for Building Technology). Nevertheless, they offer an excellent solution for modern living spaces with high standards of efficiency and environmental friendliness.

With a fireplace with an external air connection, you can enjoy the cosiness of a wood fire without compromising the indoor air quality - ideal for the requirements of modern construction methods.

Important note: Before purchasing, please speak to your local district chimney sweep and obtain authorisation from them to operate the desired stove.
