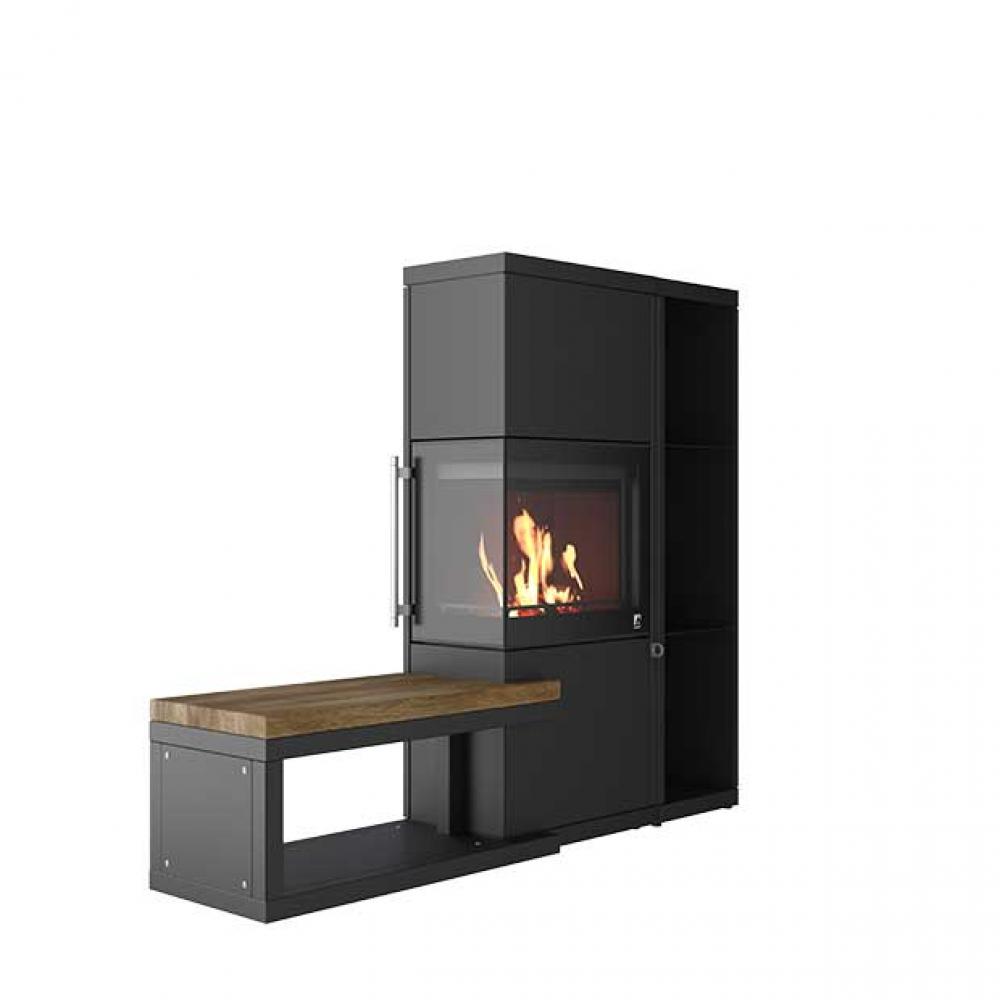

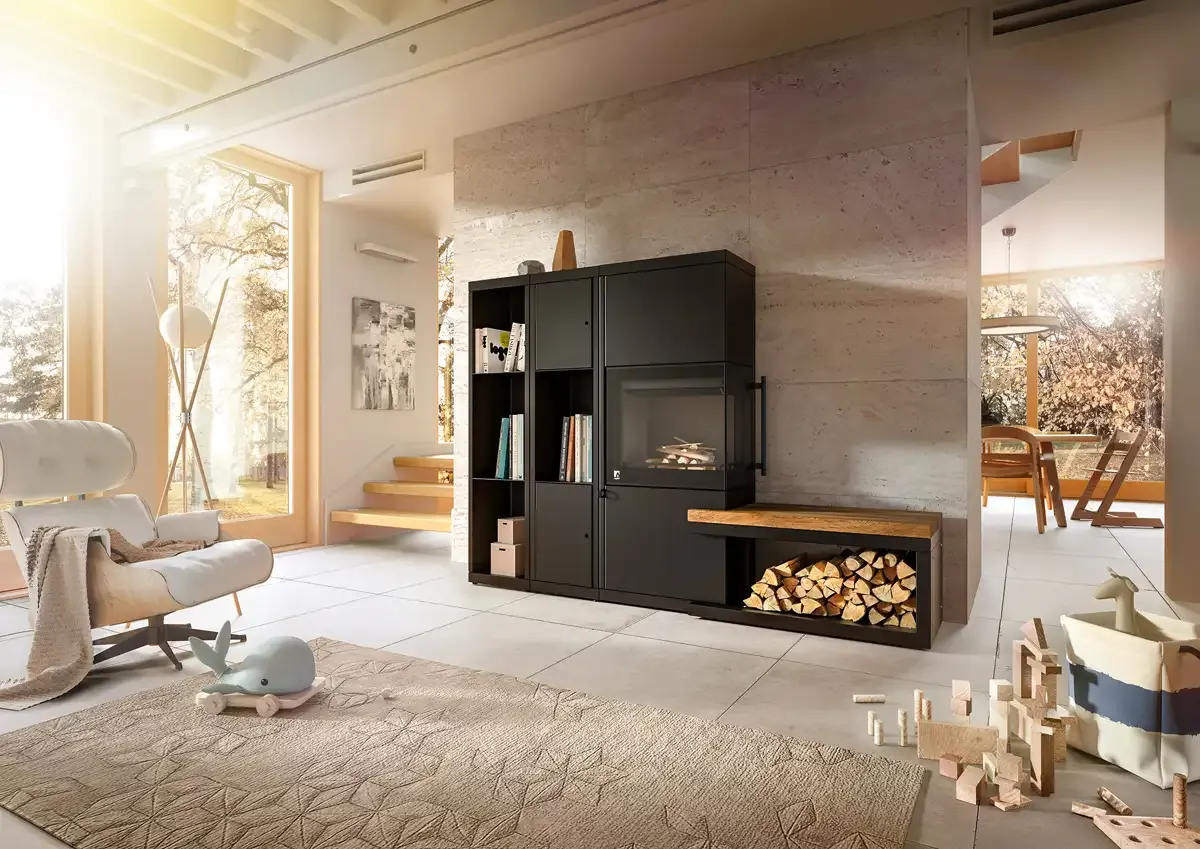

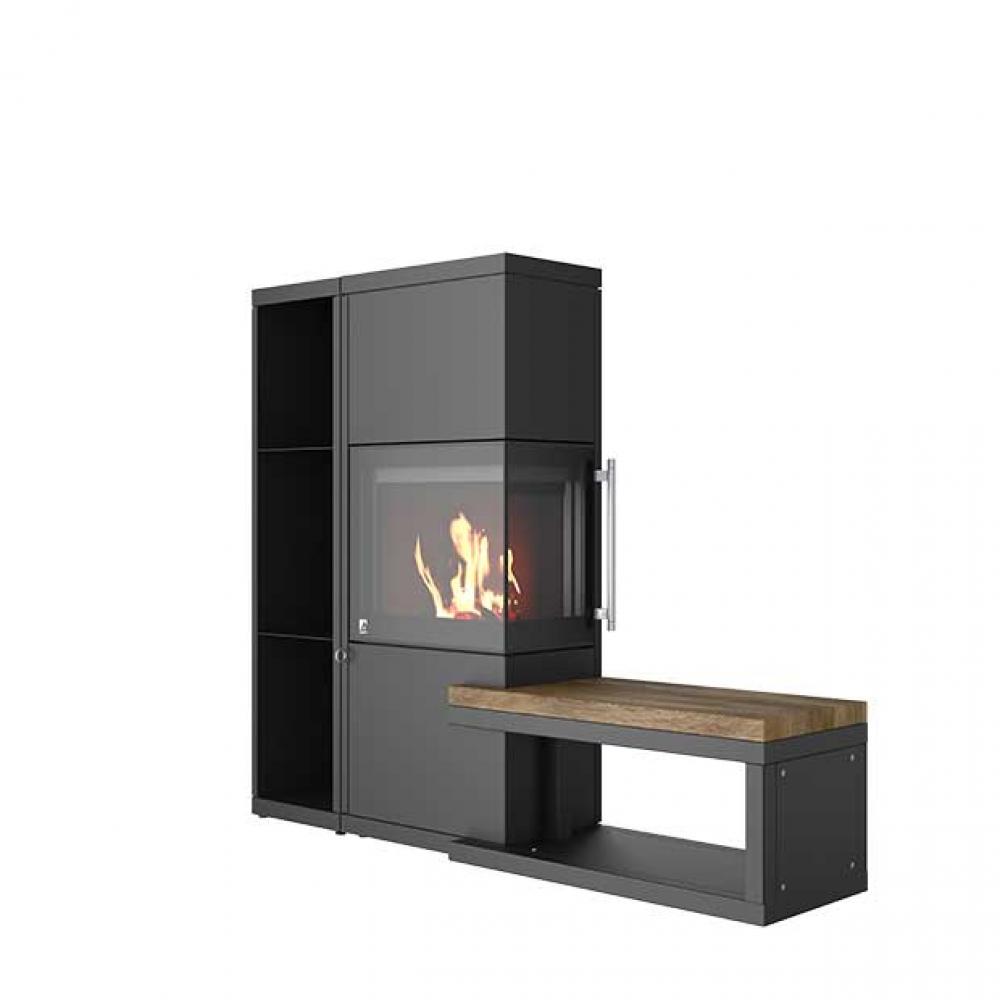

Drooff Stove LIVERA PANORAMA L
Drooff Stove LIVERA PANORAMA L
This stove meets the current 2nd stage of the BImSchV and can of course be operated beyond 2024, with no time limit!A DROOFF stove not only offers you cozy flames, relaxing warmth and the unique feeling of being at home. With a DROOFF stove you are making an active contribution to climate protection and taking responsibility for future generations. We do not see our stoves as classic heating devices, but as stylish climate protection devices. Discover our collection!
Heating with wood - especially with the latest combustion technology - is an important contribution to environmental and climate protection. The DROOFF stoves fall well below all the strict limit values of the 1st BImSchV. In addition, the already excellent emission values are reduced by another approx. 30% with the innovative fire+ combustion control. That should actually be enough to meet all requirements and demands - right?
Description
Efficiency: > 75%
Output (NWL): 5.0 or 8.0 kW
Independent of room air: EN 16510 certified (optional)
Door lock: self-locking (A1)
Fuels: logs, wood briquettes
Paint: black lacquered steel or with cladding ArtBeton Pure
Triple values/fuels:
- Nominal heat output kW: 5.0 or 8.0
- Room heat output kW: 5.0 or 8.0
- Water heat output kW: -
- Exhaust gas mass flow g/s: 6.38 / 7.30
- Average exhaust gas outlet temperature °C: 245 / 304
- Indirect heating function: -
- Minimum delivery pressure Pa: 12
- Combustion air requirement m³/h: 17.61 / 20.02
- Approved fuels: wood, hardwood briquettes
Primary and secondary air: (one-hand control)
Connection exchange nozzle Ø 150 mm: top, rear
Outside air/fresh air Ø 100 mm: rear, bottom
Multiple occupancy: RLA
Two-piece corner panel made of printed SCHOTT ROBAX® glass ceramic
Door hinge can be selected right or left
Add-on parts such as bench or wooden shelf optionally available
Dimensions/weight
Height: 1570 mm
Width: 620 mm
Depth: 392 mm
Firebox height | width | depth (mm): 410 | 465 | 230
Weight in kg, approx.: 163
Tests / approvals
EN 13240:2005-10: yes
BImSchV 2nd stage: yes
Ecodesign (EU) 2015/1185: yes
Test reports: DBI F 20/04/0745
Test laboratory: DBI-Gastechnologisches Institut gGmbH Freiberg
Energy efficiency class: A+
Efficiency %: > 75
Energy efficiency index (EEI): < 107.0
Optional accessories
- fire+ combustion control Light or Standard (optional and recommended: factory-fitted) 1*, 2*
- fire+ puck remote control with room temperature control
- Stainless steel controls
- Metal handle with birch bark
- DROOFFolith heat accumulator, 1 block of 12 pc.
1*: in combination with the fire+ combustion control, cannot be connected downwards to the outside air!
2*: Light: WITHOUT draught sensor, data logging and remote access / Standard: WITH draught sensor, data logging and remote access
Shipping conditions
Delivery is only possible within Germany.Other countries only on request; pick up is also possible!
Shipping costs (including statutory VAT)
Deliveries within Germany:
We calculate the shipping costs based on the order value (gross goods value):
up to a goods value of 99.99 EUR = 6.90 EUR
free shipping within Germany from a goods value of 100 EUR
Manufacturer: Drooff Kaminöfen GmbH & Co. KG
Keffelker Straße 40
59929 Brilon - Germany
Phone.: +49 2961 9668 - 0
info(at)drooff-kaminofen.de
Protective measures/safety instructions for installation (wood fires and stoves)
The following protective measures and safety instructions must be strictly observed:
- Fireplaces may only be installed in rooms and in places where the location, structural circumstances and type of use do not present any hazards.
- No modifications may be made to the appliance.
- Only use the approved system for exhaust gas removal/combustion air supply.
- Work on the stove system Installation, commissioning, maintenance and servicing work on the appliance may only be carried out by an authorized specialist company.
as the safety and functionality of the system depend on proper installation. - The installation must be carried out by a registered specialist company, as the safety and functionality of the system depend on proper installation. You must observe the applicable trade regulations and building regulations.
- Fireplaces must be installed in an operationally safe and fireproof manner so that hazards and unreasonable nuisances cannot occur. They must be fit for purpose for a reasonable period of time.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
