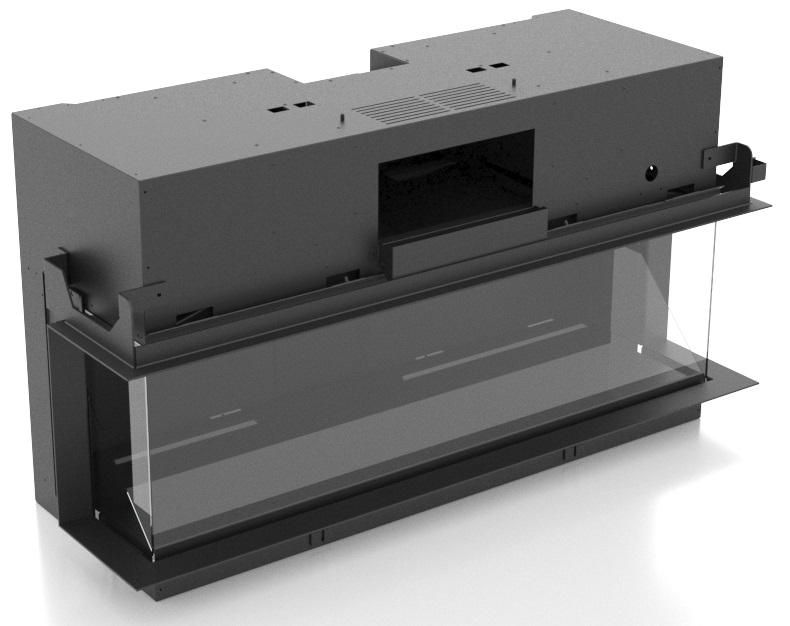

DRU VIRTUO 130/3 EVOLVE
DRU VIRTUO 130/3 EVOLVE
The Virtuo Evolve electric fireplace represents the future of the fireplace experience, combining state-of-the-art technology with eco-friendliness and stylish design.Here are its outstanding features:
Why the Virtuo Evolve is the fireplace of the future:
Ultra-realistic flame image: with lifelike logs and a deceptively real 3D flame projection, the fireplace provides an experience that is every bit as good as a real fire.
Sustainable and emission-free: With no combustion, exhaust fumes or emissions, the Virtuo Evolve is an environmentally friendly alternative, ideal for eco-conscious households.
Cosy atmosphere: The pleasant warmth and authentic crackling create an atmospheric setting for relaxing evenings.
Simple installation and operation: Plug & play system: the fireplace does not require a chimney or complex installations. A simple socket is all you need to set it up anywhere in the house.
Flexibility: Whether living room, bedroom or office - the Virtuo Evolve adapts effortlessly to any room.
Advantages:
Future-proof and modern: Thanks to its emission-free technology, the Virtuo Evolve is perfect for modern living standards.
Maintenance-free: No wood, no soot, no ash - just relax and enjoy the fire.
Powerful and atmospheric: combination of warmth, realistic look and authentic sound for an all-round successful fireplace ambience.
With the Virtuo Evolve electric fireplace, you can bring a real fire experience into your home without the disadvantages of conventional fireplaces. It is the perfect choice for anyone who wants to combine comfort, sustainability and elegance.
Description:
- Manufacturer: DRU (by Spartherm)
- Model: Built-in
- Fire view: Front 3-sided
- Glass window: Standard glass, optional anti-reflective glass (Clear View)
- Door: fixed door
- Operation: Remote control, smartphone/tablet via app
- Eco Glow: yes
- Switchable heating: 1000 or 2000 W
- Thermostat: yes
- Colours: Black
- Material: Steel
- Interior: Rib cast
- Burner bed: Brown logs
- Net output min. (kW): 0
- Net power max. (kW): 2
- Installation depth (mm): 510
- Fire viewing width (mm): 1300
- Fire viewing height (mm): 324
- Weight (kg): 148
- 230V required
Lifelike fireplace:
Naturally designed base: The fireplace floor is covered with realistic looking coals, chips and embers for an authentic fireplace look.
Detailed log set: Together with the carefully designed logs, the fireplace looks deceptively real.
Eco Glow technology: The burner bed is illuminated by this innovative technology, creating a lively glow that creates the perfect illusion of a real fire.
Personalised fire experiences:
Individual control: adjust flames, light intensity, frequency and the colours of the ember bed to create your desired atmosphere.
Evolve Flame and Virtuo Flame technology: The projection technology specially developed by DRU creates flame images that are indistinguishable from real fire.
Advantages and special features:
Realistic flame projection: thanks to the innovative technology, the flames look extremely detailed and create an intense fire experience.
Flexibility and convenience: The settings are easy to control, so you can create your own personalised fire ambience at any time.
Easy to clean and safe: No smoke, no ash and no risk of fire make the Virtuo electric fireplace a maintenance-free and safe solution.
Downloads
Catalog
Drawing / Maßblatt
Installation Guide
Catalog Drawing / Maßblatt Installation Guide
Manufacturer: Spartherm Feuerungstechnik GmbH
Maschweg 38
D-49324 Melle
Tel.: +49 5422 9441-0
www.spartherm.com
Maschweg 38
D-49324 Melle
Tel.: +49 5422 9441-0
www.spartherm.com
Protective measures/safety instructions during installation
The following protective measures and safety instructions must be strictly observed:
- Installation and maintenance of the appliance may only be carried out by a recognized and competent installer in the field of gas heating and electricity.
- No modifications may be made to the appliance.
- Only use the flue gas extraction/combustion air supply system supplied by DRU.
- Procedure for installing a freestanding appliance: place the appliance at the specified minimum distance from the rear wall (see the information later in this text).
- Do not cover the appliance or wrap it in an insulating blanket or other materials. Ensure that there are no flammable objects and/or materials in the radiation area of the appliance. This radiation range is 500 mm, unless otherwise specified.
- Only use the set included in the scope of delivery, for example the wooden block set or the pebble set, and place it exactly as described.
- Leave the space around the ionizing pin and the ignition pin free and never place any incandescent material around these pins.
- Make sure that the gas pipes and connections are clean and free of any impurities. Install a gas tap in accordance with the applicable regulations.
- Check the entire system for gas leaks before commissioning.
- Make sure that the pressure equalization hatch(es) on the top and/or bottom of the appliance are not blocked and check that these hatch(es) are well connected to the sealing surface before installing the appliance.
- Do not ignite the appliance until it has been fully installed in terms of gas technology, exhaust technology and electrical technology; first go through the procedure described in chapter 7.3 of the instructions.
- Do not use the appliance if a pane is broken and/or cracked. The pane must be replaced first.
Procedure for installing a built-in appliance:
- Use fireproof and heat-resistant materials for the fireplace surround, including the top of the fireplace surround and the material inside the fireplace surround, such as the floor under the appliance and the rear wall in front of which the appliance is installed. Both panel materials and stone-like materials can be used for this purpose.
- Take appropriate protective measures to ensure that the wall behind the fireplace surround and the materials or objects located behind the rear wall do not heat up too much.
- Observe the minimum specifications regarding the internal dimensions of the fireplace surround. These have been specified for safety reasons and to avoid extreme heat build-up in the fireplace conversion.
- Ventilate the fireplace conversion using ventilation openings (see instructions). These openings are crucial for safety and to prevent extreme heat build-up in the fireplace conversion.
- The electrical connections must be heat-resistant.
- Position the heat-resistant power connections away from the appliance and as low as possible in the fireplace surround.
- This applies in connection with the temperature development in the fireplace surround.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance if children, the elderly or the physically disabled are in the same room as the appliance. If vulnerable persons may regularly be present in the room without supervision, a fixed screen must be fitted around the appliance.
