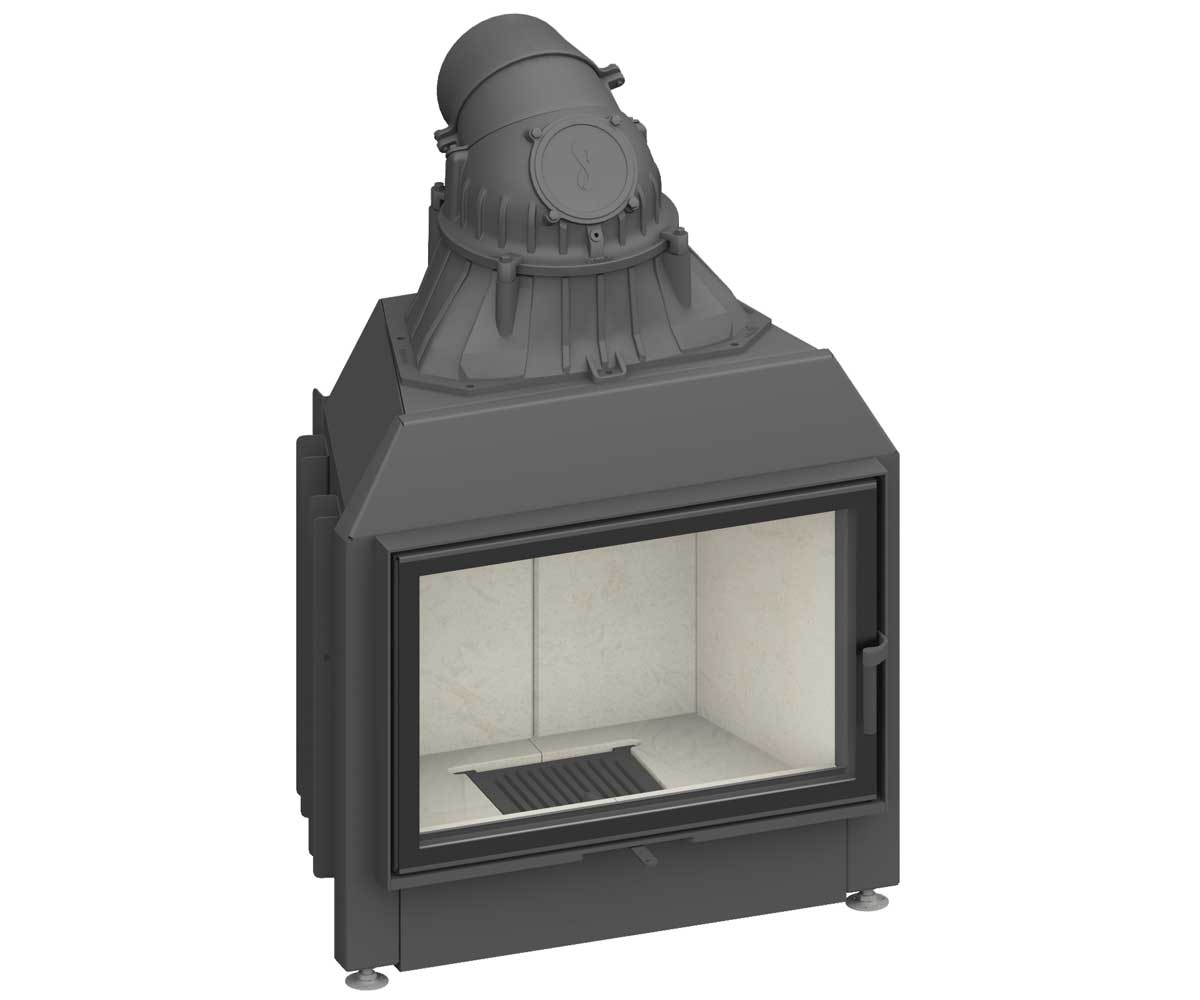

Camina-Schmid Lina 73s
Single-sided fireplace inserts
Lina fireplaces represent the traditional way of heating and combine this with elegance in equal measure. With a variety of different sizes, it is possible to give free rein to individual design.
Immerse yourself in the variety of high-quality fireplace inserts from Camina-Schmid. Create a warm and stylish ambience with a fireplace insert from Camina-Schmid that will enhance your living space in a special way. From modern designs to classic versions, Camina-Schmid offers you a wide range of options.
wide range of options. Let yourself be inspired by the large selection.
Wood - a step towards independence
In contrast to the fossil fuels oil and gas, wood is a regenerative raw material. Fireplaces are therefore an ideal complement to preferred heat sources such as heat pumps and solar thermal systems for self-sufficient heating. Wood is also considered CO2-neutral. During combustion, only the exact amount of carbon dioxide is released that the tree has absorbed in the course of its growth.
Sustainable forestry, which is prescribed by law in Germany and practised across the entire forest area, in which no more wood is felled than grows back, is combined with the climate-friendly CO2 neutrality of the fuel and the creation and safeguarding of jobs in the timber industry, in industry and in the skilled trades.
Description
- Manufacturer: CAMINA-SCHMID
- Energy efficiency class:
- Nominal heat output 9 kW
- Heat output range 3.2 - 10.9 kW
- Efficiency >78 %
- Model: Built-in
- Fire view: 1-sided
- Fuel: Logs
- Combustion system: Closed combustion, dependent on room air
- Glass version: Standard glass
- Design Door: hinged, door hinge optionally left or right
- Standard version: Kristall*
- Door heights: 10051 - height 51 cm, 10057 - height 57 cm
- Flue pipe connection diameter 200 mm
- Combustion air connection Ø 150 mm
- Recommended log length 33 cm
- Weight 230 - 260 kg
- Heat output: 35 % via the viewing window
- Heat output: convective output 65 %
- Standard inner lining: smooth white fireclay
- High-quality cast iron dome, all parts movable, adjustable from 0 - 90°
- Certifications: BImSCHV. 2nd stage. EFA
- Operation possible with type A1: yes (self closing)
- Operation possible with type A: yes
Accessories:
- Hot air top coil
- Reheater box
- SMR multi-control
Optional:
- Double glazing
- Combustion air connection
- External firing
- Various outer frames
- BRS: Modular surround system, removable side and bottom panels
- Inner lining: anthracite fireclay or anthracite cast iron
*With the Kristall front version, the fire is framed by the glass ceramic printed on 4 sides and thus emphasised even more clearly.
Important note: Please speak to your local district chimney sweep for authorisation to install the planned fireplace before purchasing.
Shipping conditions
Delivery is only possible within Germany.Other countries only on request; pick up is also possible!
Shipping costs (including statutory VAT)
Deliveries within Germany:
We calculate the shipping costs based on the order value (gross goods value):
up to a goods value of 99.99 EUR = 6.90 EUR
free shipping within Germany from a goods value of 100 EUR
Download Data Sheet and Assembly Instructions
Download data sheet: click hereDownload assembly instructions: click here
Manufacturer: Camina & Schmid
Feuerdesign und Technik GmbH & Co. KG
Gewerbepark 18
49143 Bissendorf
Phone +49 5402 7010-10
Fax +49 5402 7010-70
www.camina-schmid.de
