Fireplace-Cassette HKEL left Corner from Camina-Schmid
Fireplace cassettes for retrofitting and replacing
With Camina-Schmid's advanced technology, various installation depths and a precise selection of options and surrounds, retrofitting has never been so easy.

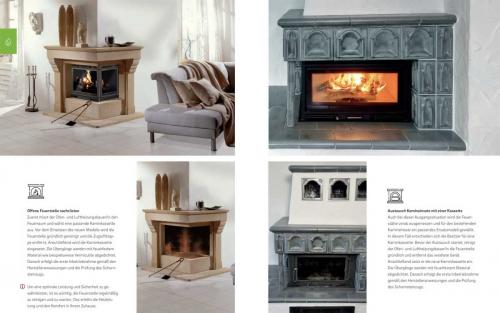

Retrofitting an open fireplace
The use of a fireplace cassette in an open fireplace increases efficiency and safety many times over.
Replacing an old appliance
If the existing cassette no longer meets the requirements, replacing it with a new model is the best solution.
Customized dimensions
Does your fireplace have special dimensions? We manufacture our fireplace cassettes or our fireplace cassette pro to measure.
Fireplace cassette
Our standard models are both simple and classic. They are the ideal alternative to a completely new installation.
The right product for every installation situation
You can choose between seven different versions of our fireplace cassettes. Whether as a 1, 2 or 3-sided version, as round glass or in a curved shape - we have the right model for every taste.
Description HKEL:
2 sided pane shape with bar
Heat output from 6.5 - 15 kW
available from a width of 501 - 1,300 mm (smaller than 501 mm only on request)
Door hinge left or right
With ash grate and ash pan
Rear and side walls and firebox floor fireclay
Including 4 adjustable feet
Special height from 500 mm surcharge per 100 mm or part thereof
Special depth from 500 mm surcharge per 50 mm or part thereof
Please request other dimensions by clicking on “Question about product”.
Options with surcharge:
- Vertical slats available in black, brass and stainless steel.
- Cross bar slats available in black, brass and stainless steel (pro version only).
- Tapered cassette, sloping at the back.
- 2-leaf version, generally for front widths from ≥ 800 mm.
- Flue gas connection, fixed for screwing on.
- Flue gas collector, fixed for screwing on.
- Plug-in panel, each side (black, stainless steel or brass)
- Anthracite interior lining
- Base frame with adjustable height
- Installation material
- Convection fan with speed controller, connection cable and plug (pre-assembled at the factory)
- Special colour platinum or nickel
Retrofitting an open fireplace
First measure the firebox and select a suitable fireplace cassette. Before inserting the new model, clean the fireplace thoroughly and remove the draught flap. The fireplace cassette is then inserted. The transitions are sealed with refractory material such as vermiculite.
The first start-up is then carried out in accordance with the manufacturer's instructions and the chimney draught is tested. Please obtain approval from the chimney sweep before purchasing!
Manufacturer: Camina & Schmid
Feuerdesign und Technik GmbH & Co. KG
Gewerbepark 18
49143 Bissendorf
Phone +49 5402 7010-10
Fax +49 5402 7010-70
www.camina-schmid.de
Protective measures/safety instructions for installation (wood fires and stoves)
The following protective measures and safety instructions must be strictly observed:
- Fireplaces may only be installed in rooms and in places where the location, structural circumstances and type of use do not present any hazards.
- No modifications may be made to the appliance.
- Only use the approved system for exhaust gas removal/combustion air supply.
- Work on the stove system Installation, commissioning, maintenance and servicing work on the appliance may only be carried out by an authorized specialist company.
as the safety and functionality of the system depend on proper installation. - The installation must be carried out by a registered specialist company, as the safety and functionality of the system depend on proper installation. You must observe the applicable trade regulations and building regulations.
- Fireplaces must be installed in an operationally safe and fireproof manner so that hazards and unreasonable nuisances cannot occur. They must be fit for purpose for a reasonable period of time.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
Protective measures/safety instructions for installing gas fireplaces
The following protective measures and safety instructions must be strictly observed:
- Installation and maintenance of the appliance may only be carried out by a recognized and competent installer in the field of gas heating and electricity.
- No modifications may be made to the appliance.
- Only use the approved flue gas extraction/combustion air supply system.
- Procedure when installing a free-standing appliance: place the appliance at the specified minimum distance from the rear wall (see information in the instructions).
- Do not cover the appliance or wrap it in an insulating blanket or other materials. Ensure that there are no flammable objects and/or materials in the radiation area of the appliance. This radiation range is 500 mm, unless otherwise specified.
- Only use the set included in the scope of delivery, for example the wooden block set or the pebble set, and place it exactly as described.
- Leave the space around the ionizing pin and the ignition pin free and never place any incandescent material around these pins.
- Make sure that the gas pipes and connections are clean and free of any impurities. Install a gas tap in accordance with the applicable regulations.
- Check the entire system for gas leaks before commissioning.
- Check the entire system for gas leaks before commissioning.
- Ensure that the pressure equalization hatch(es) at the top and/or bottom of the appliance are not blocked and check that these hatch(es) are well connected to the sealing surface before installing the appliance.
- Do not ignite the appliance until it has been fully installed in terms of gas technology, exhaust technology and electrical technology.
- Do not use the appliance if a pane is broken and/or cracked. The pane must be replaced first.
How to install a built-in appliance:
- Use fireproof and heat-resistant materials for the fireplace surround, including the top of the fireplace surround and the material inside the fireplace surround, such as the floor under the appliance and the rear wall in front of which the appliance is installed. Both panel materials and stone-like materials can be used for this purpose.
- Take appropriate protective measures to ensure that the wall behind the fireplace surround and the materials or objects located behind the rear wall do not heat up too much.
- Observe the minimum specifications regarding the internal dimensions of the fireplace surround. These have been specified for safety reasons and to avoid extreme heat build-up in the fireplace conversion.
- Ventilate the fireplace conversion using ventilation openings. These openings are crucial for safety and to prevent extreme heat build-up in the fireplace conversion.
- The electrical connections must be heat-resistant.
- Position the heat-resistant power connections away from the appliance and as low as possible in the fireplace surround.
- This applies in connection with the temperature development in the fireplace surround.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
