Fireplace-Cassette NEO LINE 650 from Camina-Schmid
Camina & Schmid Neo Line 650 fireplace insert – efficient fireplace insert for open fireplaces or new construction
Transform your open fireplace into a powerful, clean, and efficient heater with a Camina & Schmid fireplace insert. State-of-the-art technology, high-quality materials, and flexible dimensions make these inserts the ideal solution for increased thermal comfort and reduced emissions.

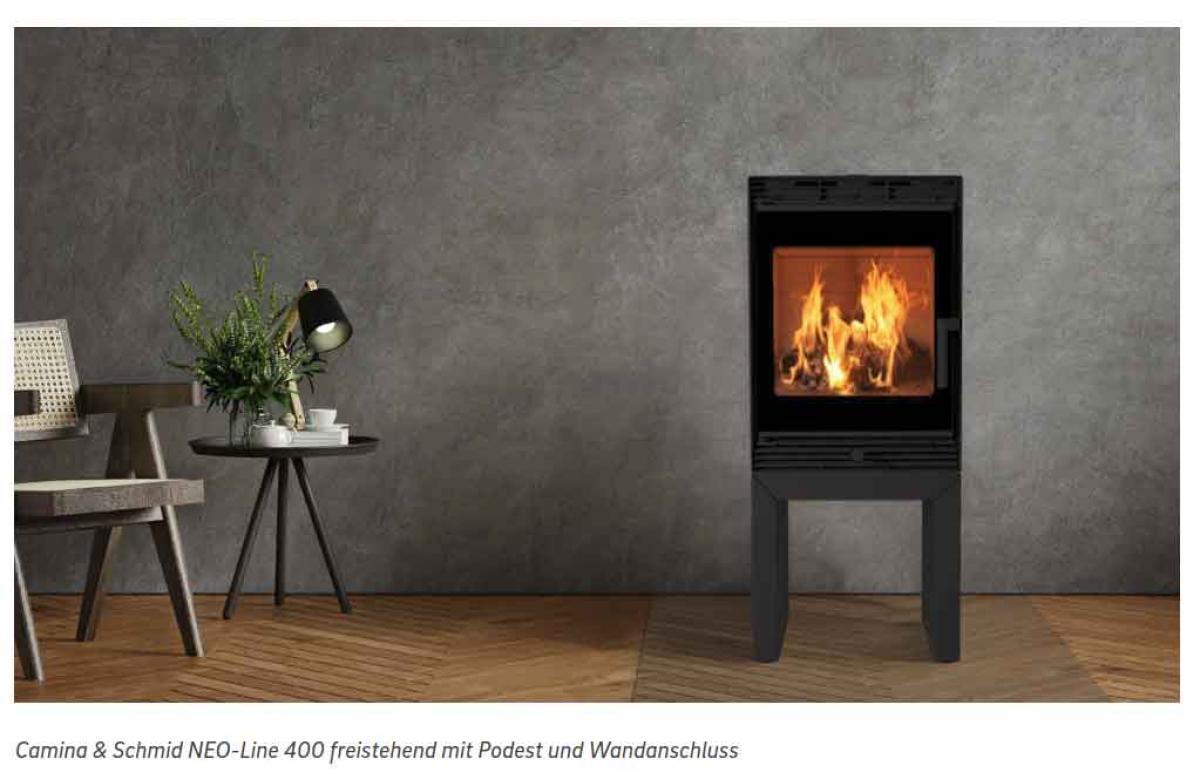

NEO-Line freestanding option available!
The NEO-Line 400, 550, 650, 850, and 1000 cassettes are tested according to EN 16510 and can be used as freestanding units. Matching pedestals are available as accessories.
Technical specifications NEO LINE 650:
- Nominal heat output: 5.9 kW
- Efficiency: >80%
- Insulation thickness (for walls not requiring protection, according to TROL 2022, reference insulation material): 80 mm
- Insulation thickness (for combustible components, according to TROL 2022): WDS 2 - WDS 4 H
- Vermiculite lining
- Exhaust nozzle (top or rear): Ø 150 mm
- Combustion air nozzle: Ø 125 mm (rear/bottom)
- Adjustable feet through the combustion chamber
- Exhaust outlet adjustable through the combustion chamber
- Recommended log length: 33 cm
- Weight: 100 kg
- Heat output through the viewing window: 30%
- Convective heat output: 70%
- Recommended free cross-section: supply air 991 cm² / recirculation air 826 cm²
- Hinged door, self-closing
- Door hinged on the left (reversible)
Data for chimney sweeps according to DIN EN 13384 (Closed operation)
Triple values at NWL:
• Flue gas mass flow rate 6.7 g/s
• Flue gas temperature 204 °C
• Required discharge pressure 12 Pa
Options available at extra cost: Convection fan with speed controller, connection cable, and plug, pre-assembled at the factory, frames
Retrofitting an open fireplace
First, measure the firebox and select a suitable fireplace cassette. Before installing the new model, thoroughly clean the fireplace and remove the draft damper. Then, install the fireplace cassette. Seal the transitions with fireproof material such as vermiculite.
Afterward, initial commissioning follows according to the manufacturer's instructions and the chimney draft is checked. Please obtain approval from a chimney sweep before purchasing!
Manufacturer: Camina & Schmid
Feuerdesign und Technik GmbH & Co. KG
Gewerbepark 18
49143 Bissendorf
Phone +49 5402 7010-10
Fax +49 5402 7010-70
www.camina-schmid.de
Protective measures/safety instructions for installation (wood fires and stoves)
The following protective measures and safety instructions must be strictly observed:
- Fireplaces may only be installed in rooms and in places where the location, structural circumstances and type of use do not present any hazards.
- No modifications may be made to the appliance.
- Only use the approved system for exhaust gas removal/combustion air supply.
- Work on the stove system Installation, commissioning, maintenance and servicing work on the appliance may only be carried out by an authorized specialist company.
as the safety and functionality of the system depend on proper installation. - The installation must be carried out by a registered specialist company, as the safety and functionality of the system depend on proper installation. You must observe the applicable trade regulations and building regulations.
- Fireplaces must be installed in an operationally safe and fireproof manner so that hazards and unreasonable nuisances cannot occur. They must be fit for purpose for a reasonable period of time.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
Protective measures/safety instructions for installing gas fireplaces
The following protective measures and safety instructions must be strictly observed:
- Installation and maintenance of the appliance may only be carried out by a recognized and competent installer in the field of gas heating and electricity.
- No modifications may be made to the appliance.
- Only use the approved flue gas extraction/combustion air supply system.
- Procedure when installing a free-standing appliance: place the appliance at the specified minimum distance from the rear wall (see information in the instructions).
- Do not cover the appliance or wrap it in an insulating blanket or other materials. Ensure that there are no flammable objects and/or materials in the radiation area of the appliance. This radiation range is 500 mm, unless otherwise specified.
- Only use the set included in the scope of delivery, for example the wooden block set or the pebble set, and place it exactly as described.
- Leave the space around the ionizing pin and the ignition pin free and never place any incandescent material around these pins.
- Make sure that the gas pipes and connections are clean and free of any impurities. Install a gas tap in accordance with the applicable regulations.
- Check the entire system for gas leaks before commissioning.
- Check the entire system for gas leaks before commissioning.
- Ensure that the pressure equalization hatch(es) at the top and/or bottom of the appliance are not blocked and check that these hatch(es) are well connected to the sealing surface before installing the appliance.
- Do not ignite the appliance until it has been fully installed in terms of gas technology, exhaust technology and electrical technology.
- Do not use the appliance if a pane is broken and/or cracked. The pane must be replaced first.
How to install a built-in appliance:
- Use fireproof and heat-resistant materials for the fireplace surround, including the top of the fireplace surround and the material inside the fireplace surround, such as the floor under the appliance and the rear wall in front of which the appliance is installed. Both panel materials and stone-like materials can be used for this purpose.
- Take appropriate protective measures to ensure that the wall behind the fireplace surround and the materials or objects located behind the rear wall do not heat up too much.
- Observe the minimum specifications regarding the internal dimensions of the fireplace surround. These have been specified for safety reasons and to avoid extreme heat build-up in the fireplace conversion.
- Ventilate the fireplace conversion using ventilation openings. These openings are crucial for safety and to prevent extreme heat build-up in the fireplace conversion.
- The electrical connections must be heat-resistant.
- Position the heat-resistant power connections away from the appliance and as low as possible in the fireplace surround.
- This applies in connection with the temperature development in the fireplace surround.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
