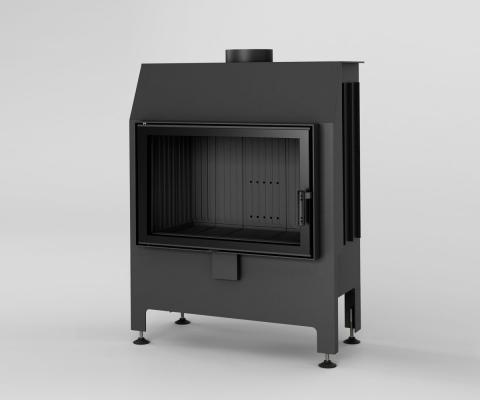

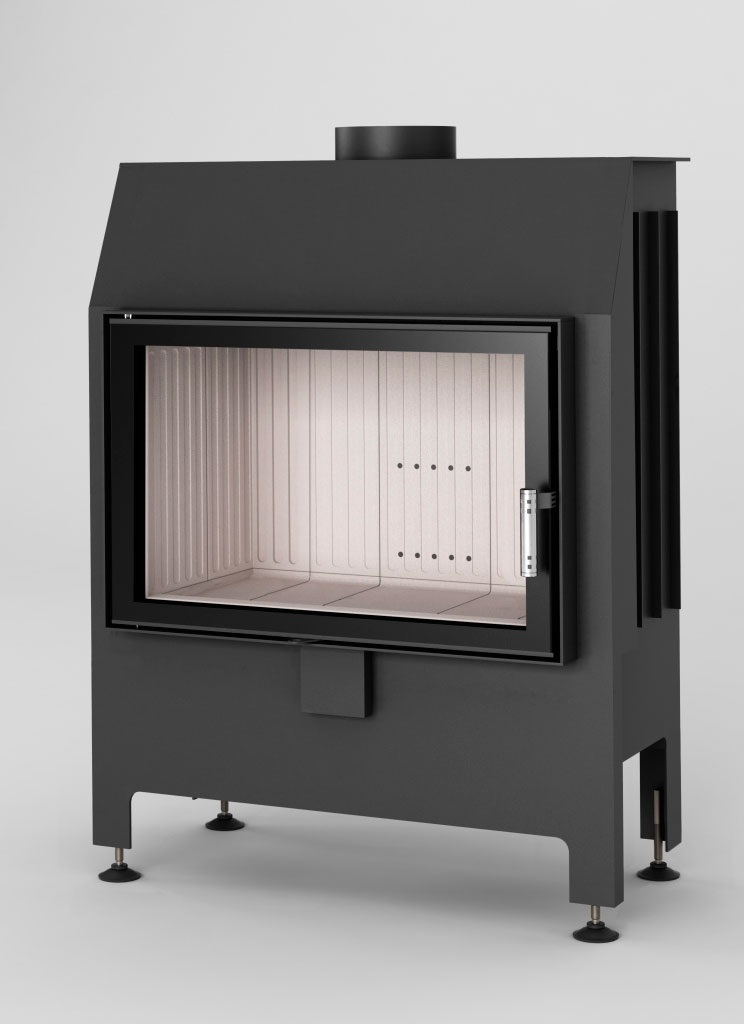

Hajduk Fireplace Heatro 69
Heatro 69 powered by Hajduk
Specifications:
- Door size: w690x, h450 mm
- Nominal power: 11 kW
- Heating range: 5-14 kW
- Average efficency: 83 %
- CO emission: 0.08 g/m3
- Dust emission: 0.02 g/m3
- Flue gas temperature: 255 degree C
- Exhaust outlet: 180 mm
- Air inlet: 125 mm
- Fuel type: logs
- Length of logs: 60 cm
- Construction: steel
- Weight: 144 kg
- Certifications: BImSchV1+2, EN 13229:2001
The firebox is equipped with a 3 cm thick black ceramic lining. The fireplace insert features a door with an ergonomic and ventilated stainless steel opening handle painted black and is built for long-term, trouble-free and economical use.
Fireproof ceramic glass panes up to 800° C.
Execution according to the European standard EN 13229 and the standard DIN 18895, which allow the sale of products of the HEATRO brand throughout Europe.
BENEFITS OF HEATRO FIREPLACE INSERTS:
- Quality steel body - high temperature resistance
- Double deflector system - high efficiency and low exhaust emissions
- the "clear optimal" system - efficient window cleaning
- Three-layer ventilation of the stove - ecological wood burning
- heat-resistant ceramic - better combustion thermals and heat storage
- Solid door with heat-resistant glass - safety of use
- cool grip - ergonomics and safety
- Stepless regulator - smooth control of combustion dynamics
- Height-adjustable feet - easy assembly and leveling of the insert
- rustless combustion - highly heated embers/less ash residue
- Door hinge freely selectable (right/left) - right door hinge only possible with silver stainless steel handle
Window flushing: Yes, clear view of the fire - air flow in front of the glass pane, which minimizes the contamination of the pane;
Heat storage capacity: no;
One-Regulator Control: Yes, the entire air supply to the stove is easily controlled via one regulator;
Continuous operation: 24 hour operation is possible
Combustion chamber made of 3 cm thick ceramic lining
Connection for external air supply - Can be connected as an option - With the external air supply, you can heat the stove with air from an adjoining room or from outside. This has a positive effect on the indoor climate, since no oxygen from the room is burned. The connection for the external air supply also enables the connection of an electronic combustion air control.
Ash grate and ash pan: No
Rustless combustion: the embers lie directly on the floor of the combustion chamber. The innovative combustion air heats up the embers and leads to almost complete combustion of the wood. This eliminates the hassle of emptying the ash pan.
Automatic combustion air control: no;
Air flows: primary air; secondary air;
Shipping conditions
Delivery is only possible within Germany.Other countries only on request; pick up is also possible!
Shipping costs (including statutory VAT)
Deliveries within Germany:
We calculate the shipping costs based on the order value (gross goods value):
up to a goods value of 99.99 EUR = 6.90 EUR
free shipping within Germany from a goods value of 100 EUR
Manufacturer: HAJDUK Kominki Agnieszka i Dariusz Nasińscy spółka z ograniczoną odpowiedzialnością sp.k.
ul. Kasprzaka 6F
66-400 Gorzów Wlkp.
Poland
Phone:+48 95 722 54 59
www.hajduk.com.pl
Protective measures/safety instructions for installation (wood fires and stoves)
The following protective measures and safety instructions must be strictly observed:
- Fireplaces may only be installed in rooms and in places where the location, structural circumstances and type of use do not present any hazards.
- No modifications may be made to the appliance.
- Only use the approved system for exhaust gas removal/combustion air supply.
- Work on the stove system Installation, commissioning, maintenance and servicing work on the appliance may only be carried out by an authorized specialist company.
as the safety and functionality of the system depend on proper installation. - The installation must be carried out by a registered specialist company, as the safety and functionality of the system depend on proper installation. You must observe the applicable trade regulations and building regulations.
- Fireplaces must be installed in an operationally safe and fireproof manner so that hazards and unreasonable nuisances cannot occur. They must be fit for purpose for a reasonable period of time.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
