Fireplace Kit Camina-Schmid S-13

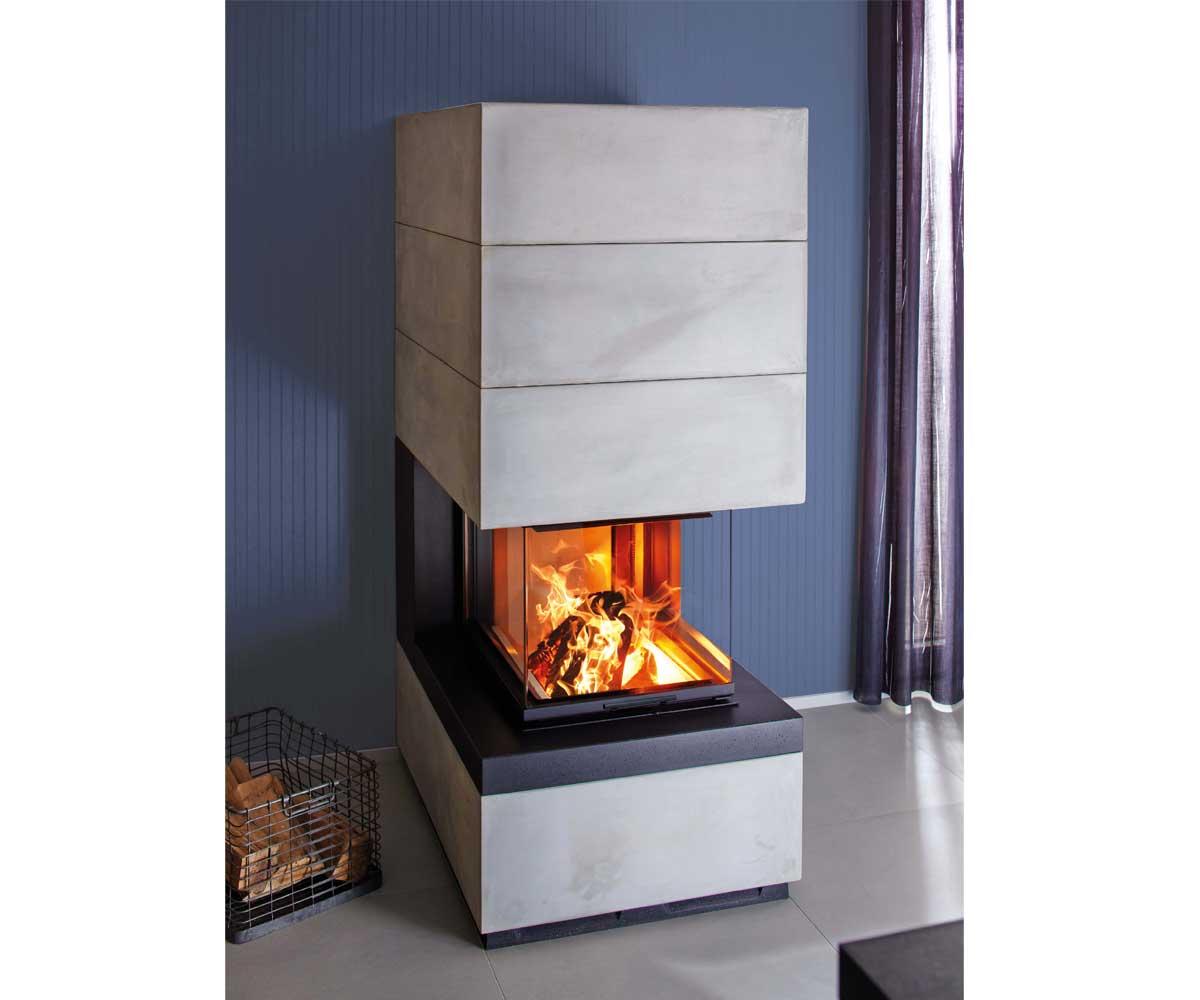

The storage system - a cosy fire and pleasant warmth for hours Camina & Schmid offers a unique variety of different system installations. Consisting of consisting of a reinforced cast compound that gently releases the heat from the fireplace, the system units are quick and easy to install and can be finished in any colour.
Concrete version
Please note that the system systems have a raw, purist concrete surface, which is truly unique due to its unique surface texture. Irregularities
or colour differences in the material cannot be avoided due to the production process. For this reason, a surface finish is provided for these systems. For a uniform, even surface with the typical characteristics of the concrete look, the concrete colour is included in the scope of delivery as standard. Alternatively, in co-operation with Brillux GmbH & Co. KG, we offer three other finishing techniques.
The design concrete version is an anthracite-coloured concrete, which is waxed, polished and thus sealed in the final treated surface. Water stains and signs of wear of any kind are almost completely repelled. The surface is therefore easy to maintain. A specific characteristic of this material is that it forms holes of different sizes in the surface. This is a special expression of designer concrete and contributes to its uniqueness.
The variety of natural stone
As the name suggests, natural stone is a product that has grown in the wild over millions of years and to which we can ‘only’ add the shape and finishing touches. Deviations in colour, structure and
and veining are therefore completely natural. This means that every system made from it is unique, which further emphasises the high value of this product.
Description:
- Manufacturer: Camina-Schmid
- Material: Cladding made of storage stone in concrete look
- System with ventilated rear wall: yes
- Dimensions: W 900, H 1890, D 816 mm
- Dimensions with bench: W 1019 x H 1840 x D 876 mm
- Connection height from top edge of finished floor: 1396 mm
- Incl. fireplace insert Ekko U 67(45)51 s
- Weight incl. fireplace insert: approx. 650 kg
Info fireplace insert:
Fireplace insert: Ekko U 67(45)51 s with hinged door
Nominal heat output: 9 kW
Flue gas connection: Ø 200 mm
Further technical information in TAB ‘Downloads’
Optional versions (surcharge):
Bench top steel (15 mm projection) for completely plastered systems
Ekko U 67(45)51 h with sliding door
With Design concrete
With natural stone bench
Ekko interior lining anthracite
SMR combustion control
Important note: Please speak to your local district chimney sweep for authorisation to install the planned fireplace before purchasing.
Shipping conditions
Delivery is only possible within Germany.Other countries only on request; pick up is also possible!
Shipping costs (including statutory VAT)
Deliveries within Germany:
We calculate the shipping costs based on the order value (gross goods value):
up to a goods value of 99.99 EUR = 6.90 EUR
free shipping within Germany from a goods value of 100 EUR
Manufacturer: Camina & Schmid
Feuerdesign und Technik GmbH & Co. KG
Gewerbepark 18
49143 Bissendorf
Phone +49 5402 7010-10
Fax +49 5402 7010-70
www.camina-schmid.de
