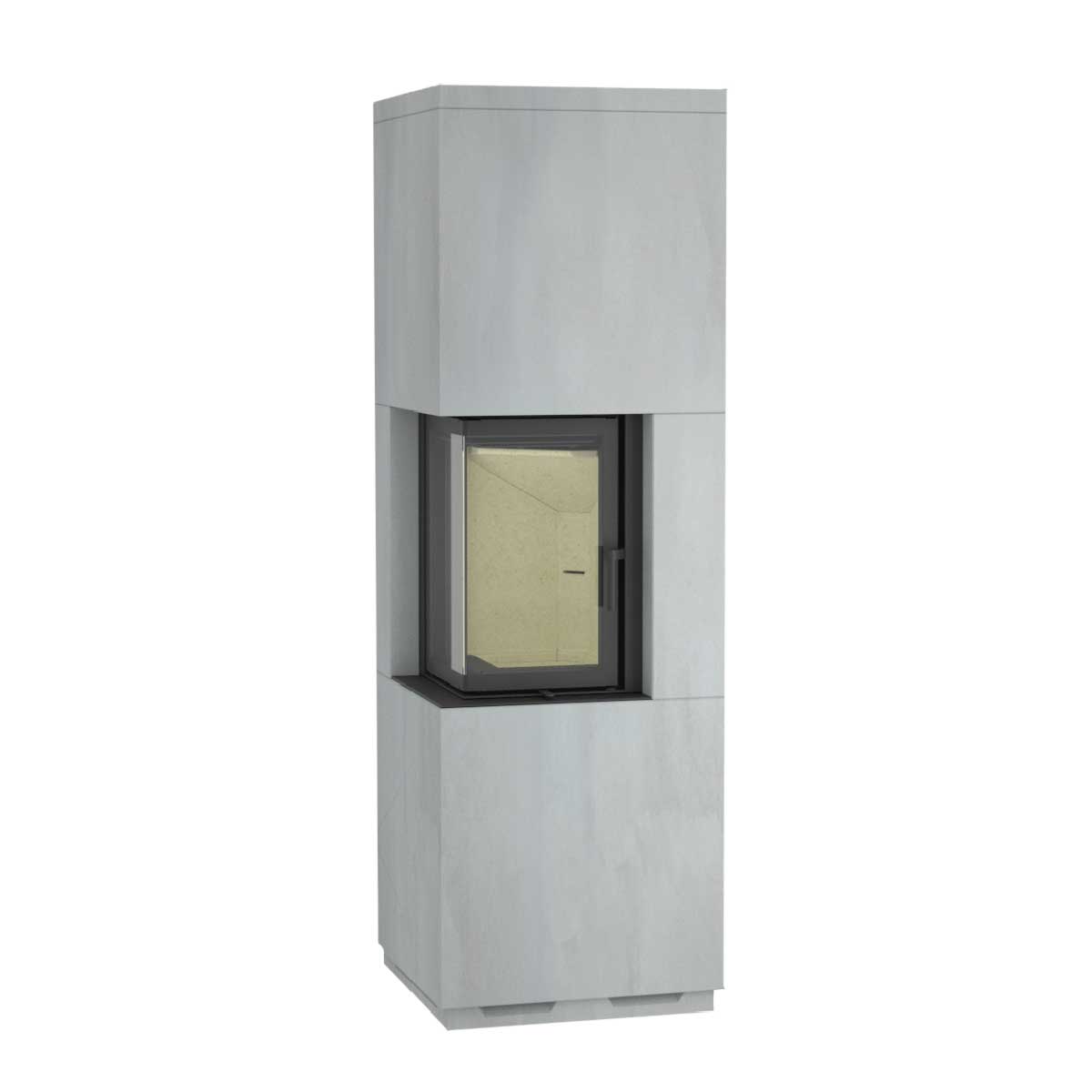

Fireplace Kit Camina-Schmid S-3
The storage system - a cosy fire and pleasant warmth for hours Camina & Schmid offers a unique variety of different system installations. Consisting of consisting of a reinforced cast compound that gently releases the heat from the fireplace, the system units are quick and easy to install and can be finished in any colour.
Concrete version
Please note that the system systems have a raw, purist concrete surface, which is truly unique due to its unique surface texture. Irregularities
or colour differences in the material cannot be avoided due to the production process. For this reason, a surface finish is provided for these systems. For a uniform, even surface with the typical characteristics of the concrete look, the concrete colour is included in the scope of delivery as standard. Alternatively, in co-operation with Brillux GmbH & Co. KG, we offer three other finishing techniques.
The design concrete version is an anthracite-coloured concrete, which is waxed, polished and thus sealed in the final treated surface. Water stains and signs of wear of any kind are almost completely repelled. The surface is therefore easy to maintain. A specific characteristic of this material is that it forms holes of different sizes in the surface. This is a special expression of designer concrete and contributes to its uniqueness.
The variety of natural stone
As the name suggests, natural stone is a product that has grown in the wild over millions of years and to which we can ‘only’ add the shape and finishing touches. Deviations in colour, structure and
and veining are therefore completely natural. This means that every system made from it is unique, which further emphasises the high value of this product.
Description:
- Manufacturer: Camina-Schmid
- Material: Cladding made of storage stone in concrete look
- System with ventilated rear wall: yes
- Dimensions: W 600, H 1877, D 600 mm
- Connection height from top edge of finished floor: 1660 mm
- Incl. fireplace insert Ekko 34(34)57 s with hinged door
- Weight incl. fireplace insert: approx. 340 kg
Fireplace insert info:
Fireplace insert: Ekko 34(34)57 s with hinged door, crystal version
Nominal heat output: 7 kW
Flue gas connection: Ø 160 mm
Further technical information in TAB ‘Downloads’
Optional versions (surcharge):
with anthracite design concrete
Ekko 34(34)57 h with sliding door
Base plate on request
Important note: Please speak to your local district chimney sweep for authorisation to install the planned fireplace before purchasing.
Shipping conditions
Delivery is only possible within Germany.Other countries only on request; pick up is also possible!
Shipping costs (including statutory VAT)
Deliveries within Germany:
We calculate the shipping costs based on the order value (gross goods value):
up to a goods value of 99.99 EUR = 6.90 EUR
free shipping within Germany from a goods value of 100 EUR
Manufacturer: Camina & Schmid
Feuerdesign und Technik GmbH & Co. KG
Gewerbepark 18
49143 Bissendorf
Phone +49 5402 7010-10
Fax +49 5402 7010-70
www.camina-schmid.de
Protective measures/safety instructions for installation (wood fires and stoves)
The following protective measures and safety instructions must be strictly observed:
- Fireplaces may only be installed in rooms and in places where the location, structural circumstances and type of use do not present any hazards.
- No modifications may be made to the appliance.
- Only use the approved system for exhaust gas removal/combustion air supply.
- Work on the stove system Installation, commissioning, maintenance and servicing work on the appliance may only be carried out by an authorized specialist company.
as the safety and functionality of the system depend on proper installation. - The installation must be carried out by a registered specialist company, as the safety and functionality of the system depend on proper installation. You must observe the applicable trade regulations and building regulations.
- Fireplaces must be installed in an operationally safe and fireproof manner so that hazards and unreasonable nuisances cannot occur. They must be fit for purpose for a reasonable period of time.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
Protective measures/safety instructions for installing gas fireplaces
The following protective measures and safety instructions must be strictly observed:
- Installation and maintenance of the appliance may only be carried out by a recognized and competent installer in the field of gas heating and electricity.
- No modifications may be made to the appliance.
- Only use the approved flue gas extraction/combustion air supply system.
- Procedure when installing a free-standing appliance: place the appliance at the specified minimum distance from the rear wall (see information in the instructions).
- Do not cover the appliance or wrap it in an insulating blanket or other materials. Ensure that there are no flammable objects and/or materials in the radiation area of the appliance. This radiation range is 500 mm, unless otherwise specified.
- Only use the set included in the scope of delivery, for example the wooden block set or the pebble set, and place it exactly as described.
- Leave the space around the ionizing pin and the ignition pin free and never place any incandescent material around these pins.
- Make sure that the gas pipes and connections are clean and free of any impurities. Install a gas tap in accordance with the applicable regulations.
- Check the entire system for gas leaks before commissioning.
- Check the entire system for gas leaks before commissioning.
- Ensure that the pressure equalization hatch(es) at the top and/or bottom of the appliance are not blocked and check that these hatch(es) are well connected to the sealing surface before installing the appliance.
- Do not ignite the appliance until it has been fully installed in terms of gas technology, exhaust technology and electrical technology.
- Do not use the appliance if a pane is broken and/or cracked. The pane must be replaced first.
How to install a built-in appliance:
- Use fireproof and heat-resistant materials for the fireplace surround, including the top of the fireplace surround and the material inside the fireplace surround, such as the floor under the appliance and the rear wall in front of which the appliance is installed. Both panel materials and stone-like materials can be used for this purpose.
- Take appropriate protective measures to ensure that the wall behind the fireplace surround and the materials or objects located behind the rear wall do not heat up too much.
- Observe the minimum specifications regarding the internal dimensions of the fireplace surround. These have been specified for safety reasons and to avoid extreme heat build-up in the fireplace conversion.
- Ventilate the fireplace conversion using ventilation openings. These openings are crucial for safety and to prevent extreme heat build-up in the fireplace conversion.
- The electrical connections must be heat-resistant.
- Position the heat-resistant power connections away from the appliance and as low as possible in the fireplace surround.
- This applies in connection with the temperature development in the fireplace surround.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
