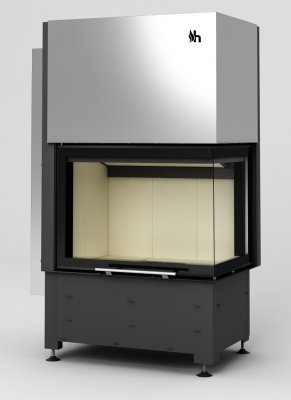

Hajduk Fireplace Set IMPERIAL EXTRA with Volcano WPLTh 2
Hajduk IMPERIAL EXTRA with Volcano WPLTh

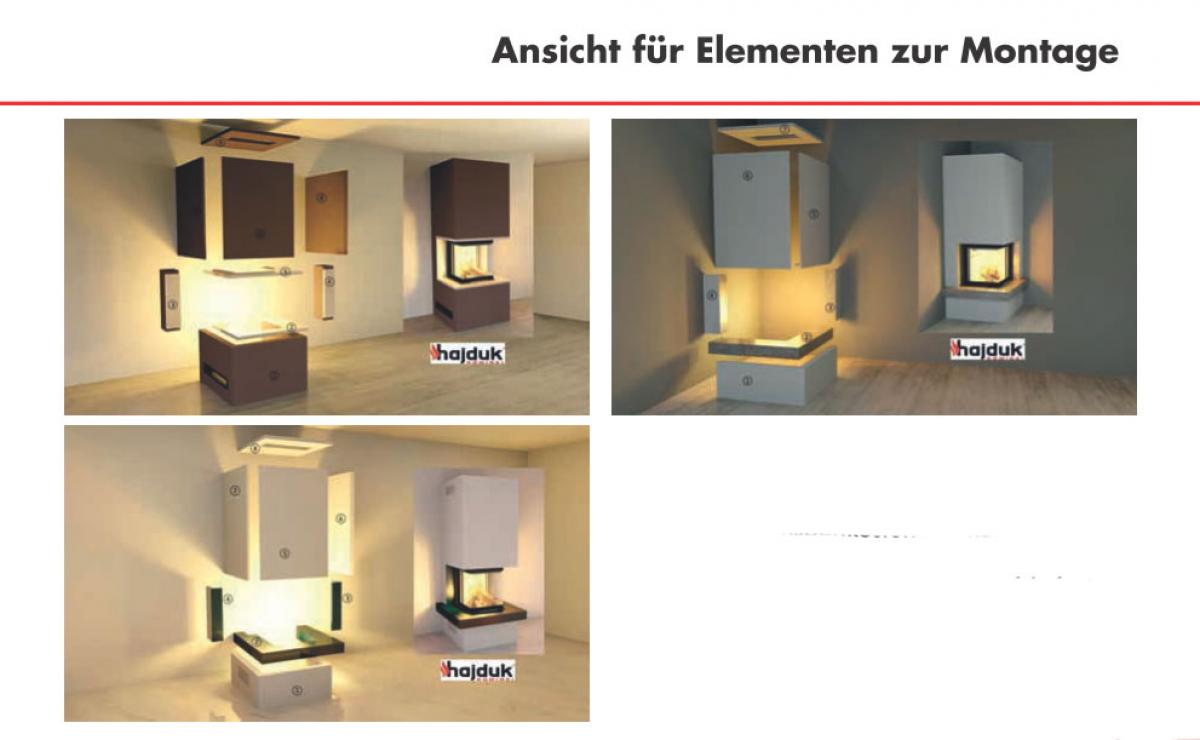

comes complete with hood from Silca borders, air grills and tubes for connection.
available with 6 different natural stones.
With water heating system.
Dimensions w/h/d = 118/193/93 cm
Specifications:
- Door size: w670/450xh510 mm
- frameless sliding door
- Nominal power: 12 kW
- Heating range: 6-18 kW
- Instantaneous efficency: 90 %
- Average efficency: 82 %
- CO emission: 1 g/m3
- Dust emission: 0.01 g/m3
- Flue gas temperature: 260 degree C
- Exhaust outlet: 200 mm
- Air inlet: 150 mm
- Fuel type: logs
- Length of logs: 50 cm
- Nominal capacity: 3,7 kg
- Fuel consumption: 3,7 kg/h
- Construction: steel
- Weight: 360 kg
- Certifications: DIN EN 13229, BImSchV1+2, 15A (Austria), LRV (Switzerland)
Advantages of HAJDUK fireplace inserts
- Modern double-jacket steel-chamotte construction – tried and proven solution – fireplace that will last for decades
- Insert’s flue is fully and securely welded to the body without using any sealing materials or screws – welding robots are used and the welding process is carried out in an inert gas backing – high quality and tight joints – security in everyday use
- Construction elements are cut with 2D and 3D laser cutters and then processed on numerically operated bending machines, including bending process performed by a robot, while mechanical elements are created in an advanced CNC processing center – manufacturing precision of Hajduk, the Polish producer of the European Premium Class inserts
- Hajduk Fireplace Inserts are painted on a technological painting line: grinding, robot painting and drying are the most modern technologies for the materials of the best quality
- Heatproof ceramic glass that can withstand temperatures up to 800 °C, it is possible to use a double or pyrolytic glass, depending on the insert model
- Furnace pipe is led through a very high flue to increase the amount of the heat recovered from the fumes – extra heat recovery means extra money saving each day
- Exterior air supply and division system Jet Stream Superior with two burning speed controllers leads the primary air through the ashpan and the overfire air to the upper back part of the furnace. Primary air helps to ignite the first and next portions of wood while overfire air allows for economic and ecological combustion – it ensures a precise control over the combustion process
- Glass auto-cleaning Clear View system – it helps to keep the glass clean
Shipping conditions
Delivery is only possible within Germany.Other countries only on request; pick up is also possible!
Shipping costs (including statutory VAT)
Deliveries within Germany:
We calculate the shipping costs based on the order value (gross goods value):
up to a goods value of 99.99 EUR = 6.90 EUR
free shipping within Germany from a goods value of 100 EUR
Manufacturer: HAJDUK Kominki Agnieszka i Dariusz Nasińscy spółka z ograniczoną odpowiedzialnością sp.k.
ul. Kasprzaka 6F
66-400 Gorzów Wlkp.
Poland
Phone:+48 95 722 54 59
www.hajduk.com.pl
Protective measures/safety instructions for installation (wood fires and stoves)
The following protective measures and safety instructions must be strictly observed:
- Fireplaces may only be installed in rooms and in places where the location, structural circumstances and type of use do not present any hazards.
- No modifications may be made to the appliance.
- Only use the approved system for exhaust gas removal/combustion air supply.
- Work on the stove system Installation, commissioning, maintenance and servicing work on the appliance may only be carried out by an authorized specialist company.
as the safety and functionality of the system depend on proper installation. - The installation must be carried out by a registered specialist company, as the safety and functionality of the system depend on proper installation. You must observe the applicable trade regulations and building regulations.
- Fireplaces must be installed in an operationally safe and fireproof manner so that hazards and unreasonable nuisances cannot occur. They must be fit for purpose for a reasonable period of time.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
