Spartherm Varia FD-87h
The "blue hour" is truly a magical moment of the day when everything calms down and the world is bathed in a soft, bluish light. Enjoying the cozy warmth of a fireplace at this special moment increases the feeling of security and relaxation immensely.
Log fireplace inserts, such as those from Spartherm, not only offer a source of warmth, but also transform your home into a place where you can feel completely at home. They combine the nostalgic coziness of a classic fireplace with modern demands on efficiency and design. Whether as a centerpiece in the living room or as a stylish eye-catcher in other rooms - such a fireplace insert creates an atmosphere that invites you to relax and linger.
The flexibility offered by log fireplace inserts is particularly attractive. They can be retrofitted in existing open fireplaces or integrated into new buildings. They are not only environmentally friendly and economical, but can also be adapted in many ways to the architecture and style of your home. So if you want to fully enjoy the magic of the blue hour, a log fireplace insert will be an indispensable companion for cozy evenings at home.

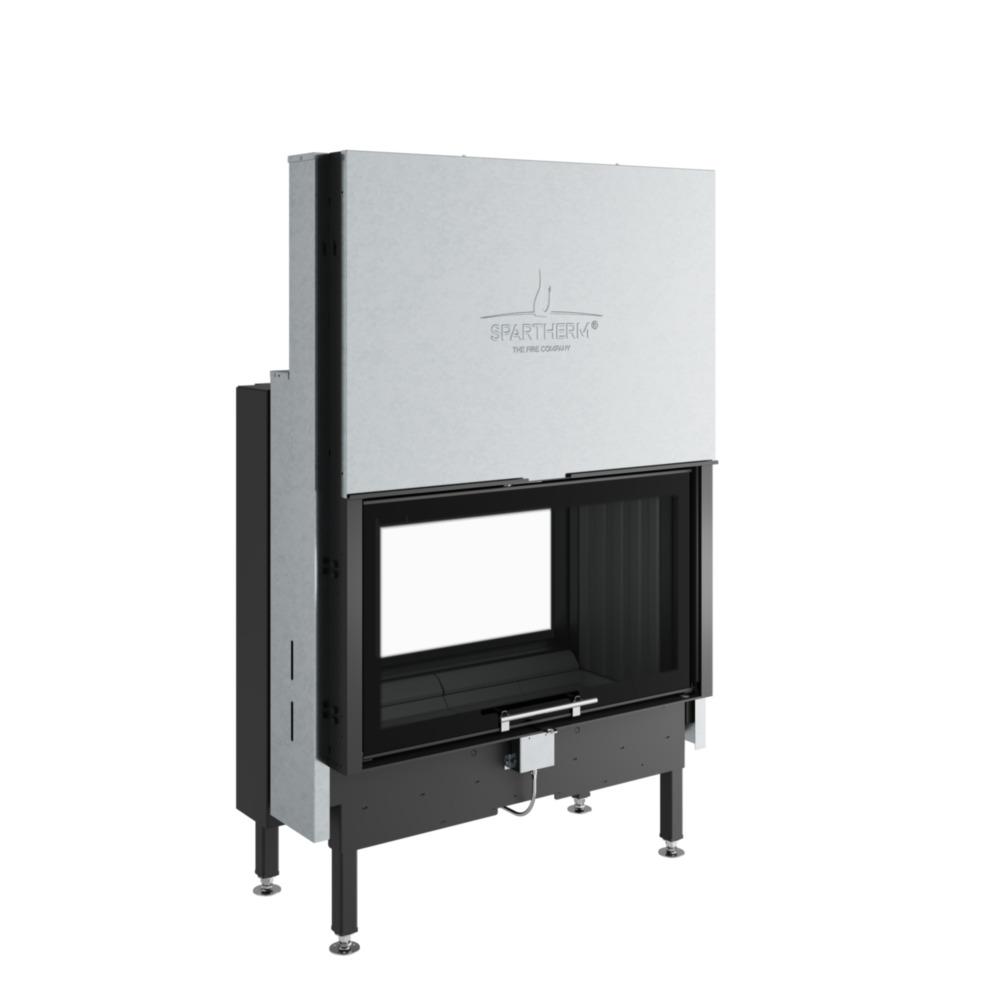

With a view from 2 sides: Varia FD-87h tunnel fireplace insert with concealed pane frame, side-mounted, 4-sided printed glass ceramic, with handle.
Technical specifications
- Manufacturer: SPARTHERM
- Energy efficiency class:
- Nominal heat output (closed) kW: 10.6
- Efficiency %: >80
- Water heating: no
- Model: built in
- Fire vision: 2 sided tunnel
- Fuel: Logs
- Combustion system: Closed combustion, dependent on ambient air
- Glass design: Double glazing with EnergyPlus coating
- Door version: 1 sliding door and 1 hinged door. Can only be pushed up on one side, other side folds up for cleaning
- Diameter flue pipe socket mm: 200
- Weight kg: 297
- Material: body made of 3.0 mm special steel
- Combustion chamber lining: heat-resistant fireclay color ivory (optionally black)
- Certifications: BImSCHV. 2.Stage, 15a B-VG
- Operation possible with type A1: yes (self closing door)
- Operation possible with type A: yes
- Mounting frames
- S-Thermatik-NEO, S-USI II, S-ESAM
- eboris 1300 ultra black (chamotte)
Important note: Before purchasing, please speak to your district chimney sweeper and obtain permission from him to operate the desired chimney.
Shipping conditions
Delivery is only possible within Germany.Other countries only on request; pick up is also possible!
Shipping costs (including statutory VAT)
Deliveries within Germany:
We calculate the shipping costs based on the order value (gross goods value):
up to a goods value of 99.99 EUR = 6.90 EUR
free shipping within Germany from a goods value of 100 EUR
- Download dimensions: click here
- Download declaration of performance (in 22 languages): click here;
- Download assembly instructions: click here
Manufacturer: Spartherm Feuerungstechnik GmbH
Maschweg 38
D-49324 Melle
Tel.: +49 5422 9441-0
Fax: +49 5422 9441-14
www.spartherm.com
Protective measures/safety instructions for installation (wood fires and stoves)
The following protective measures and safety instructions must be strictly observed:
- Fireplaces may only be installed in rooms and in places where the location, structural circumstances and type of use do not present any hazards.
- No modifications may be made to the appliance.
- Only use the approved system for exhaust gas removal/combustion air supply.
- Work on the stove system Installation, commissioning, maintenance and servicing work on the appliance may only be carried out by an authorized specialist company.
as the safety and functionality of the system depend on proper installation. - The installation must be carried out by a registered specialist company, as the safety and functionality of the system depend on proper installation. You must observe the applicable trade regulations and building regulations.
- Fireplaces must be installed in an operationally safe and fireproof manner so that hazards and unreasonable nuisances cannot occur. They must be fit for purpose for a reasonable period of time.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
