DRU - Maestro 60/3 Tall Eco Wave
The Maestro 60 Tall Eco Wave is a fire with a wide fire view. This gives you the ultimate fire experience. The ability to keep the fire burning on low power makes this fire widely applicable. The Maestro 60 Tall Eco Wave is also equipped with the updated Easy Release Door System, which makes the fire easy to clean. The optional Clear View glass makes the fire experience even more intense!
Important features of the Maestro Eco Wave:
- The customer can customise the interior to suit their personal style, whether in elegant black, rustic brick or mirrored ceraglass, which additionally reflects and intensifies the flames.
- Flexible atmosphere with LED technology: A new feature is the LED lighting, which immerses the fireplace in an atmospheric ambience even when no heat is required. This Eco Glow LED glow bed creates a natural glow that can be controlled via app or remote control. This allows you to enjoy the cosy fireplace ambience regardless of the heat.
- Eco Wave technology: This technology allows the flame intensity to be controlled via app, which not only optimises fuel consumption but also allows the atmosphere to be precisely adjusted.
With these features, the DRU Maestro Eco Wave is a modern solution for those who want to enjoy an atmospheric fire without having to sacrifice flexibility and environmental friendliness.
Specifications
- Brand: DRU
- Energy efficiency class:
- Outout net G20 (G25) min. kW: 1,9 (1,6)
- Output net G20 (G25) max. kW: 7,2 (6,8)
- Model: Built in
- Fire view: 3-sided
- Fuel: Natural gas, Propane
- Suitable for new natural gas: yes
- Combustion system: Combustion air from outside
- Glass window: Standard glass
- Door type: Fixed door
- Control: Remote control RCH DRU, Smartphone/tablet
- Control hatch: optional
- Burner: Dynamic Flame Brenner®*
- Eco Wave: yes
- Eco Glow: optional**
- Thermostat: yes
- Colours: Black
- Material: Steel
- Interior: Black smooth
- Fire bed: Brown logs
- Efficiency (%): 94.3
- Built-in depth (mm): 495
- Fire view width (mm): 600
- Fire view height (mm): 800
- Weight (kg): 136
- Flue Ø (mm): 200/130
- PowerVent possible : yes
- Approvals: CE
Included in the scope of delivery::
Ceramic imitation logs, brown
Shielding box no. 1076621 electrical protective housing for floating installation on a plateau
Gas fitting and receiver for remote control integrated in the appliance
RCH remote control The DRU Lugo 80/3 Eco Wave is therefore not only a visual highlight, but also an efficient and environmentally friendly heating solution for modern living spaces
The installation and operating instructions
Optional accessories:
- Installation frame 8-sided, W = 110 mm, installation size 70 mm
- mounting frame
- Set of feet, 4 pieces (L:25 x W:25 x H:490 mm)
- Window cleaner for CV glass
- Cover plate for LED
- Gas hose for gas socket - pre-assembled
Important information
230 V electrical connection required!
Please note additional components for orders with PowerVent! (on request)
Installation panel - can be ordered as an option - standard panel included in the scope of delivery
The cover is an optical design element and is not a supporting frame!
The technical details of DRU gas fire inserts cover a wide range of aspects that are relevant for both semi-automatic and fully automatic operation. Here is a summary of the technical description:

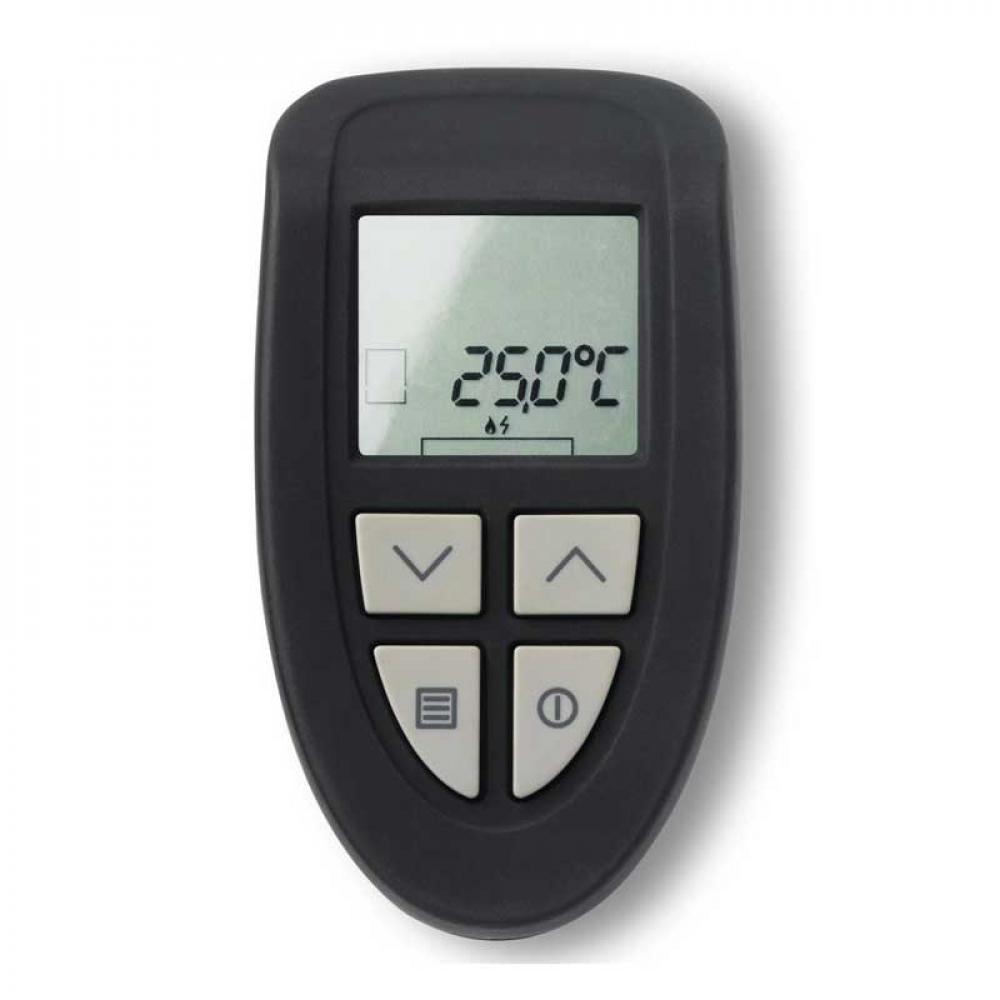

HONEYWELL CONTROL (RCH)
- Fully automatic operation: Requires a 230 V power connection.
- WiFi module: A communication module for control via mobile device (Android/iOS) via WLAN can be integrated as an option.
- Radio remote control: Includes the following functions:
- Ignition
- 15-stage flame adjustment (up to 30-stage for double burners)
- On/off (no pilot light required, saves gas)
- Daily and weekly programme via timer
- Programmable thermostat presets
- EcoWave activation.
*DYNAMIC FLAME BURNER®
- Lively, natural flames
- Burner 1: for width and depth in the fire
- Burner 2 (can be switched off as an option): sets the volume and height of the flames
**ECO GLOW
100% atmosphere, 0% heat
Would you prefer no heat at all, just the atmosphere of a burning fireplace? Then use the Eco Glow function. The LED glow bed from Eco Glow creates the impression of a burning fireplace. This lifelike bed of embers does not emit any heat and can be adjusted separately. You can easily set the atmosphere in your home using the DRU Fire app or the remote control.
***CLEAR VIEW GLASS
A good view of the flames means even more enjoyment from your burning gas fire. That's why DRU offers you Clear View glass: Anti-reflective glass that gives you an optimum view of the fire. This glass is extremely suitable for rooms with little direct sunlight or a dark interior.
Technical equipment
- Adjustable feet: The factory-installed feet can be adjusted by 50 mm. Optional adjustable feet are available with a height of up to 490 mm.
- Front design: Frameless glass ceramic panel, the gas fire insert may only be operated when closed.
- Burner granulate: Vermiculite is used as burner granulate.
- Imitation wood: Fire-resistant imitation wood made of ceramic fibre. Some models are also available with Carrara or Greystone stones.
- LAS system: Every gas fire insert must be connected to a DRU LAS system.
Control and regulation unit
- Supplied pre-assembled in a control box that can be positioned individually in the base area of the system.
- Connection lines for ignition, flame detector and gas line are usually located in the centre, on some models also on the left.
All in all, DRU gas fire inserts offer a high degree of flexibility in control and installation, precise flame control and modern additional functions for convenience and energy efficiency.
Important note: The connection of a gas fire must ONLY be carried out by a specialist company!
DRU gas fires may ONLY be installed with the DRU LAS flue gas system; otherwise they are not certified and will not be approved.
Shipping conditions
Delivery is only possible within Germany.Other countries only on request; pick up is also possible!
Shipping costs (including statutory VAT)
Deliveries within Germany:
We calculate the shipping costs based on the order value (gross goods value):
up to a goods value of 99.99 EUR = 6.90 EUR
free shipping within Germany from a goods value of 100 EUR
Certification Drawing / Maßblatt Installation Guide
Maschweg 38
D-49324 Melle
Tel.: +49 5422 9441-0
www.spartherm.com
Protective measures/safety instructions during installation
The following protective measures and safety instructions must be strictly observed:
- Installation and maintenance of the appliance may only be carried out by a recognized and competent installer in the field of gas heating and electricity.
- No modifications may be made to the appliance.
- Only use the flue gas extraction/combustion air supply system supplied by DRU.
- Procedure for installing a freestanding appliance: place the appliance at the specified minimum distance from the rear wall (see the information later in this text).
- Do not cover the appliance or wrap it in an insulating blanket or other materials. Ensure that there are no flammable objects and/or materials in the radiation area of the appliance. This radiation range is 500 mm, unless otherwise specified.
- Only use the set included in the scope of delivery, for example the wooden block set or the pebble set, and place it exactly as described.
- Leave the space around the ionizing pin and the ignition pin free and never place any incandescent material around these pins.
- Make sure that the gas pipes and connections are clean and free of any impurities. Install a gas tap in accordance with the applicable regulations.
- Check the entire system for gas leaks before commissioning.
- Make sure that the pressure equalization hatch(es) on the top and/or bottom of the appliance are not blocked and check that these hatch(es) are well connected to the sealing surface before installing the appliance.
- Do not ignite the appliance until it has been fully installed in terms of gas technology, exhaust technology and electrical technology; first go through the procedure described in chapter 7.3 of the instructions.
- Do not use the appliance if a pane is broken and/or cracked. The pane must be replaced first.
Procedure for installing a built-in appliance:
- Use fireproof and heat-resistant materials for the fireplace surround, including the top of the fireplace surround and the material inside the fireplace surround, such as the floor under the appliance and the rear wall in front of which the appliance is installed. Both panel materials and stone-like materials can be used for this purpose.
- Take appropriate protective measures to ensure that the wall behind the fireplace surround and the materials or objects located behind the rear wall do not heat up too much.
- Observe the minimum specifications regarding the internal dimensions of the fireplace surround. These have been specified for safety reasons and to avoid extreme heat build-up in the fireplace conversion.
- Ventilate the fireplace conversion using ventilation openings (see instructions). These openings are crucial for safety and to prevent extreme heat build-up in the fireplace conversion.
- The electrical connections must be heat-resistant.
- Position the heat-resistant power connections away from the appliance and as low as possible in the fireplace surround.
- This applies in connection with the temperature development in the fireplace surround.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance if children, the elderly or the physically disabled are in the same room as the appliance. If vulnerable persons may regularly be present in the room without supervision, a fixed screen must be fitted around the appliance.
