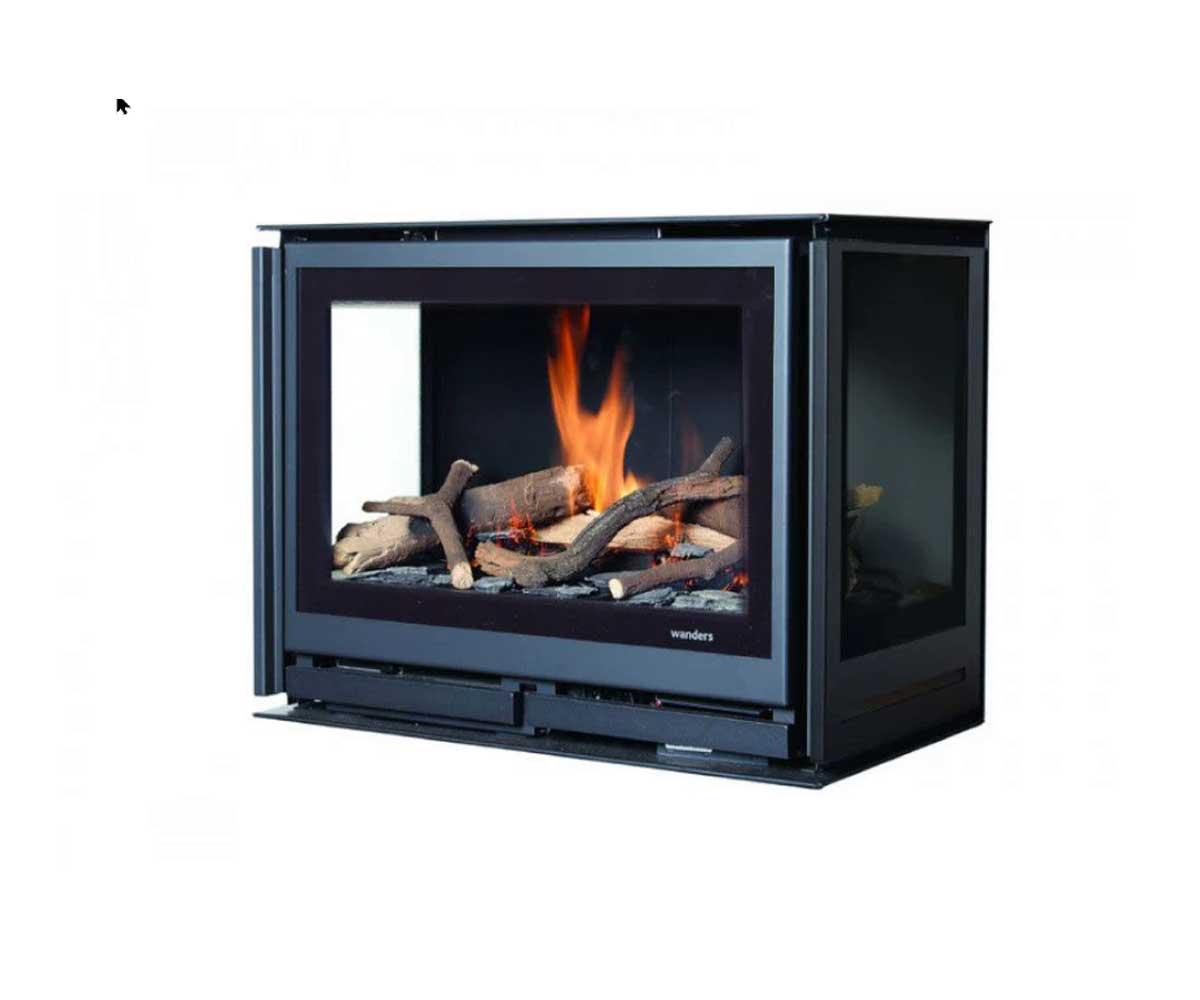

Wanders SQUARE 60G U-Design ABE
The Wanders Square 60G U is a compact, efficient gas fireplace insert with an elegant, minimalist design and modular construction (front, corner, 3-sided). With over 90% efficiency, remote control, thermostat function, and a secure flue system, it is ideal for modern living spaces – especially for retrofitting open fireplaces without major renovation work.
Who the Square 60G is particularly suitable for:
- Small to medium-sized rooms that desire a cozy fireplace atmosphere without the need for wood.
- Existing chimney situations where renovation is to be avoided.
- Users who value convenient control and visual appeal (timer, thermostat, realistic wood look).
Overview – Wanders Square 60G Gas Fireplace
General Specifications
Model variants: Front (front glass only), Corner L/R (corner), and Trilateral (3-sided glass).
Heating output: approx. 4.8 kW.
Efficiency: 91.8%, very efficient for a compact model.
Flue connection: conventional concentric system with a diameter of 100/150 mm; connection at the top of the appliance.
Technical features
Closed combustion (room-sealed), ideal for existing chimneys – with special Wanders concentric technology, can be installed without demolishing the chimney.
A fan for improved heat distribution is integrated as standard.
Remote control included with timer and thermostat for convenient control.
Decorative burner bed with a wood look ensures a realistic flame pattern.
Dimensions & Weight (Front Model)
Dimensions: approx. W 641 × H 513 × D 364 mm
Weight: approx. 59–60 kg.
Other variants
Front model: Basic version with a large front panel.
Corner (left corner or right corner): Front + one side panel, ideal for corner installation.
Trilateral (3-sided): Panoramic flames visible from three sides, particularly decorative.
Shipping conditions
Delivery is only possible within Germany.Other countries only on request; pick up is also possible!
Shipping costs (including statutory VAT)
Deliveries within Germany:
We calculate the shipping costs based on the order value (gross goods value):
up to a goods value of 99.99 EUR = 6.90 EUR
free shipping within Germany from a goods value of 100 EUR
Manufacturer:
Wanders fires & stoves
Amtweg 4
7077 AL NETTERDEN
Netherlands
Phone: +31 (0) 315 - 386 414
www.wanders.nl
Protective measures/safety instructions for installation (wood fires and stoves)
The following protective measures and safety instructions must be strictly observed:
- Fireplaces may only be installed in rooms and in places where the location, structural circumstances and type of use do not present any hazards.
- No modifications may be made to the appliance.
- Only use the approved system for exhaust gas removal/combustion air supply.
- Work on the stove system Installation, commissioning, maintenance and servicing work on the appliance may only be carried out by an authorized specialist company.
as the safety and functionality of the system depend on proper installation. - The installation must be carried out by a registered specialist company, as the safety and functionality of the system depend on proper installation. You must observe the applicable trade regulations and building regulations.
- Fireplaces must be installed in an operationally safe and fireproof manner so that hazards and unreasonable nuisances cannot occur. They must be fit for purpose for a reasonable period of time.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
Protective measures/safety instructions for installing gas fireplaces
The following protective measures and safety instructions must be strictly observed:
- Installation and maintenance of the appliance may only be carried out by a recognized and competent installer in the field of gas heating and electricity.
- No modifications may be made to the appliance.
- Only use the approved flue gas extraction/combustion air supply system.
- Procedure when installing a free-standing appliance: place the appliance at the specified minimum distance from the rear wall (see information in the instructions).
- Do not cover the appliance or wrap it in an insulating blanket or other materials. Ensure that there are no flammable objects and/or materials in the radiation area of the appliance. This radiation range is 500 mm, unless otherwise specified.
- Only use the set included in the scope of delivery, for example the wooden block set or the pebble set, and place it exactly as described.
- Leave the space around the ionizing pin and the ignition pin free and never place any incandescent material around these pins.
- Make sure that the gas pipes and connections are clean and free of any impurities. Install a gas tap in accordance with the applicable regulations.
- Check the entire system for gas leaks before commissioning.
- Check the entire system for gas leaks before commissioning.
- Ensure that the pressure equalization hatch(es) at the top and/or bottom of the appliance are not blocked and check that these hatch(es) are well connected to the sealing surface before installing the appliance.
- Do not ignite the appliance until it has been fully installed in terms of gas technology, exhaust technology and electrical technology.
- Do not use the appliance if a pane is broken and/or cracked. The pane must be replaced first.
How to install a built-in appliance:
- Use fireproof and heat-resistant materials for the fireplace surround, including the top of the fireplace surround and the material inside the fireplace surround, such as the floor under the appliance and the rear wall in front of which the appliance is installed. Both panel materials and stone-like materials can be used for this purpose.
- Take appropriate protective measures to ensure that the wall behind the fireplace surround and the materials or objects located behind the rear wall do not heat up too much.
- Observe the minimum specifications regarding the internal dimensions of the fireplace surround. These have been specified for safety reasons and to avoid extreme heat build-up in the fireplace conversion.
- Ventilate the fireplace conversion using ventilation openings. These openings are crucial for safety and to prevent extreme heat build-up in the fireplace conversion.
- The electrical connections must be heat-resistant.
- Position the heat-resistant power connections away from the appliance and as low as possible in the fireplace surround.
- This applies in connection with the temperature development in the fireplace surround.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
