DRU PASSO RCH
A desirably curved gas stove

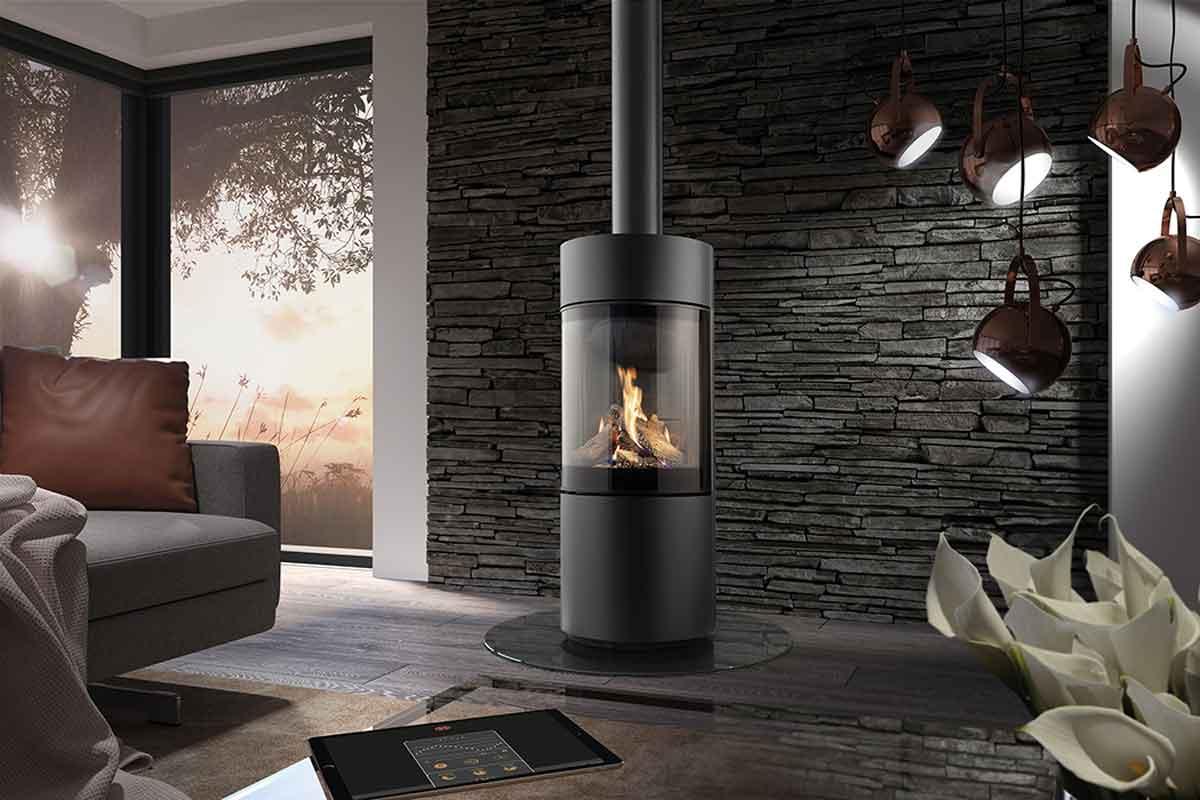

Passo is an elegant and shapely gas stove. At a height of more than 1 m, this freestanding gas stove has a large viewing window that gives a view of a classic wood fire with high, attractive flames and generous warmth. This beautiful flame image can be seen from various places around the fire, which opens up many possibilities for placement in the house.
Technical data: Gas stove Passo RCH
Dimensions of the stove:
Total height mm: 1142
clear height glass pane mm: 416
Overall width mm: Ø 452
clear width of glass pane mm: 436
Total depth mm: Ø 452
Ø Combustion air connection / exhaust connection (LAS) mm: 150/100
Gas connection: 3/8 "
Installation type C11, C31, C91
Weight, unpacked approx. Kg 95
Gas Type Pressure Gas Consumption Stove Passo RCH
Gas type natural gas G20 / G25:
Energy efficiency class: A / A
Nominal heat load kW: 8,6 / 8,3
Nominal heat output kW: 6,4 / 6,1
Power range kW: 1.2 - 6.4 / 0.9 - 8.3
Connection pressure mbar: 20/20/50
Burner pressure min. mbar: 7.4 / 7.0
Burner pressure max. mbar: 14.1 / 17.9
Consumption min. l / h: 220/200
Consumption max. l / h: 819/883
Efficiency class: 1/1
NOx Class: 4/5
options:
can be ordered in these colors: Nero, Titan, White, Turquoise, Lightgray and Pearl
tubes in same color on request available
Included with delivery:
– Gas fitting and Receiver for Remote Control integrated
– Remote Control RCH
– Ceramic logs brown
Optional accessories:
Gas hose for gas socket - can be ordered pre-assembled
WiFi module
DRU gas chimneys may ONLY be installed with the DRU LAS flue gas system; otherwise they are not certified and will not be approved.
Shipping conditions
Delivery is only possible within Germany.Other countries only on request; pick up is also possible!
Shipping costs (including statutory VAT)
Deliveries within Germany:
We calculate the shipping costs based on the order value (gross goods value):
up to a goods value of 99.99 EUR = 6.90 EUR
free shipping within Germany from a goods value of 100 EUR
Certification Drawing / Maßblatt Installation Guide
Maschweg 38
D-49324 Melle
Tel.: +49 5422 9441-0
www.spartherm.com
Protective measures/safety instructions during installation
The following protective measures and safety instructions must be strictly observed:
- Installation and maintenance of the appliance may only be carried out by a recognized and competent installer in the field of gas heating and electricity.
- No modifications may be made to the appliance.
- Only use the flue gas extraction/combustion air supply system supplied by DRU.
- Procedure for installing a freestanding appliance: place the appliance at the specified minimum distance from the rear wall (see the information later in this text).
- Do not cover the appliance or wrap it in an insulating blanket or other materials. Ensure that there are no flammable objects and/or materials in the radiation area of the appliance. This radiation range is 500 mm, unless otherwise specified.
- Only use the set included in the scope of delivery, for example the wooden block set or the pebble set, and place it exactly as described.
- Leave the space around the ionizing pin and the ignition pin free and never place any incandescent material around these pins.
- Make sure that the gas pipes and connections are clean and free of any impurities. Install a gas tap in accordance with the applicable regulations.
- Check the entire system for gas leaks before commissioning.
- Make sure that the pressure equalization hatch(es) on the top and/or bottom of the appliance are not blocked and check that these hatch(es) are well connected to the sealing surface before installing the appliance.
- Do not ignite the appliance until it has been fully installed in terms of gas technology, exhaust technology and electrical technology; first go through the procedure described in chapter 7.3 of the instructions.
- Do not use the appliance if a pane is broken and/or cracked. The pane must be replaced first.
Procedure for installing a built-in appliance:
- Use fireproof and heat-resistant materials for the fireplace surround, including the top of the fireplace surround and the material inside the fireplace surround, such as the floor under the appliance and the rear wall in front of which the appliance is installed. Both panel materials and stone-like materials can be used for this purpose.
- Take appropriate protective measures to ensure that the wall behind the fireplace surround and the materials or objects located behind the rear wall do not heat up too much.
- Observe the minimum specifications regarding the internal dimensions of the fireplace surround. These have been specified for safety reasons and to avoid extreme heat build-up in the fireplace conversion.
- Ventilate the fireplace conversion using ventilation openings (see instructions). These openings are crucial for safety and to prevent extreme heat build-up in the fireplace conversion.
- The electrical connections must be heat-resistant.
- Position the heat-resistant power connections away from the appliance and as low as possible in the fireplace surround.
- This applies in connection with the temperature development in the fireplace surround.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance if children, the elderly or the physically disabled are in the same room as the appliance. If vulnerable persons may regularly be present in the room without supervision, a fixed screen must be fitted around the appliance.
