H&M Stove EVO 3.0 - XL black

H & M Stove EVO 3.0 XL black

The evolution of the stove

A gem for every stove owner with convincing functions. Enjoy fiery, romantic moments through the generously designed panorama pane. The most modern technology is hidden behind the timelessly elegant design. Below the spacious combustion chamber is a wood compartment with a separate door that is perfectly integrated into the design.

Storage stones that can be integrated into the stove above the fireplace are optionally available. These storage stones enable the absorption of heat and thermal energy during the burning and can release this stored heat back into the room after the fire has gone out. The heat output thus remains constant over a longer period of time.

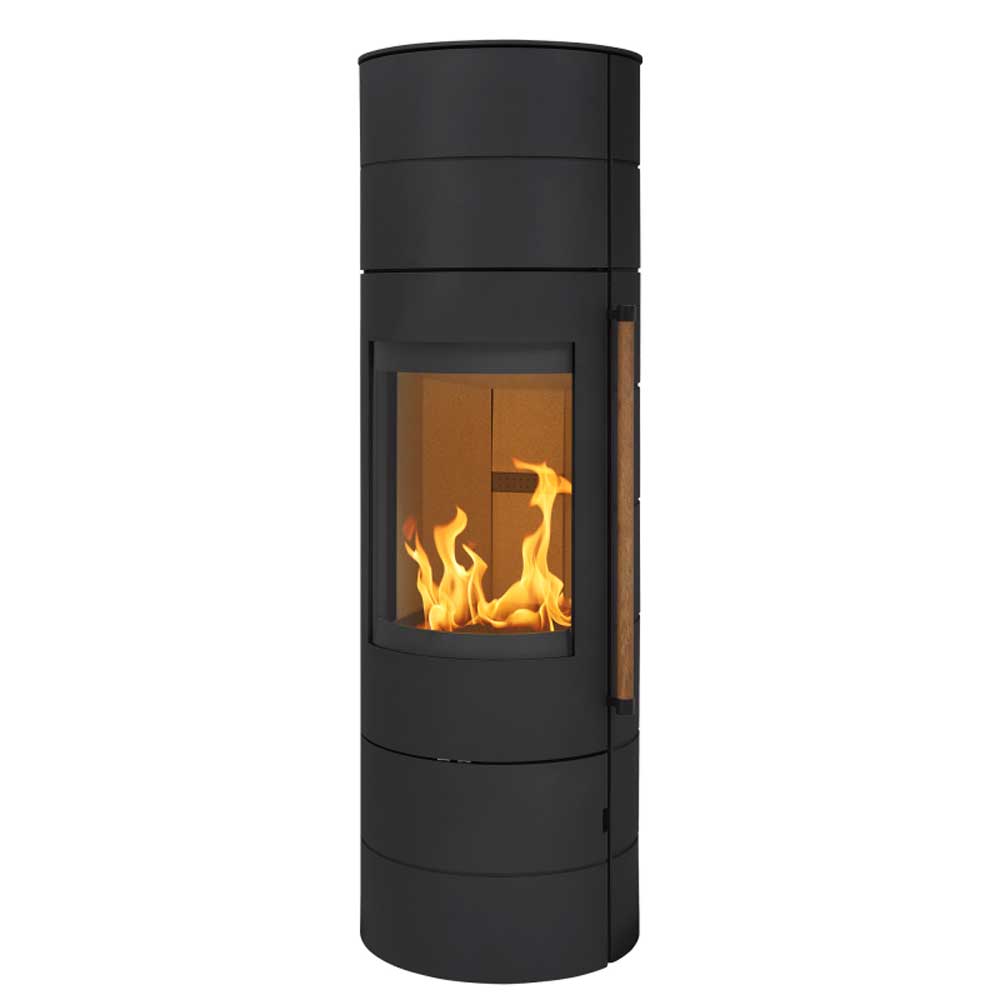

- Elegant wooden railing handle

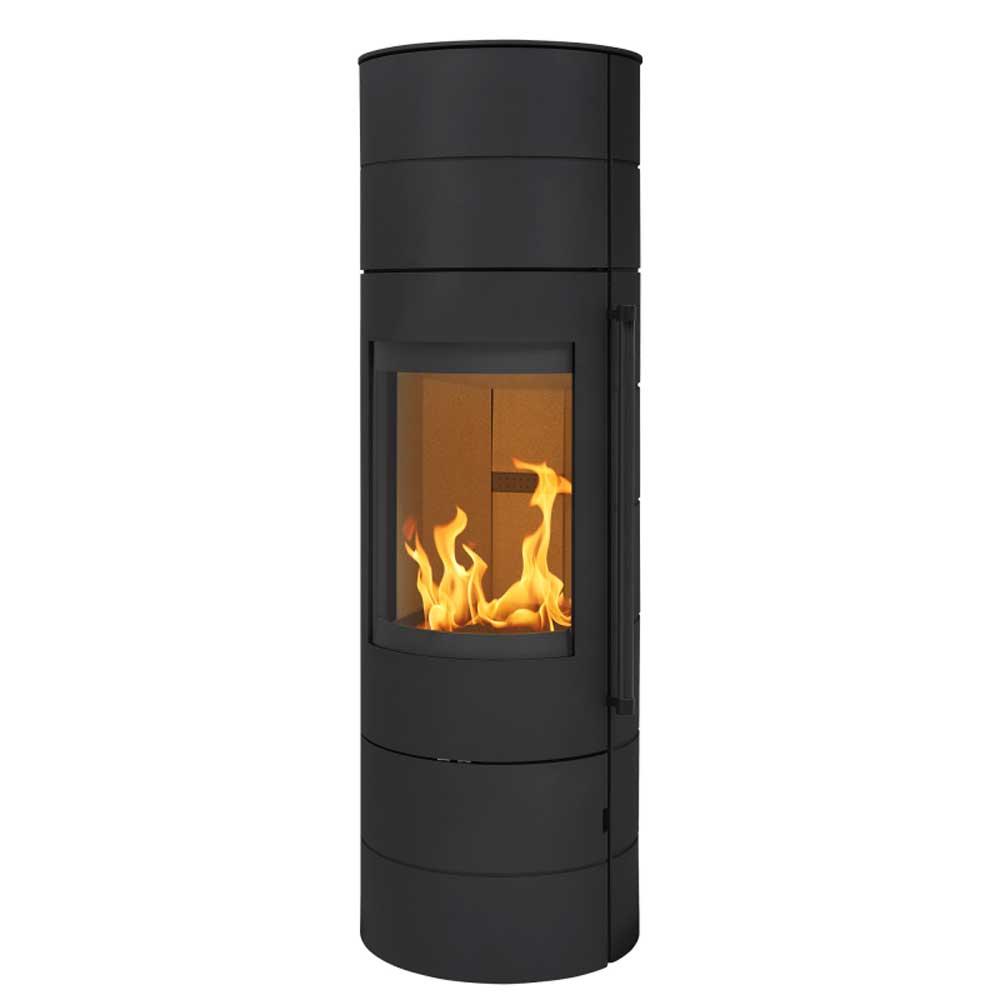

- A black steel railing handle is available as an option
- Stainless steel controls
- Massive cast trough in the firebox
- self-adjusting double door lock

Execution and equipment:
- Body: black steel
- Fairing: steel black
- Type: 1 (self-closing door)
- Air regulation: manual
- Flue pipe outlet: changeable at the top or at the back
- Exhaust nozzle: Ø150 mm
- external combustion air sockets: Ø100 mm

Dimensions & Weights:
Height: 173.5 cm
Width: 55.5 cm
Depth: 55.5 cm
Weight: 168 kg
max. log length: 40 cm
Combustion chamber height/width/depth: 58.0 cm / 38.0 cm / 41.0 cm
Distance to combustible components to the rear / to the side / in front: 20 cm / 30 cm / 80 cm

Performance data:
Nominal heat output: 7 kw
Power range: 3.5-7.3 kw
Wood support quantity: 2.23 kg/h.
Efficiency: 79.27 %
Exhaust gas mass flow: 6.0 g/s
Exhaust temperature: 366°
Delivery pressure: 12 Pa
Particulate matter: 31.0 mg/m³

Approvals:
Wood-burning stove according to DIN EN13240
BImschV: yes 2nd level
DIBT (independent of room air): no
