H&M Stove EVO 2.1 black with Soapstone

H & M Stove EVO 2.1 black with Soapstone

The evolution of the stove

A jewel of every stove owner with convincing functions. Enjoy fiery-romantic moments through the generously designed panorama pane. The timelessly elegant design conceals the most modern technology. Below the generous combustion chamber is a wood compartment with separate door that is perfectly integrated into the design.

- Noble wood-rail steel door handle (optionally black steel handle)
- Self-adjusting double door lock
- Various file improvements

Technical data

• Nominal heat output (NWL): 7 kW
• Heat output range: 3.5 - 7.3 kW
• Wood loading rate with NWL: 2.23 kg/h

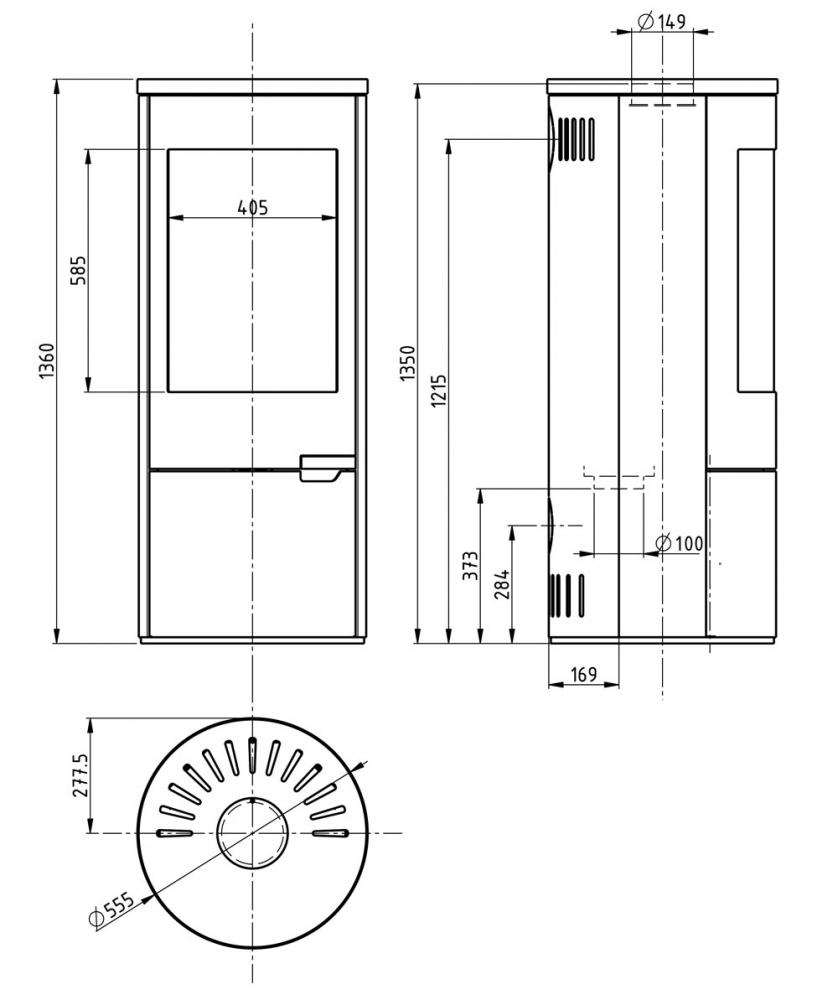

• Height / width / depth: 1,350 x 555 x 555 mm
• Exhaust gas connection diameter: 150mm
• Height of rear outlet (centre): 1215mm
• Combustion system: Manual regulation (2-fold)
• Firebox height / width / depth: 580 x 380 x 410 mm
• Pane size height / width: 540 x 400 mm
• Distance to combustible components: rear: 20cm / side: 30cm / front: 80cm
• Weight: 130 kg (steel) / 150kg (stone)
• Suitable fuels: logs, brown coal briquettes
• External combustion air supply: yes / Ø100mm
• Room heating capacity with NWL: approx. 148 m³ / approx. 65 m² (with normal room height)
• Type of construction: 1 (self-closing door)
• Suitable for multiple occupancy: yes
• Dust content based on 13 % O2: 31 mg/Nm³
• CO content related to 13 % O2: 1125 mg/Nm³
• Efficiency: 79.27
• Exhaust gas mass flow: 6.0 g/s
• Exhaust gas temperature in the nozzle: 366° C
• Minimum discharge pressure: 12 Pa
• Energy efficiency: A
• DIN EN 13240:2001/A2:2004/AC:2007
• Requirements of the BStV of the cities of Munich and Regensburg and FBStVO of the city of Aachen
• DINplus certification programme
• Air Pollution Control Ordinance of Switzerland
• Requirements of the 1st and 2nd stage of the BImSchV　
• Finish: soapstone-black

(design changes and minor dimensional deviations possible)
