H&M Stove MONO XL 3.0 black
H & M Stove MONO XL 3.0 black
simple, timeless, elegantThe timeless design paired with a 160° full glass viewing panel offers a perfect view of the flames from every perspective. Enjoy fiery, romantic moments through the generously designed panoramic window. Behind the timeless, elegant design lies the most modern technology. Below the combustion chamber there is a wooden compartment with a separate door that is perfectly integrated into the design.
Ultra-modern and safe combustion chamber technology ensures a long-lasting, clear view of the fire.
- 160° panoramic window allows a clear view of the fire from every perspective
- Concealed adjustable feet in the bottom of the oven for height adjustment up to 15mm
- light firebox lining made of the highest quality refractory concrete
- Combustion air connection at the rear, bottom
- self-adjusting double door lock
- tightly closing ash drawer

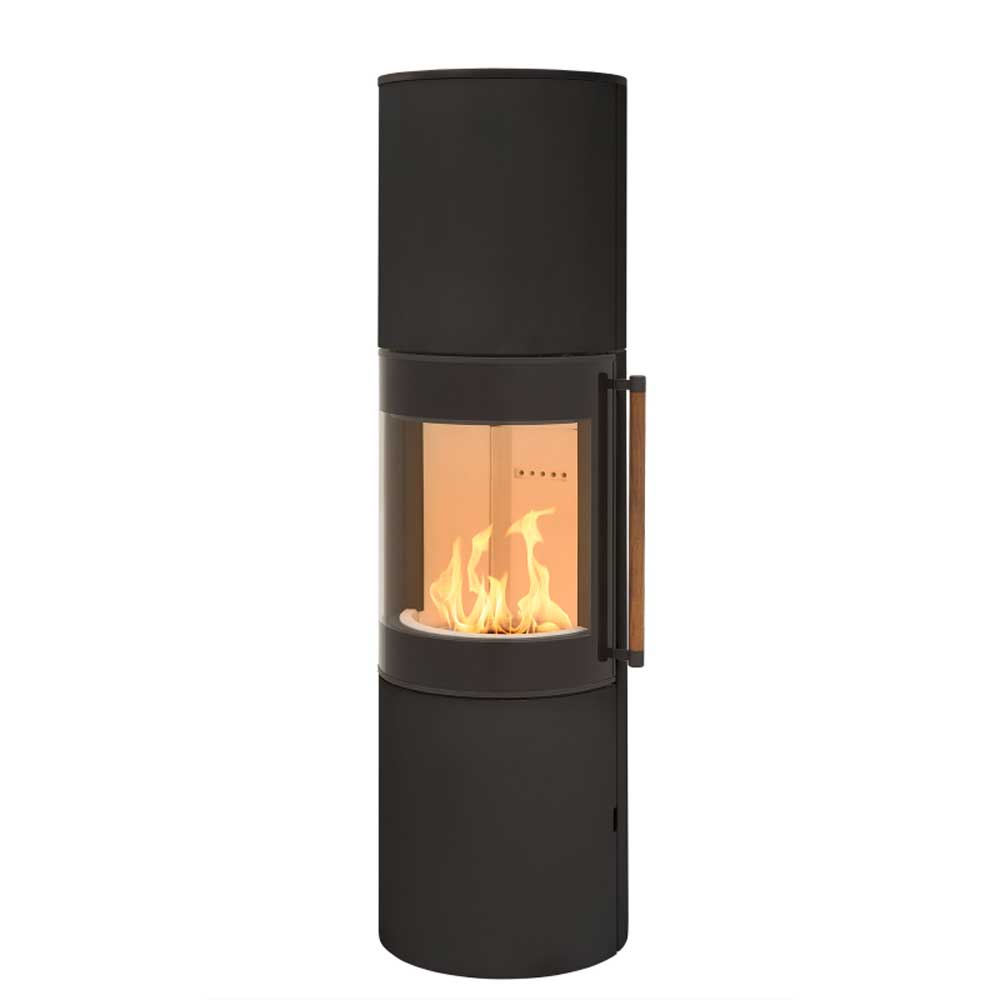

- Elegant wooden door handle

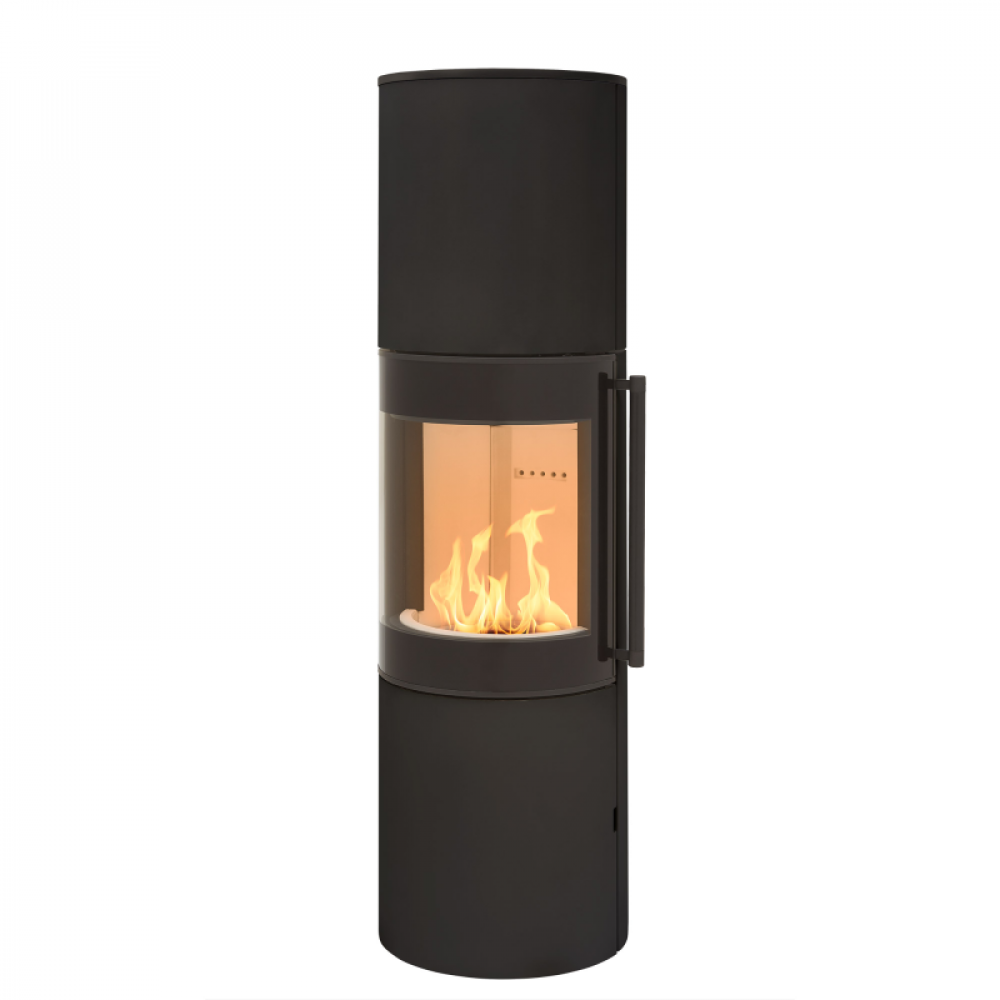

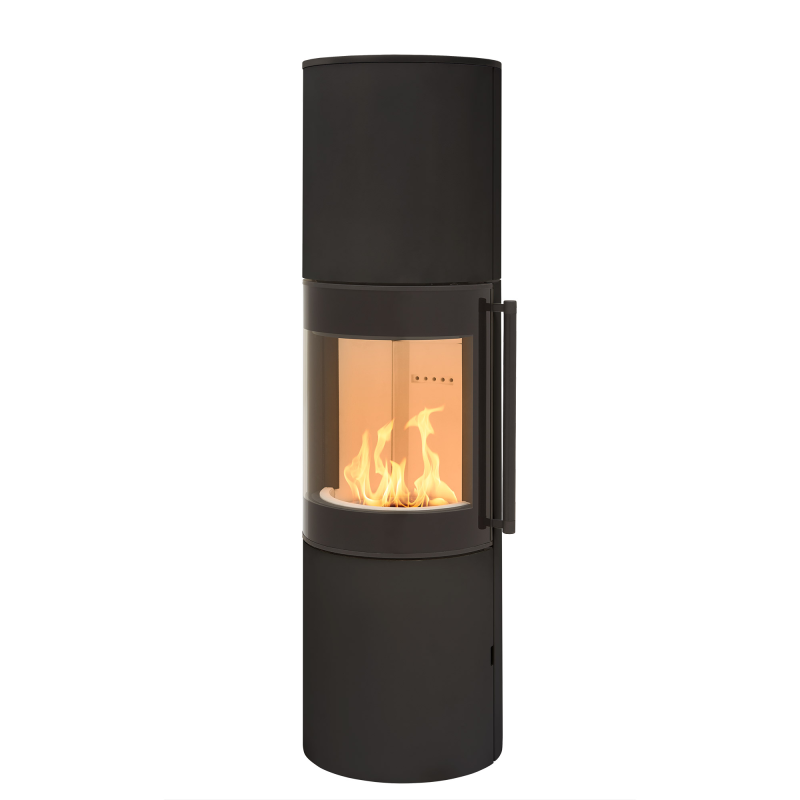

- Optional black steel door handle available
- concealed secondary and primary air adjustment
- Wooden compartment with separate door
Additional optional accessories: an attractive wooden base made of solid oak 4 cm high.
Design and equipment:
- Body: black steel
- Cladding: black steel
- Type: 1 (self-closing door)
- approved for multiple occupancy
- Air regulation: manual
- incl. windshield washer (secondary air supply)
- Smoke pipe outlet: above
- Exhaust connection: Ø150mm
- external combustion air connection: Ø100mm
Dimensions & Weights:
Height: 164.0 cm
Width: 47.2 cm
Depth: 47.2 cm
Weight: 140 kg
max. log length: 33 cm
Firebox height/width/depth: 40.0 cm / 34.0 cm / 34.0 cm
Distance to combustible components to the rear/side/front: 20 cm/20 cm/80 cm
Performance data:
Rated heat output: 7 kw
Power range: 3.5-7.3 kw
Wood loading quantity: 1.64 kg/hr.
Efficiency: 78.94 %
Exhaust mass flow: 6.6 g/s
Exhaust gas temperature: 293°
Delivery pressure: 12 Pa
Fine dust: 24.0 mg/m³
Approvals:
Fireplace according to DIN EN13240
BImschV: yes, 2nd level
DIBT (independent of room air): no
(Design changes and minor dimensional deviations possible)
Shipping conditions
Delivery is only possible within Germany.Other countries only on request; pick up is also possible!
Shipping costs (including statutory VAT)
Deliveries within Germany:
We calculate the shipping costs based on the order value (gross goods value):
up to a goods value of 99.99 EUR = 6.90 EUR
free shipping within Germany from a goods value of 100 EUR
Manufacturer:
Hagemann & Machmer GmbH
Geschäftsführer: Rainer Machmer
Bahnhofstr. 81
32257 Bünde
Deutschland
www.minimum-gmbh.de
Protective measures/safety instructions for installation (wood fires and stoves)
The following protective measures and safety instructions must be strictly observed:
- Fireplaces may only be installed in rooms and in places where the location, structural circumstances and type of use do not present any hazards.
- No modifications may be made to the appliance.
- Only use the approved system for exhaust gas removal/combustion air supply.
- Work on the stove system Installation, commissioning, maintenance and servicing work on the appliance may only be carried out by an authorized specialist company.
as the safety and functionality of the system depend on proper installation. - The installation must be carried out by a registered specialist company, as the safety and functionality of the system depend on proper installation. You must observe the applicable trade regulations and building regulations.
- Fireplaces must be installed in an operationally safe and fireproof manner so that hazards and unreasonable nuisances cannot occur. They must be fit for purpose for a reasonable period of time.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
