neocube Stove S20

neocube Stove S20

neocube - design, quality & efficiency in perfection

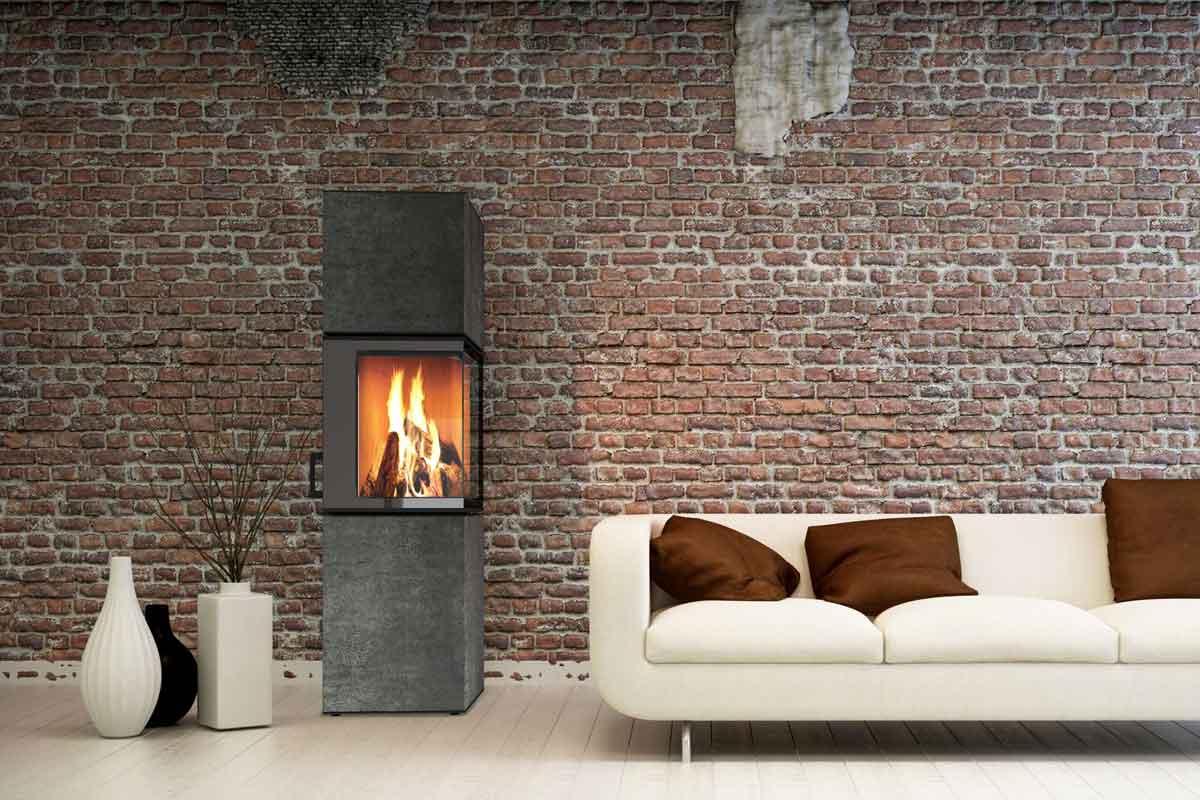

The basic model S20 in the Style series stands out with its right-facing corner window. The simple stove impresses with its modern cubic design and is ideal for minimalist room concepts.
The seven neocube series offer a total of 34 different models that combine maximum individuality and quality. Each model is available in eight elegant sintered ceramic surfaces and sets stylish accents in any living space.

Thanks to the perfectly matched, high-quality components, all neocube models can be installed quickly and easily - in just a few hours, without any mess.

Technology meets design

• Excellent combustion technology for maximum efficiency
• Industrial quality for long-lasting perfection
• Simple installation thanks to clever design
• Excellent price-performance ratio

 + Impressive design - consisting of the most modern and highest quality materials.
 + Prefabricated to the highest industrial quality. Installed in a short time without creating dirt.
 + At a great all-inclusive price. This is neocube - modern style of fire.

NOTE: the ceramics can be composed of 2 different colours (top different from bottom); so it is impossible to show all possible combinations here. Please enquire, thank you.

Technical Data

• Manufacturer: cb-tec
• Energy efficiency class : A+
• Nominal heat output (closed) kW: 5.4
• Heat output min./max. kW: 4.5 - 7.0
• Efficiency % : >80
• Fuel: Logs
• Combustion system: Closed combustion
• Can also be operated independently of room air thanks to DIBt approval
• Combustion air requirement, m3/h: 20.1
• Glass version: Standard glass
• Door design: Sliding door
• Flue pipe connection diameter mm: 150
• Flue pipe connection: rear
• Supply air connection at the rear: 100 mm
• Dimensions W/H/D mm: 400/1500/400
• Weight kg: approx. 150
• Operation possible with type A1 : yes
• Operation possible with type A : --
• Tests: BImSchV. 1st + 2nd stage, DIN EN 13240 + 13229, Aachener/Münchener/Regensburger Verordnung, Art. 15 a B-VG (Austria), DIN+, DIBt

Optional accessories:
Additional storage, approx. 30 kg (only SXL models)
Glass spark protection plates

The standard spark protection panel** t = 6 mm with bevelled edge or facet is available for every neocube model, as are the matching two-part glass spark protection and front panels made to measure as summer and winter panels/front panels. Other designs are available on request.

** Application: in front of straight and non-heat-insulated walls. Other applications possible on request.

neocube - sintered ceramic | basic range (included in the standard price):
ARCTIC WHITE / JUST WHITE / PHEDRA / ROVERE BUCKSKIN / BARRO / IRON GREY / NERO ZIMBABWE

Further 24 colours & finishes available at an extra charge (see options + pictures)

Important note: Before purchasing, please speak to your local district chimney sweep and obtain authorisation from them to operate the desired fireplace.
