Spartherm Stove CUBO L

Spartherm Stove CUBO L RLA/RLU

The LIVING FIRE stoves* from Spartherm stand for modern flame play and exclusive elegance and bring a unique atmosphere into your home with their innovative technology and sophisticated design. Manufactured in Germany and equipped with high-quality materials, these wood-burning stoves offer a perfect combination of sustainability and individual style.

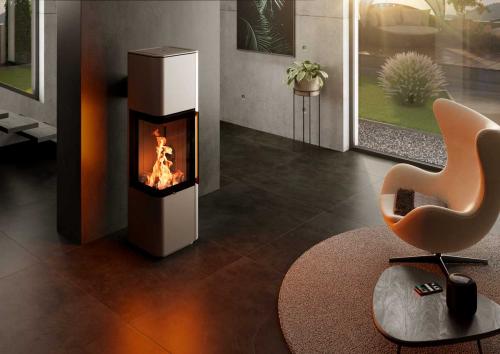

With its soft edges, this stove offers you a view of the fire from several sides. The overlapping glazing loosens up the design of the modern Cubo L and gives you a wonderful view of the fire. For lasting pleasure, the Cubo L comes with an optional 51 kilogram heat accumulator. Soft shell, hot core.

Highlights of the LIVING FIRE stoves:
- Customisable design: for a personalised experience, many models in the LIVING FIRE range can be adapted. Whether in the choice of materials, size or specific design details - each stove can be customised to fit harmoniously into a wide variety of room concepts.
- S-Thermatik NEO basic combustion control: This innovative control system ensures particularly efficient combustion by making optimum use of the fuel. The system reduces emissions and promotes even combustion - a sustainable option that helps to conserve resources and maximise heating output.
- Optional heat storage system: Heat storage elements are available on request for extended heat output. They retain the heat even after the fire has gone out, creating a long-lasting, cosy ambience in the room.
- The elegance of the round shape: Models such as the Ambiente impress with their round shape and clear lines. Their minimalist design blends stylishly into any interior design concept - from modern to classic. The Ambiente wood-burning stove has an elegant presence, but remains discreet and does not take away from the openness of the room.

A LIVING FIRE wood-burning stove from Spartherm transforms any room into a stylish, cosy retreat.

Technical Data

• Manufacturer: SPARTHERM
• Energy efficiency class : A+
• Nominal heat output (closed) kW: 5.9
• Heat output range kW: 4.5 - 7.7
• Efficiency % : >80
• Fuel: Logs
• Combustion system: Closed combustion, dependent on room air or independent (RLU)
• Glass version: Standard glass, 1-piece
• Door design: Hinged door
• Flue pipe connection diameter mm: 150
• Flue pipe connection top/rear: yes/yes
• Supply air connection: yes 100 mm
• Dimensions W/H/D mm: 406/1436/406
• Weight kg: 180
• Material: Steel body
• Combustion chamber lining: heat-resistant fireclay Colour ivory (optional anthracite)
• Tests: BImSchV. 2nd stage, DIN EN 13240, Aachen/Munich/Regensburg regulation, Ecodesign 2022,
• Operation possible with type A1 : yes
• Operation possible with type A : --
• Windscreen flushing: yes

Optional accessories:
Storage on top
Stainless steel railing handle
Glass shelf
black eboris 1300 ultra

Smart fireplace assistance functions
S-Thermatic NEO basic
S-USI II for wood-burning stoves (factory-fitted)


Important note: Before purchasing, please speak to your local district chimney sweep and obtain authorisation from them to operate the desired fireplace.
