Spartherm Stove PASSO S

Spartherm Stove PASSO S

The LIVING FIRE stoves* from Spartherm stand for modern flame play and exclusive elegance and bring a unique atmosphere into your home with their innovative technology and sophisticated design. Manufactured in Germany and equipped with high-quality materials, these wood-burning stoves offer a perfect combination of sustainability and individual style.

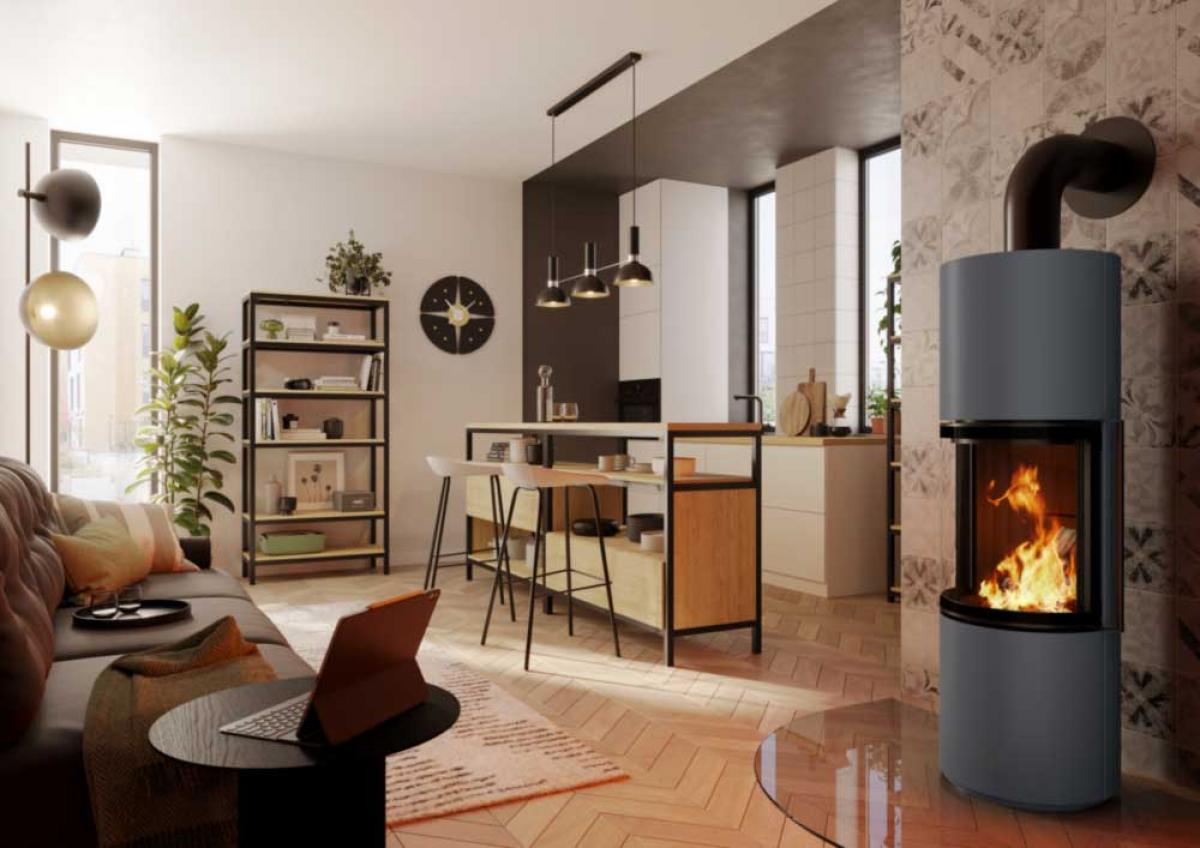

The round body shape is what makes this modern stove so charming. Clear lines and a no-frills design also ensure that it harmonises with a wide variety of furnishing concepts. This wood-burning stove is present, but as a slim column it is also elegant and not too dominant. The fire is literally at the centre of the stove and can present its fascination in 180 degrees of the room. A timeless stove that you will love for a long time.

Highlights of the LIVING FIRE stoves:
- Customisable design: for a personalised experience, many models in the LIVING FIRE range can be adapted. Whether in the choice of materials, size or specific design details - each stove can be customised to fit harmoniously into a wide variety of room concepts.
- S-Thermatik NEO basic combustion control: This innovative control system ensures particularly efficient combustion by making optimum use of the fuel. The system reduces emissions and promotes even combustion - a sustainable option that helps to conserve resources and maximise heating output.
- Optional heat storage system: Heat storage elements are available on request for extended heat output. They retain the heat even after the fire has gone out, creating a long-lasting, cosy ambience in the room.
- The elegance of the round shape: Models such as the Ambiente impress with their round shape and clear lines. Their minimalist design blends stylishly into any interior design concept - from modern to classic. The Ambiente wood-burning stove has an elegant presence, but remains discreet and does not take away from the openness of the room.

A LIVING FIRE wood-burning stove from Spartherm transforms any room into a stylish, cosy retreat.

Technical Data

• Manufacturer: SPARTHERM
• Energy efficiency class : A
• Nominal heat output (closed) kW: 6.1
• Heat output range kW: 4.5 - 7.9
• Efficiency % : 80
• Fuel: Logs
• Combustion system: Closed combustion, dependent on room air or independent (RLU)
• Glass version: Standard glass, 1-piece
• Door design: Hinged door
• Flue pipe connection diameter mm: 150
• Flue pipe connection top/rear: yes/yes
• Supply air connection: yes 100 mm
• Dimensions W/H/D mm: 481/1436/481
• Weight kg: 160
• Material: Steel body
• Combustion chamber lining: heat-resistant fireclay Colour ivory (optional anthracite)
• Tests: BImSchV. 2nd stage, DIN EN 13240, Aachen/Munich/Regensburg regulation, Ecodesign 2022,
• Operation possible with type A1 : yes
• Operation possible with type A : --
• Windscreen flushing: yes

Optional accessories:
Stainless steel railing handle
Glass shelf
black eboris 1300 ultra
Turntable (only for RLA, cannot be combined with glass shelfs)
ROBAX NightFlame® from SCHOTT

Smart fireplace assistance functions
S-Thermatic NEO basic
S-USI II for wood-burning stoves (factory-fitted)


Important note: Before purchasing, please speak to your local district chimney sweep and obtain authorisation from them to operate the desired fireplace.
