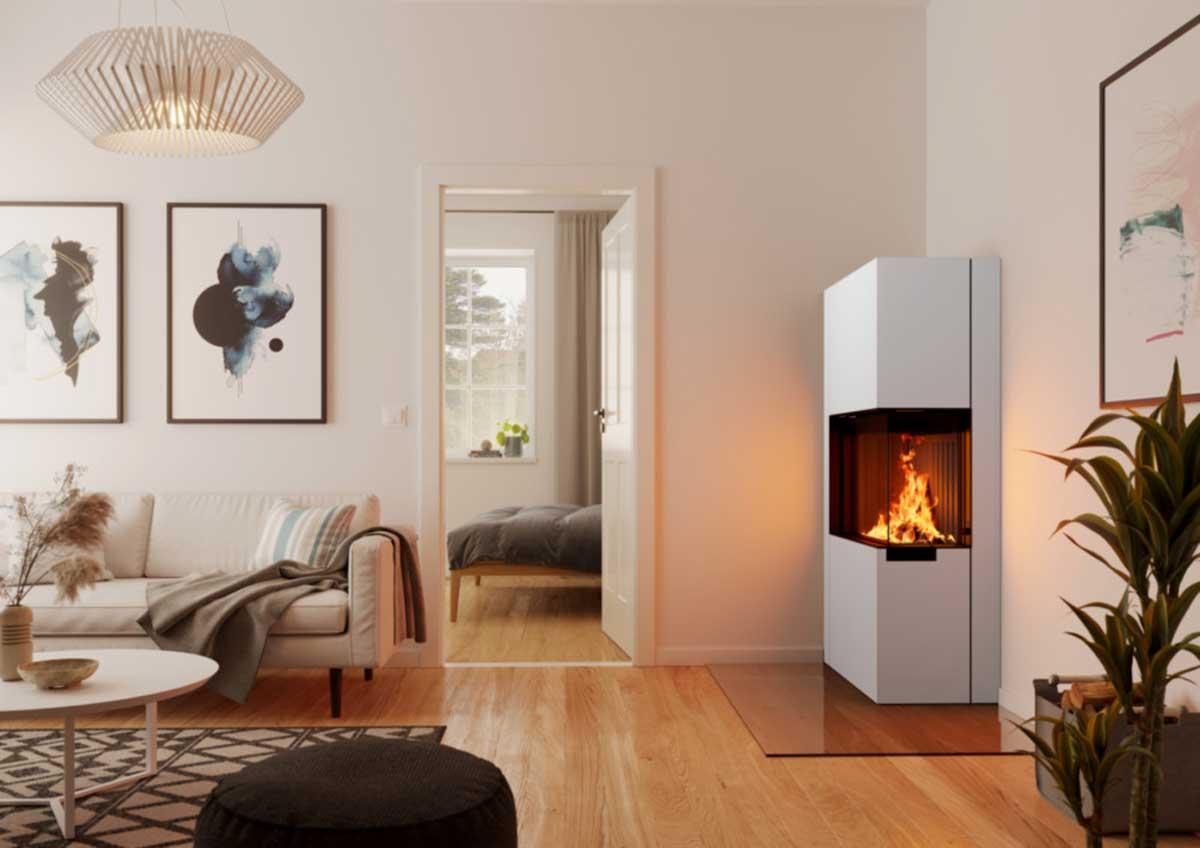

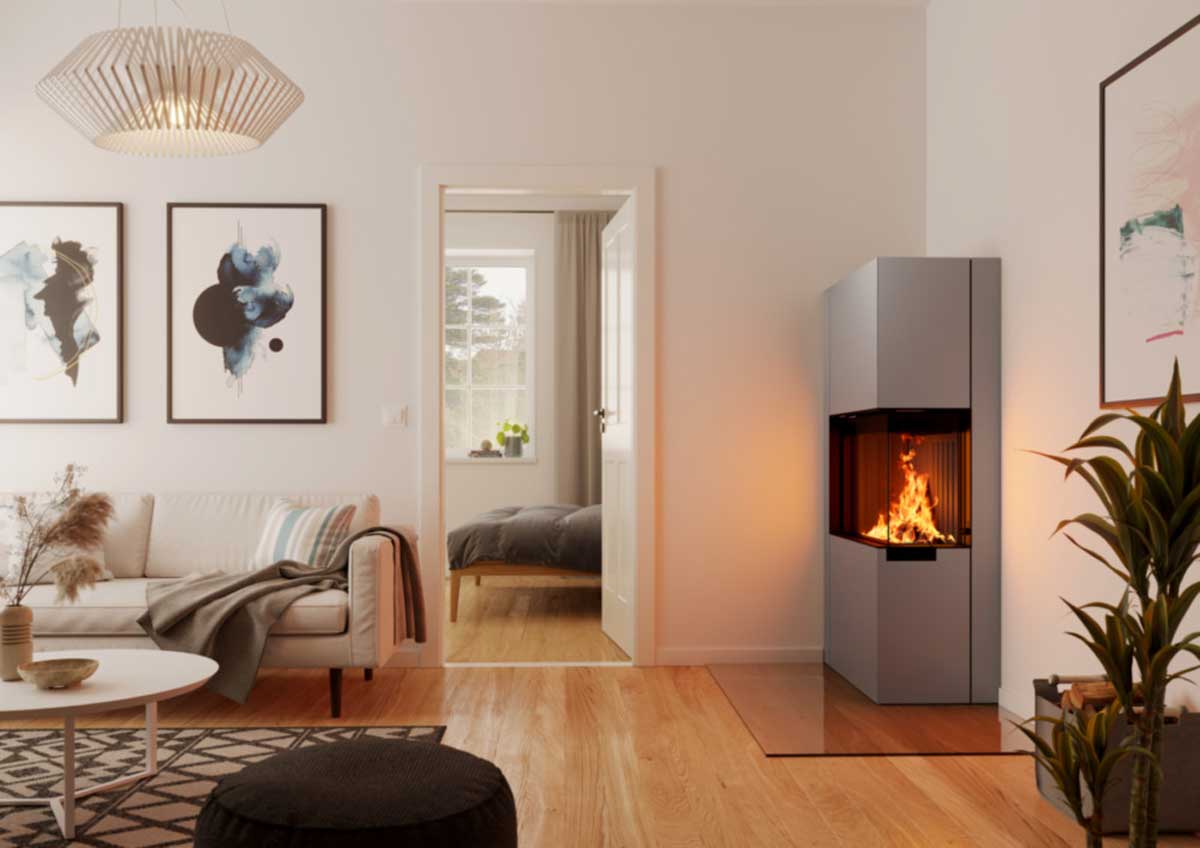

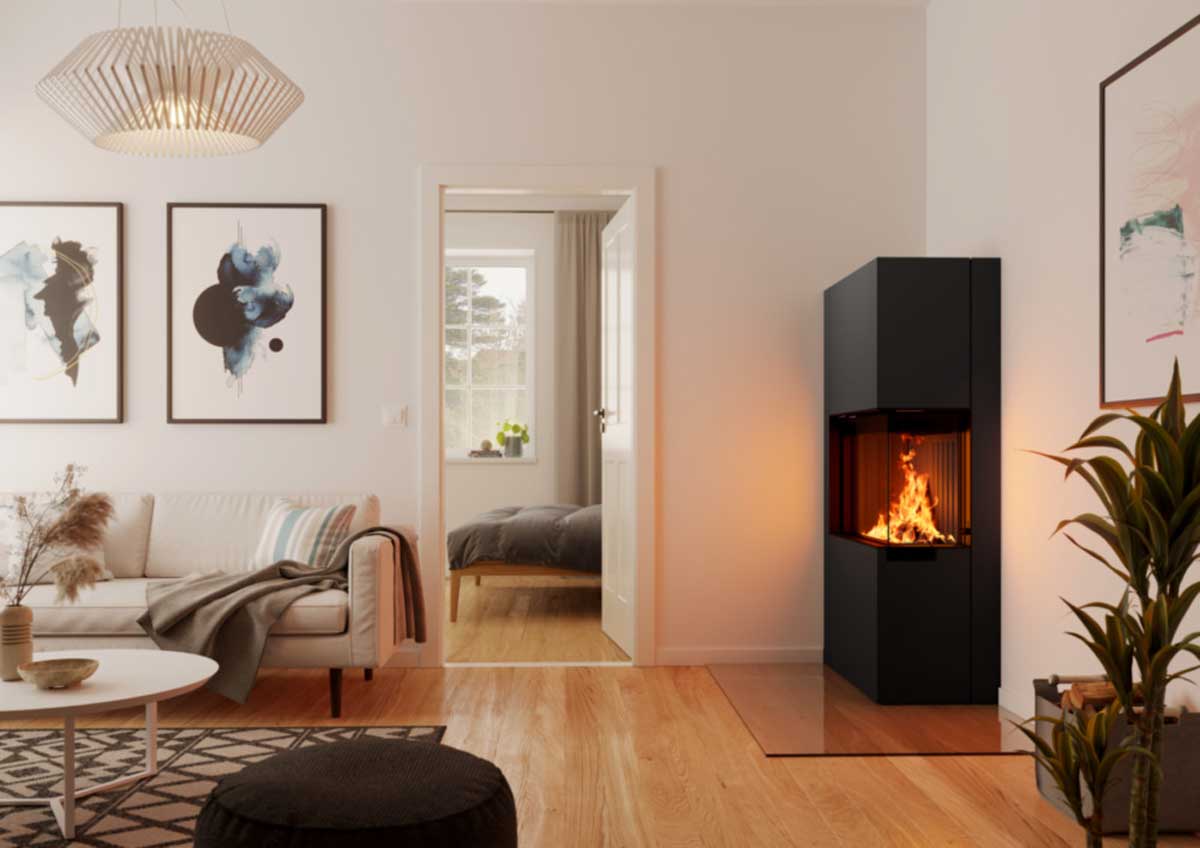

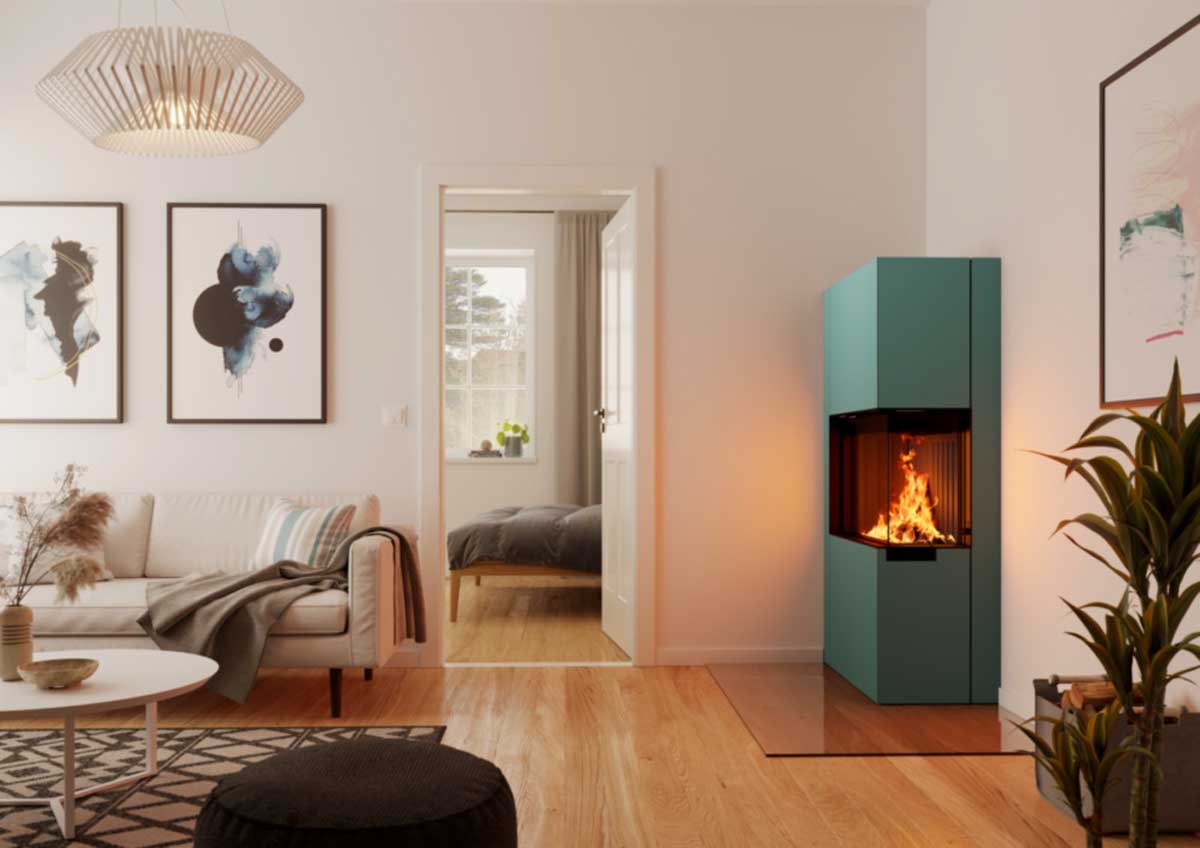

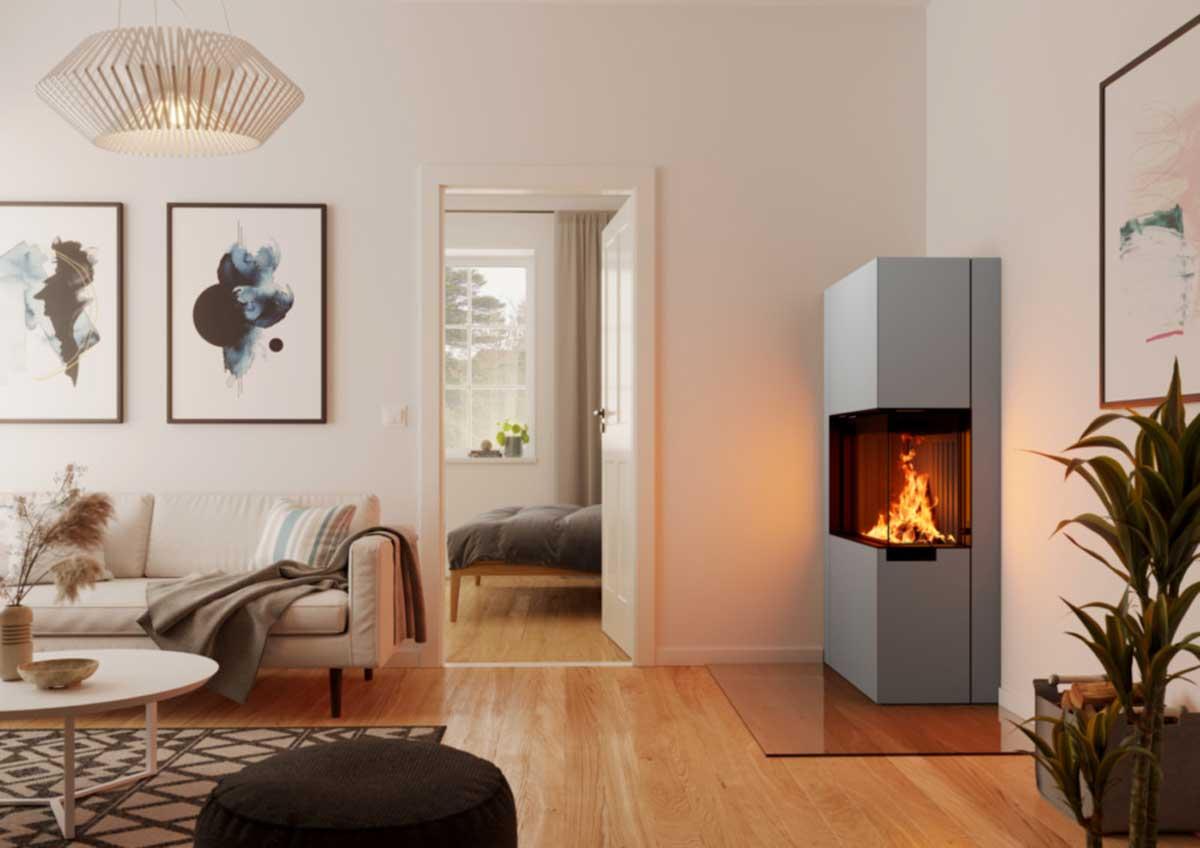

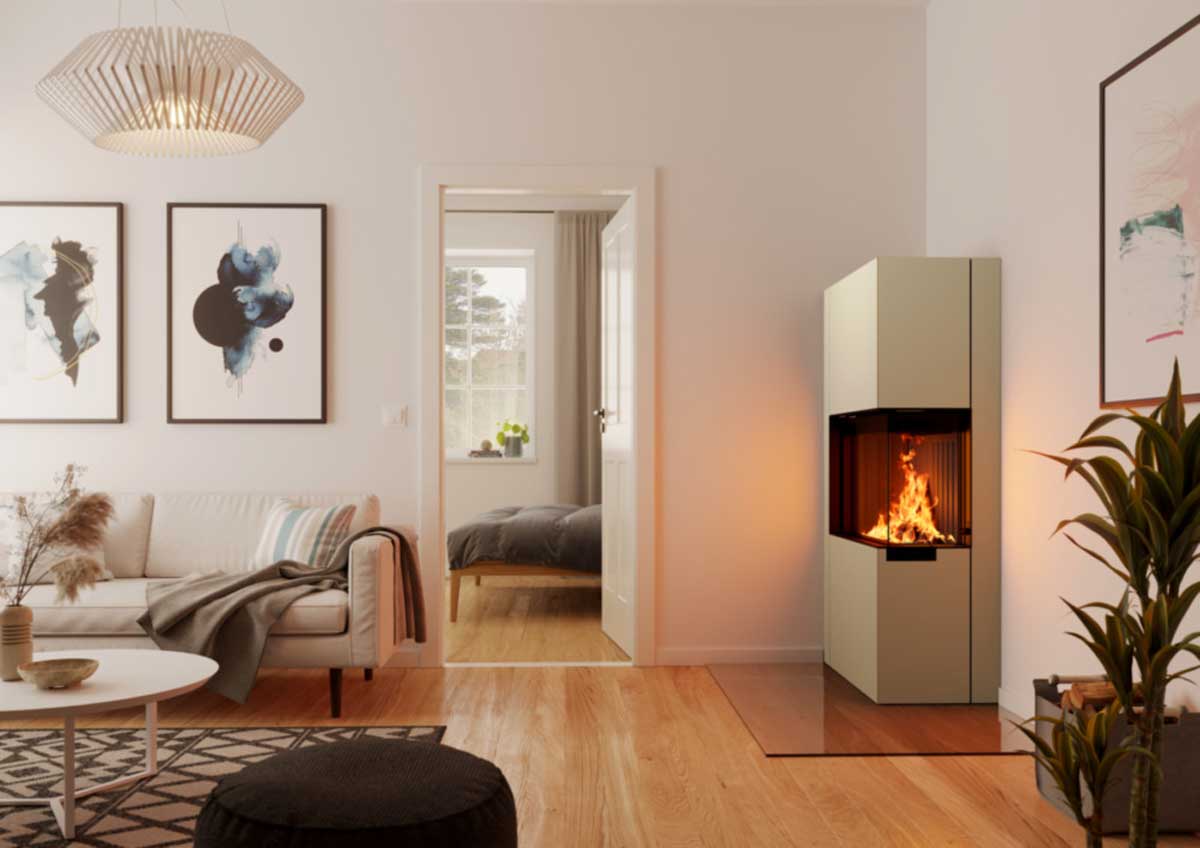

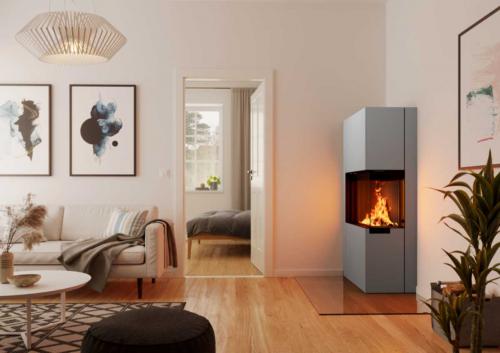

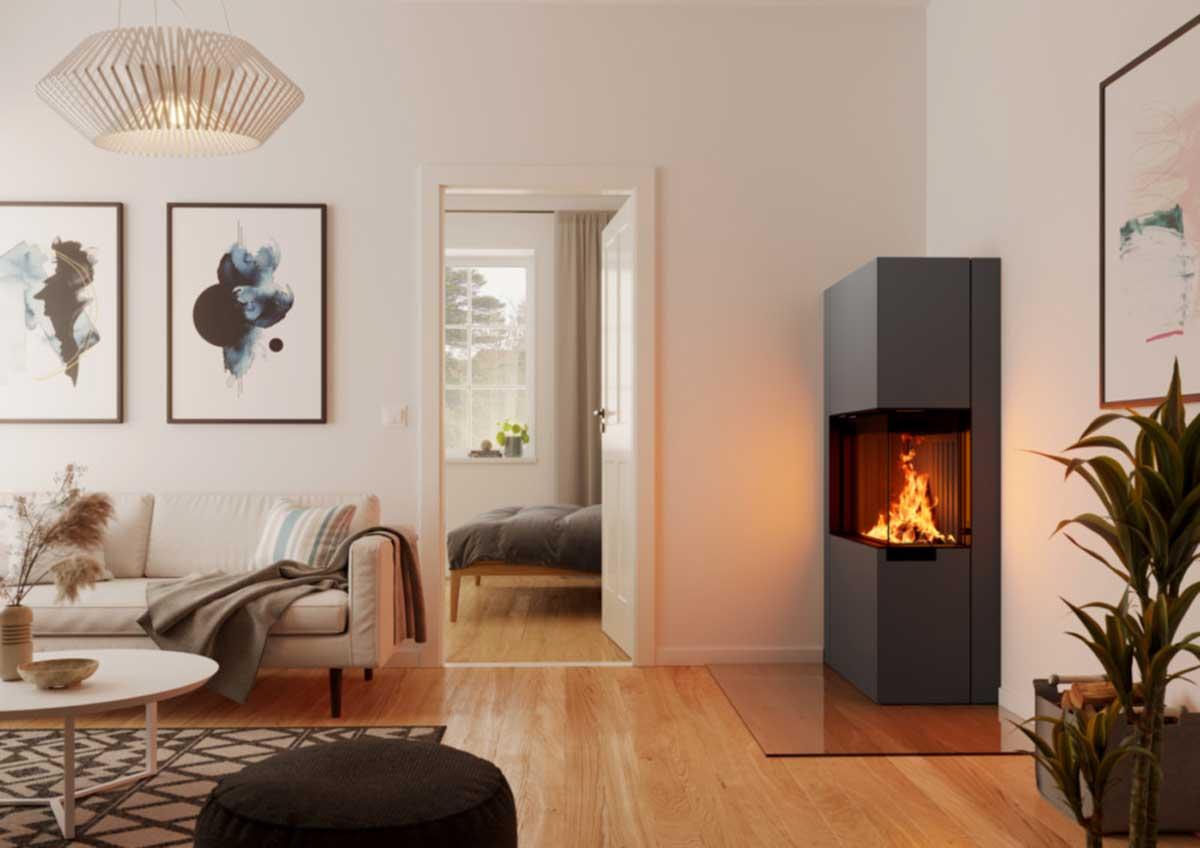

Spartherm Stove ZIRKON 2R
Zirkon 2R: Imposing, powerful and timelessly beautiful with view from 2 sidesThe five fireplace systems Poseidon, Zirkon, Apollon, Ares and Artemis not only combine proven Spartherm premium quality with maximum ease of use, but also set completely new design accents with their successful symphony of imposing size and linear elegance.
A unique feature of these models is that they can be installed directly in front of the wall - without the wall clearance required by conventional stoves. This is made possible by innovative rear insulation, which ensures maximum space savings and stylish integration.
Other patented Spartherm innovations such as the all-round panel that automatically lowers when the glass is opened or the smooth-running slide-up technology are included in all models, as are smart fireplace assistance functions that can be operated via smartphone or tablet. So no matter which model you choose: You have arrived at the Olympus of wood-burning stoves!
The LIVING FIRE stoves* from Spartherm stand for modern flame play and exclusive elegance and bring a unique atmosphere into your home with their innovative technology and sophisticated design. Manufactured in Germany and equipped with high-quality materials, these wood-burning stoves offer a perfect combination of sustainability and individual style.
Highlights of the LIVING FIRE stoves:
- Customisable design: for a personalised experience, many models in the LIVING FIRE range can be adapted. Whether in the choice of materials, size or specific design details - each stove can be customised to fit harmoniously into a wide variety of room concepts.
- S-Thermatik NEO basic combustion control: This innovative control system ensures particularly efficient combustion by making optimum use of the fuel. The system reduces emissions and promotes even combustion - a sustainable option that helps to conserve resources and maximise heating output.
- Optional heat storage system: Heat storage elements are available on request for extended heat output. They retain the heat even after the fire has gone out, creating a long-lasting, cosy ambience in the room.
- The elegance of the round shape: Models such as the Ambiente impress with their round shape and clear lines. Their minimalist design blends stylishly into any interior design concept - from modern to classic. The Ambiente wood-burning stove has an elegant presence, but remains discreet and does not take away from the openness of the room.
A LIVING FIRE wood-burning stove from Spartherm transforms any room into a stylish, cosy retreat.
Technical Data
- Manufacturer: SPARTHERM
- Energy efficiency class : A+
- Nominal heat output (closed) kW: 7.9
- Heat output range kW: 5.5 - 10.3
- Efficiency % : 81
- Fuel: Logs
- Combustion system: Closed combustion, dependent on room air
- Glass version: Standard glass, 2-pieces
- Door design: Sliding door
- Flue pipe connection diameter mm: 150
- Flue pipe connection top/rear: yes/yes
- Supply air connection: yes 100 mm
- Dimensions W/H/D mm: 824/1600/444
- Weight kg: 321
- Material: Steel body
- Combustion chamber lining: Eboris ultra colour ivory (optional black)
- Operation possible with type A1 : yes
- Operation possible with type A : --
- Tests: BImSchV. 2nd stage, DIN EN 13240, Aachen/Munich/Regensburg regulation, Ecodesign 2022
Optional accessories:
Rear wall¹ for free-standing installation in cladding color / raw steel
Fireclay black (eboris 1300 ultra)
Glass plate
Storage set on top (only available for free standing version!)
¹ Rear panels designed with a closable lead-through (dummy cover) for connecting the flue gas and combustion air duct.
Rear panels without blind cover (top/bottom connection) available as a special design. Please request these separately.
² If the panelling is installed flush with the wall on one side (on the side or rear wall), the beam protection set MUST also be ordered.
Smart fireplace assistance functions
S-Thermatic NEO
S-Thermatic NEO basic
S-USI II
S-ESAM 3.0
Important note: Before purchasing, please speak to your local district chimney sweep and obtain authorisation from them to operate the desired fireplace.
declaration of performance dimensions assembly instructions
Manufacturer: Spartherm Feuerungstechnik GmbH
Maschweg 38
D-49324 Melle
Tel.: +49 5422 9441-0
Fax: +49 5422 9441-14
www.spartherm.com
Protective measures/safety instructions for installation (wood fires and stoves)
The following protective measures and safety instructions must be strictly observed:
- Fireplaces may only be installed in rooms and in places where the location, structural circumstances and type of use do not present any hazards.
- No modifications may be made to the appliance.
- Only use the approved system for exhaust gas removal/combustion air supply.
- Work on the stove system Installation, commissioning, maintenance and servicing work on the appliance may only be carried out by an authorized specialist company.
as the safety and functionality of the system depend on proper installation. - The installation must be carried out by a registered specialist company, as the safety and functionality of the system depend on proper installation. You must observe the applicable trade regulations and building regulations.
- Fireplaces must be installed in an operationally safe and fireproof manner so that hazards and unreasonable nuisances cannot occur. They must be fit for purpose for a reasonable period of time.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
