Stove GENIUS from CERA Design

Stove GENIUS from CERA Design

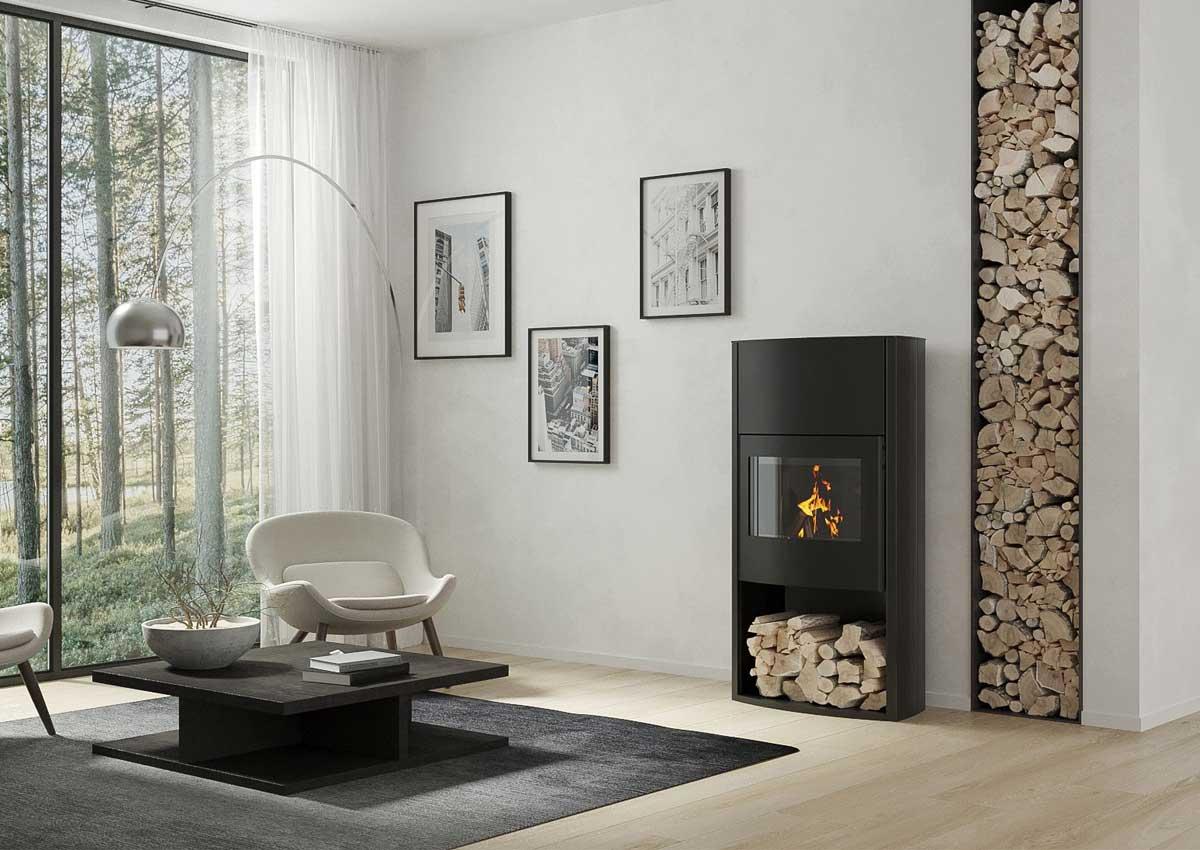

GENIUS wood-burning stove - A masterpiece of warmth and aesthetics.
The GENIUS wood-burning stove is a true masterpiece of warmth. With its optional 100 kg fireclay storage tank, it can store the heat generated for a long time and release it into the room where it is installed in measured doses over many hours. This means that you can continue to benefit from the cosy warmth long after the fire has been lit.
The GENIUS wood-burning stove is not only functional, but also a visual highlight. Its uncluttered front with a large view of the fire gives it a modern and timeless aesthetic that cuts a fine figure in any living room. There is space for wood under the fire, either in the open wood compartment or behind the optional wood compartment door. So you always have enough fuel to hand.

The GENIUS wood-burning stove - sustainable heat for many hours

Product highlights:

✔️ Convection air openings in the cover

✔️ Self-locking door with elegant handle bar

✔️ Easy to control thanks to single-lever operation (primary/secondary air)

✔️ Firebox lining made of high-quality fireclay

✔️ Ash drawer behind the operating door

✔️ Optional heat accumulator / Power-Stone 100 kg

✔️ Large firebox for logs up to 50 cm long

✔️ Long-term heat storage thanks to optional 100 kg storage core, modern design

✔️ Optionally with wood compartment door

Tip: Ideal for passive houses, modern flats or conservatories - where little space but plenty of atmosphere is required.

Technical Data

• Manufacturer: CERA Design
• Energy efficiency class : A
• Nominal heat output (closed) kW: 7.0
• Heat output range kW: 5.0 - 8.0
• Efficiency % : >80
• Fuel: Logs
• Combustion system: Closed combustion, dependent on room air
• Glass version: Standard glass, 1-piece
• Door design: Hinged door
• Flue pipe connection diameter mm: 150
• Flue pipe connection top/rear: yes/yes
• Supply air connection back/bottom: yes 100 mm
• Dimensions W/H/D mm: 145,3 / 76 / 44,3
• Dimension glass height/width:  31.5 / 54
• Weight kg: 180 (280 with storage)
• Material: Steel body
• Tests: BImSchV. 2nd stage, DIN EN 13240, Aachen/Munich/Regensburg regulation, Ecodesign 2022,
• Operation possible with type A1 : yes
• Operation possible with type A : --
• Windscreen flushing: yes

Optional accessories:
Glass lay-on plate made of toughened safety glass, 6 mm, clear
Wood compartment door
Connection set Ø 100 mm for supply air at the bottom or rear
Set of storage stones ‘Power Stone’ 100 kg
Available in these colours: black

Important note: Before purchasing, please speak to your local district chimney sweep and obtain authorisation from them to operate the desired fireplace.

Here is the data for the chimney sweep:
Flue gas mass flow in g/s for NWL: 6.5
Flue gas temperature in °C for NWL: 325
Required conveying pressure for NWL in Pa: 12
BImSchV requirement fulfils stage 2: yes
DIBt approval: -
Fulfilled requirements 15a / Regensburger / Stuttgarter / HKI-Cert: yes all
