PREGO wood-burning stove – Stylish in a small space.The PREGO stove features a 180° glass pane with a generous view of the fire, yet is only 46 cm in diameter. Whether in a small apartment or a spacious living room, the PREGO stove adapts perfectly and ensures a pleasant indoor climate. With a height of 146 cm for the PREGO and PREGO X, and 163 cm for the PREGO XL, the stove is a true highlight in any room.
Thanks to the efficient combustion technology, the heat is optimally utilized and ensures a pleasant room temperature. The PREGO X and XL also have the advantage of a firebox that is approximately 19 cm higher than the PREGO, allowing for an even better view of the flames.
Product highlights:
✔️ Can be used independently of room air (optional, DIBt tested)
✔️ Self-locking door with wooden handle - safe & convenient
✔️ Easy to control thanks to single-lever operation (primary/secondary air)
✔️ Elegant firebox lining made of Thermotte® in white
✔️ Optional heat accumulator and closable convection air openings / Power-Stone 50 kg
✔️ Optionally with 60° turntable (can be swivelled to the left and right)
✔️ Long-term heat storage thanks to 50kg storage core, modern design
✔️ Free-standing installation, optionally rotatable
Tip: Ideal for passive houses, modern flats or conservatories - where little space but plenty of atmosphere is required.

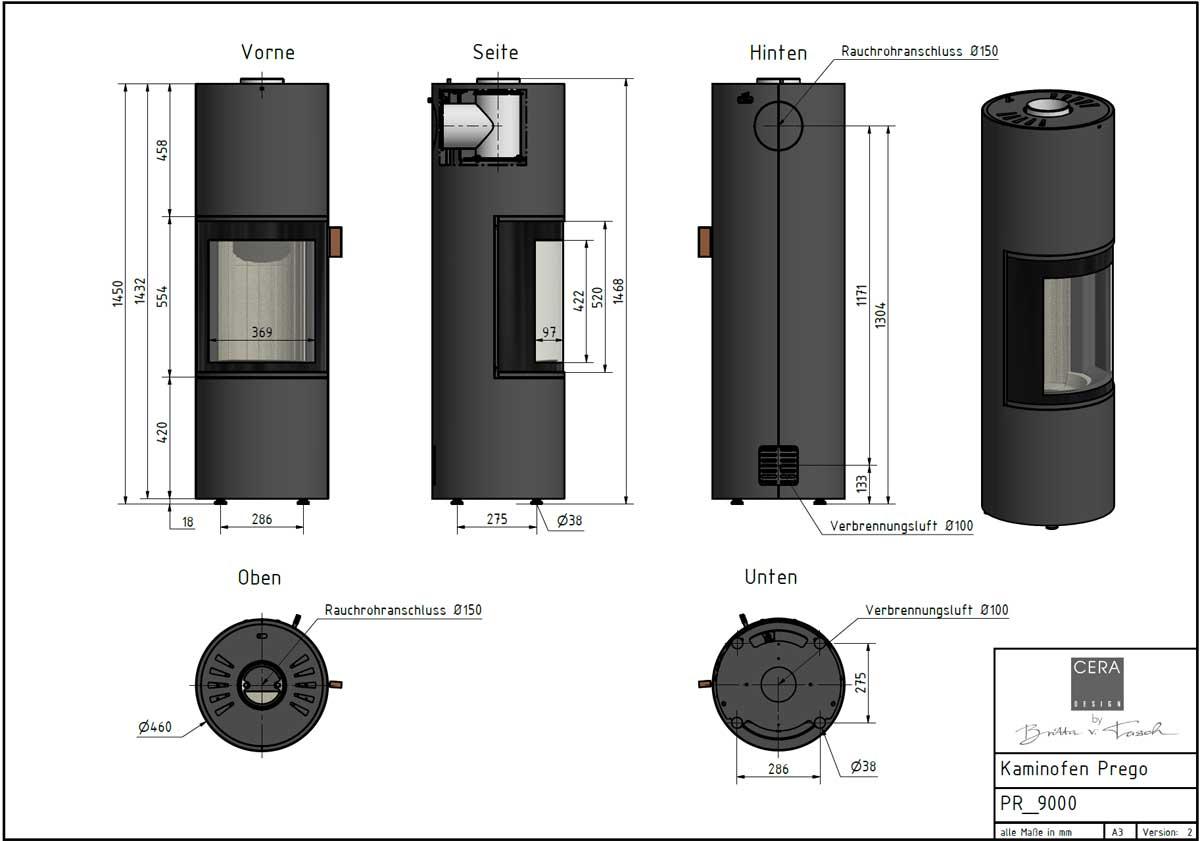

Technical Data
- Manufacturer: CERA Design
- Energy efficiency class : A+
- Nominal heat output (closed) kW: 6.0
- Heat output range kW: 4.0 - 7.0
- Efficiency % : >80
- Fuel: Logs
- Combustion system: Closed combustion, dependent on room air or independent (RLU)
- Glass version: Standard glass, 1-piece
- Door design: Hinged door
- Flue pipe connection diameter mm: 150
- Flue pipe connection top/rear: yes/yes
- Supply air connection back/bottom: yes 100 mm
- Dimensions W/H/D mm: 145 / Ø 46
- Dimension glass height/width: 42 / 44
- Weight kg: 149 (199 with storage)
- Material: Steel body
- Tests: BImSchV. 2nd stage, DIN EN 13240, Aachen/Munich/Regensburg regulation, Ecodesign 2022,
- Operation possible with type A1 : yes
- Operation possible with type A : --
- Windscreen flushing: yes
Glass lay-on plate made of toughened safety glass, 6 mm, clear
Turntable for Prego, incl. swivelling flue gas connection
RLU tested, including air inlet ø 100 mm (not in conjunction with turntable)
Supply air connection, ø 100 mm
Supply air bell (set with adapter) for Prego.
Set of storage stones ‘Power Stone’ 50 kg incl. lockable convection air plate

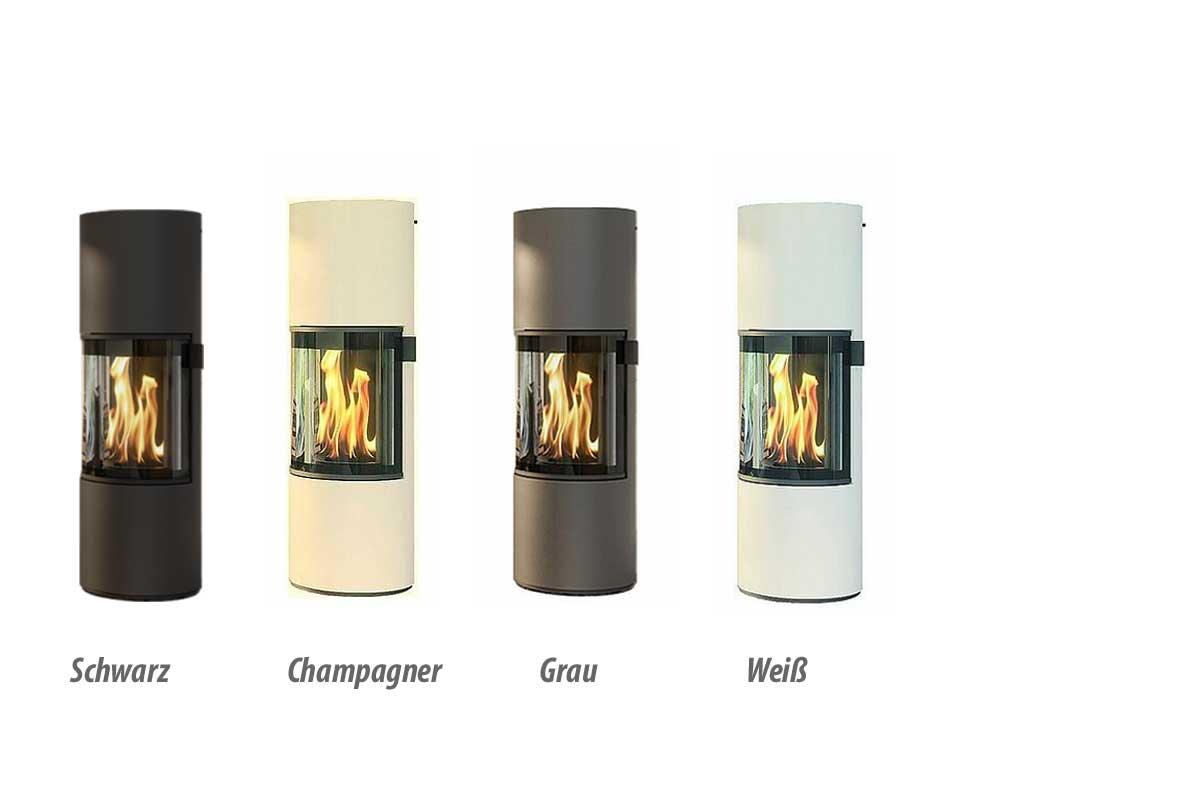

Available in these colours: black, grey, white, champagne
Important note: Before purchasing, please speak to your local district chimney sweep and obtain authorisation from them to operate the desired fireplace.
Here is the data for the chimney sweep:
Flue gas mass flow in g/s for NWL: 4.2
Flue gas temperature in °C for NWL: 348
Required conveying pressure for NWL in Pa: 12
BImSchV requirement fulfils stage 2: yes
DIBt approval: Z-43.12-388
Fulfilled requirements 15a / Regensburger / Stuttgarter / HKI-Cert: yes all
Hersteller:
CERA DESIGN
by Britta von Tasch GmbH
Am Langen Graben 28
D-52353 Düren
H: www.cera.de
Protective measures/safety instructions for installation (wood fires and stoves)
The following protective measures and safety instructions must be strictly observed:
- Fireplaces may only be installed in rooms and places where the location, structural circumstances and type of use do not present a hazard.
- No modifications may be made to the appliance.
- Only use the approved flue gas extraction/combustion air supply system.
- Work on the stove system Installation, commissioning, maintenance and servicing work on the appliance may only be carried out by an authorised specialist company as the safety and functionality of the system depend on proper installation.
- The installation must be carried out by an authorised specialist company, as the safety and functionality of the system depend on proper installation. You must observe the applicable trade regulations and building regulations.
- Fireplaces must be installed in an operationally safe and fireproof manner so that hazards and unreasonable nuisances cannot occur. They must be fit for purpose for a reasonable period of time.
The appliance is designed to create a cosy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance if children, the elderly or physically disabled persons are in the same room as the appliance. If vulnerable persons may regularly be present in the room without supervision, a fixed screen must be fitted around the appliance.
