Tiled Stove LIU from La Nordica
Stove Liu – La Nordica
Stylish design meets efficient warmth
LIU: The comfortable, ergonomic handle, the elegant tile cladding, and the large, fireproof Nordiker firebox with its large, curved panoramic window are some of the details that make this stove an elegant and functional piece of furniture for your home.
Product-Highlights:
- Majolica exterior cladding
- Option to duct outside air directly to the stove's controls
- Wide view of the fire
- Adjustable primary and secondary air flow with a single register for better combustion management
- Removable ash pan
- Stove constructed entirely of enameled cast iron
- Cast iron doors
- Curved ceramic glass
- Afterburning system for low emissions
- Ergonomic handle
- Option to connect external air

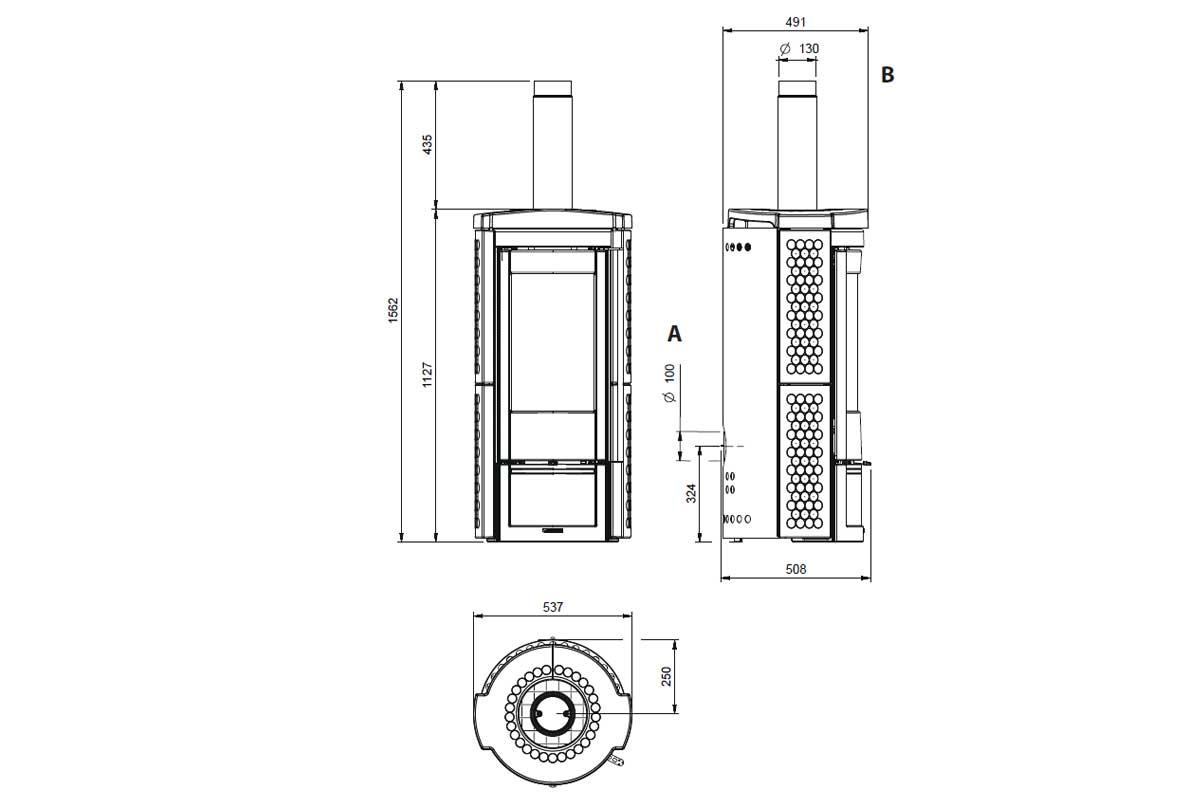

Tecnical Data:
| Characteristics | Value |
|---|---|
| Dimensions (W x H x D) | 528 × 1127 × 490 mm |
| Nominal heat output | 7.5 kW |
| Efficiency | 86.5 % |
| Energy efficiency class | A+ |
| Heating volume (max.) | 215 m³ (*) |
| Hourly fuel consumption | aprox. 2.0 kg/h |
| Exhaust connection (Ø) | 130 mm (on top) |
| Weight | 170 kg |
| Size of combustion chamber opening (WxH) | 270 x 375 mm |
| Firebox size (WxHxD) | 295 x 420 x 310 mm |
| Max. log length | 30 cm |
| Colours | Bordeaux / White |
(*) Calculation basis: 30 kcal/h × m³ – the value is indicative and may vary depending on the building insulation and room conditions.
Certifications: BlmSchV, Ecodesign, Flamme Verte, MFB, Conto Termico 2.0, 15a B-VG
Liu – for all those who want to combine warmth with style and responsibility.
For years, La Nordica Extraflame has been developing and marketing increasingly powerful and efficient wood-burning stoves. Innovations that enable perfect wood combustion, drastically reducing waste, and constant technological modernization, always with a focus on consumer needs, savings and environmental protection, and optimal product performance.
Downloads
declaration of performance
Data sheet
Manual
Ecodesign
declaration of performance Data sheet Manual Ecodesign
Manufacturer:
La Nordica S.p.A.
Via Summano, 104
36030 Montecchio Precalcino VI
info@lanordica.com
Protective measures/safety instructions for installation (wood fires and stoves)
The following protective measures and safety instructions must be strictly observed:
- Fireplaces may only be installed in rooms and in places where the location, structural circumstances and type of use do not present any hazards.
- No modifications may be made to the appliance.
- Only use the approved system for exhaust gas removal/combustion air supply.
- Work on the stove system Installation, commissioning, maintenance and servicing work on the appliance may only be carried out by an authorized specialist company.
as the safety and functionality of the system depend on proper installation. - The installation must be carried out by a registered specialist company, as the safety and functionality of the system depend on proper installation. You must observe the applicable trade regulations and building regulations.
- Fireplaces must be installed in an operationally safe and fireproof manner so that hazards and unreasonable nuisances cannot occur. They must be fit for purpose for a reasonable period of time.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
