GAS FIREPLACE INSERT from BRUNNER Eck-Kamin Gas 48/70/32 left or right

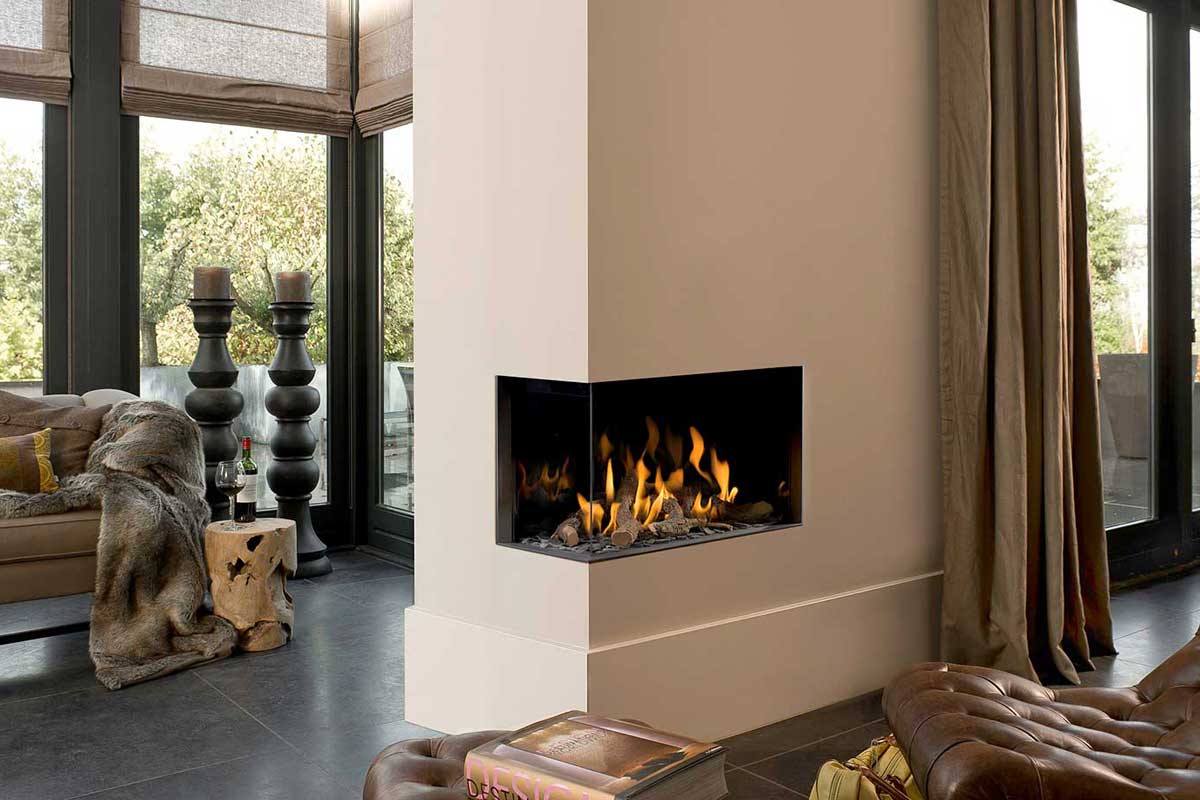

Brunner by Barbas gas fireplaces.The corner fireplaces offer a frontal and one side view of the fire picture; they are available in widths from 66 to 169 cm for maximum fire visibility depending on the space available.
They are available for natural and liquefied gas types within Germany, Austria and Poland:
Erdgas Germany E (G20) formerly Erdgas H
Erdgas Germany LL (G25) formerly Erdgas L
LPG Germany
Natural gas Austria
Liquid gas Austria
Natural gas E Poland
Natural gas Lw Poland
LPG Poland
Technical data (Line Fire):
Nominal power max. kW: G20 / G25 / G30-31 kW: 9 / 8.1 / 8.8 - 7.3
Efficiency class: 1
NOx classification: 5
Gas connection inch: R ½“
Gas consumption natural gas (max.) G20 / G25 m³ / h: 1.1 / 1.13
Gas consumption LPG (max.) G30 / G31 g / h: 860/700
Pressure nominal connection G20 / G25 / G30-31 mbar: 20.0 / 20.0 / 50.0 - 50.0
concentr. Exhaust / combustion air nozzle Ø mm: 130/200 or 100/150
Weight kg: 99
meets requirements / limits for:
Germany: DVGW-TRGI technical rules for gas installations (worksheet G600), FeuVO of the federal states
Austria: ÖVGW guidelines G1 (natural gas) and G2 (liquid gas)
Norway
Set components:

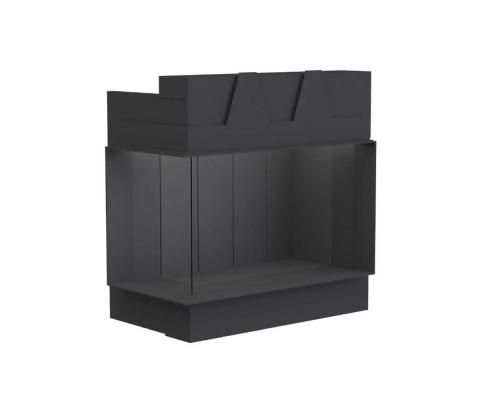

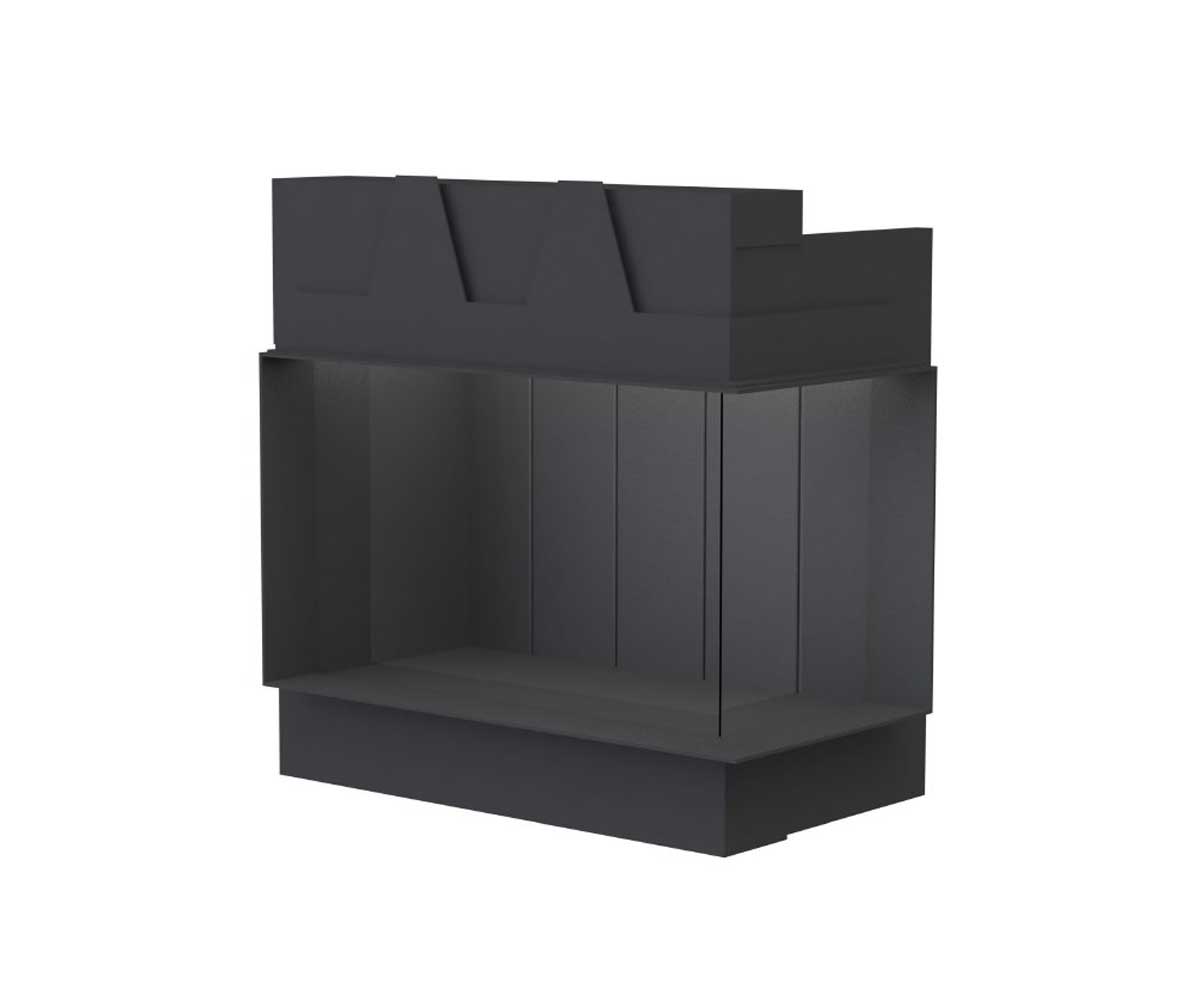

- Corner fireplace: gas 48/70/32 left or right
- burner Line Fire
- Flue gas / combustion air nozzle: 130/200 or 100/150 mm
- Firebox look: imitation wood, marble gravel white / gray
- Firebox lining: seamless black steel or steal panel
- Leveling feet standard
- Frame: add-on frame 0 mm for flush installation of the glass ceramic front
- Remote control: master-control, functions: on / off, programmable timer functions, room temperature control, flame pattern setting
- 6VDC plug-in power supply
- Burner Premium Fire
- Extension frame 70 mm for an individual depth design of the glass ceramic front (as shown)
- Firebox lining: glossy black ceramic glass
- mounted gas hose
- Gas socket DIN 3383, HTB, DN 15 (R 1/2), with TAE, not lockable
- Basic Control remote control (the elegant one) consisting of: Receiver module ready to plug in (circuit board with housing) incl. Power supply and receiver
- Wi-Fi box for Brunner Gas app
Important note: The connection of a gas fireplace may ONLY be carried out by a specialist company!
Brunner gas fireplaces may ONLY be installed with the Brunner LAS flue gas system; otherwise they are not certified and are not permitted.
Shipping conditions
Delivery is only possible within Germany.Other countries only on request; pick up is also possible!
Shipping costs (including statutory VAT)
Deliveries within Germany:
We calculate the shipping costs based on the order value (gross goods value):
up to a goods value of 99.99 EUR = 6.90 EUR
free shipping within Germany from a goods value of 100 EUR
Manufacturer: Ulrich Brunner GmbH, Zellhuber Ring 17-18, 84307 Eggenfelden
Homepage: www.brunner.de
Phone: +49 (0) 8721 771-0
Homepage: www.brunner.de
Phone: +49 (0) 8721 771-0
Protective measures/safety instructions for installing gas fireplaces
The following protective measures and safety instructions must be strictly observed:
- Installation and maintenance of the appliance may only be carried out by a recognized and competent installer in the field of gas heating and electricity.
- No modifications may be made to the appliance.
- Only use the approved flue gas extraction/combustion air supply system.
- Procedure when installing a free-standing appliance: place the appliance at the specified minimum distance from the rear wall (see information in the instructions).
- Do not cover the appliance or wrap it in an insulating blanket or other materials. Ensure that there are no flammable objects and/or materials in the radiation area of the appliance. This radiation range is 500 mm, unless otherwise specified.
- Only use the set included in the scope of delivery, for example the wooden block set or the pebble set, and place it exactly as described.
- Leave the space around the ionizing pin and the ignition pin free and never place any incandescent material around these pins.
- Make sure that the gas pipes and connections are clean and free of any impurities. Install a gas tap in accordance with the applicable regulations.
- Check the entire system for gas leaks before commissioning.
- Check the entire system for gas leaks before commissioning.
- Ensure that the pressure equalization hatch(es) at the top and/or bottom of the appliance are not blocked and check that these hatch(es) are well connected to the sealing surface before installing the appliance.
- Do not ignite the appliance until it has been fully installed in terms of gas technology, exhaust technology and electrical technology.
- Do not use the appliance if a pane is broken and/or cracked. The pane must be replaced first.
How to install a built-in appliance:
- Use fireproof and heat-resistant materials for the fireplace surround, including the top of the fireplace surround and the material inside the fireplace surround, such as the floor under the appliance and the rear wall in front of which the appliance is installed. Both panel materials and stone-like materials can be used for this purpose.
- Take appropriate protective measures to ensure that the wall behind the fireplace surround and the materials or objects located behind the rear wall do not heat up too much.
- Observe the minimum specifications regarding the internal dimensions of the fireplace surround. These have been specified for safety reasons and to avoid extreme heat build-up in the fireplace conversion.
- Ventilate the fireplace conversion using ventilation openings. These openings are crucial for safety and to prevent extreme heat build-up in the fireplace conversion.
- The electrical connections must be heat-resistant.
- Position the heat-resistant power connections away from the appliance and as low as possible in the fireplace surround.
- This applies in connection with the temperature development in the fireplace surround.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
