Gas Fireplace Insert Matrix-Linear 1050-400 III from Faber
Gas Fireplace Insert Matrix-Linear 1050-400 III from Faber
Faber gas fires - individuality meets a luxurious fire experience
Faber gas fires offer an impressive range of customisation options that are perfectly tailored to your personal wishes and living requirements.The MatriX-Linear series - customised luxury for your home

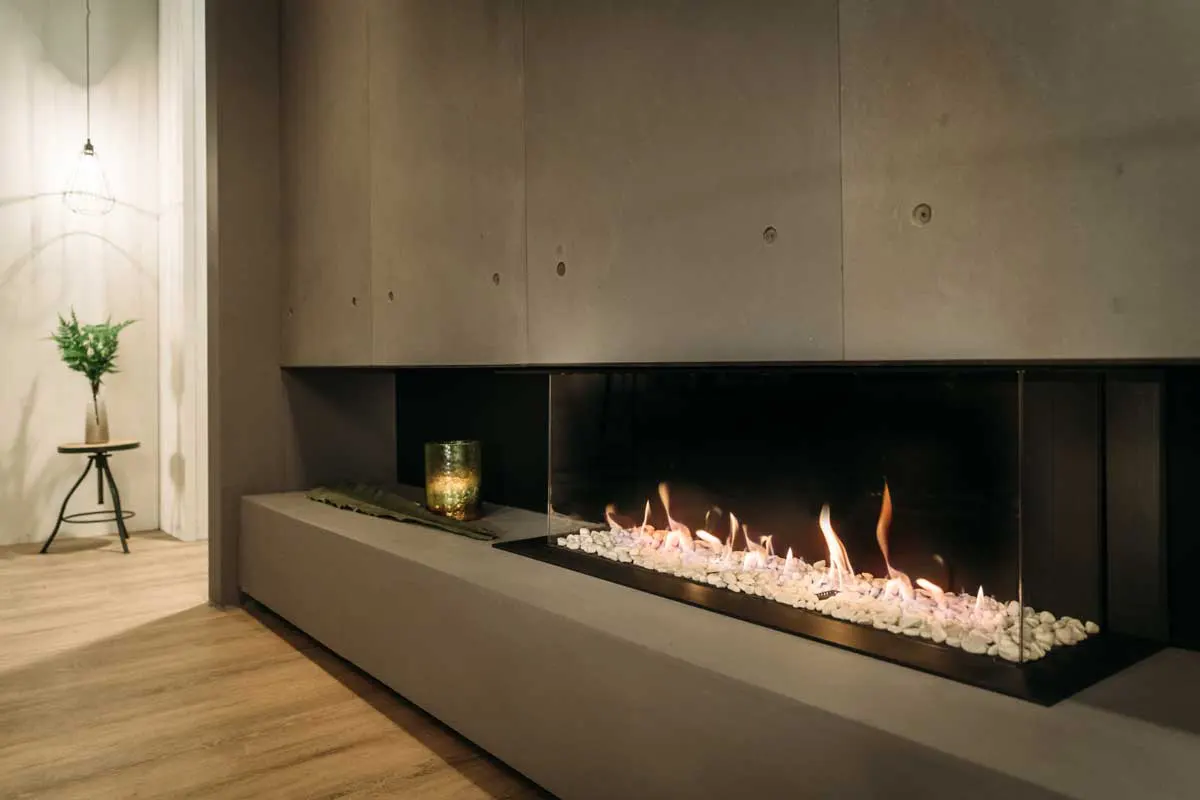

The fireplaces in our Linear series offer a magnificent flame pattern across almost the entire width of the fireplace and at any flame height. Even with minimal heat requirements, the flames in these models really come into their own. Various installation widths are available, each in three installation variants and various interior decors.Special features of the MatriX-Linear_Series:
The burner - Faber Double Line Burner - The fire of the Double Line Burner burns with regular and very full flames across almost the entire width of the fireplace. You can choose whether the
fire should only burn at the front (single line) or also at the back (double line) to achieve a particularly full fire pattern and additional heat. The fire burns within seconds and the height of the flames can be precisely adjusted.
Magnificent fire picture with a wide choice - There are three installation widths to choose from, each with three installation variants and various interior decors. The Linear series fireplaces combine a popular width and height with a generous view of the flames. These models impress with their considerable extra length, emphasizing the low silhouette of the linear surface, while offering the enjoyment of a stylish fire along the entire length of these impressive fireplaces. For decoration, there is a choice of horizontal logs on a romantic bed of embers or a bed of stylish white Carrara pebbles. The most important functions can be easily controlled using the remote control supplied or you can install the Faber app and operate your fireplace using your smartphone or tablet.
Your advantages at a glance:
- Extra wide and low gas fire; up to 130 cm long fire pattern!- Double row of independently switchable burners; for more intense flames and more heat output
- You can choose between luxurious ceramic logs or white Carrara pebbles for a particularly modern and elegant look
- Adjustable heat output; from a maximum of 10 to a minimum of 4 KW
- Available in various sizes and as a front, 2-sided and 3-sided model
Faber gas fires combine timeless design, efficient heat output and versatile customisation options. They transform any room into a stylish oasis of well-being with a very special charm.
Details Gas Fireplace Matrix-Linear 1050/400 III:
- Manufacturer: Faber
- External dimensions W x H x D mm: 1290 x 827 x 452
- Fire view W x H x D mm: 1122 x 400 x 257
- Burner system: Double Line Burner
- Interior decor: Logs or white pebbles
- Fire view: 3-sided
- Rear wall: Flat steel
- Remote control: ITC
- Heating output: 8.7 kW
- Control system: Honeywell
- Flue gas diameter in mm: 130/200
- App control: yes
- Installation frame: 50 mm
- Energy efficiency class:
Manufacturer: Glen Dimplex Benelux
Flame Europe
Saturnus 8
8448 CC Heerenveen
Netherlands
Phone +31 513 656 500
www.faberfires.com
Danger and warning notices for effect burners (electric fires)
- These appliances must not be used unsupervised by children or disabled persons.
- The design of the appliances must not be modified.
- Only spare parts approved by the manufacturer may be fitted.
- Read the operating instructions carefully before use.
- Do not place any flammable objects in or on the appliance.
- Never cover the appliance.
Protective measures/safety instructions during installation of gas fireplaces
The following protective measures and safety instructions must be strictly observed:
- Installation and maintenance of the appliance may only be carried out by a recognized and competent installer in the field of gas heating and electricity.
- No modifications may be made to the appliance.
- Only use the flue gas extraction/combustion air supply system supplied by DRU.
- Procedure for installing a freestanding appliance: place the appliance at the specified minimum distance from the rear wall (see the information later in this text).
- Do not cover the appliance or wrap it in an insulating blanket or other materials. Ensure that there are no flammable objects and/or materials in the radiation area of the appliance. This radiation range is 500 mm, unless otherwise specified.
- Only use the set included in the scope of delivery, for example the wooden block set or the pebble set, and place it exactly as described.
- Leave the space around the ionizing pin and the ignition pin free and never place any incandescent material around these pins.
- Make sure that the gas pipes and connections are clean and free of any impurities. Install a gas tap in accordance with the applicable regulations.
- Check the entire system for gas leaks before commissioning.
- Make sure that the pressure equalization hatch(es) on the top and/or bottom of the appliance are not blocked and check that these hatch(es) are well connected to the sealing surface before installing the appliance.
- Do not ignite the appliance until it has been fully installed in terms of gas technology, exhaust technology and electrical technology; first go through the procedure described in chapter 7.3 of the instructions.
- Do not use the appliance if a pane is broken and/or cracked. The pane must be replaced first.
Procedure for installing a built-in appliance:
- Use fireproof and heat-resistant materials for the fireplace surround, including the top of the fireplace surround and the material inside the fireplace surround, such as the floor under the appliance and the rear wall in front of which the appliance is installed. Both panel materials and stone-like materials can be used for this purpose.
- Take appropriate protective measures to ensure that the wall behind the fireplace surround and the materials or objects located behind the rear wall do not heat up too much.
- Observe the minimum specifications regarding the internal dimensions of the fireplace surround. These have been specified for safety reasons and to avoid extreme heat build-up in the fireplace conversion.
- Ventilate the fireplace conversion using ventilation openings (see instructions). These openings are crucial for safety and to prevent extreme heat build-up in the fireplace conversion.
- The electrical connections must be heat-resistant.
- Position the heat-resistant power connections away from the appliance and as low as possible in the fireplace surround.
- This applies in connection with the temperature development in the fireplace surround.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance if children, the elderly or the physically disabled are in the same room as the appliance. If vulnerable persons may regularly be present in the room without supervision, a fixed screen must be fitted around the appliance.
