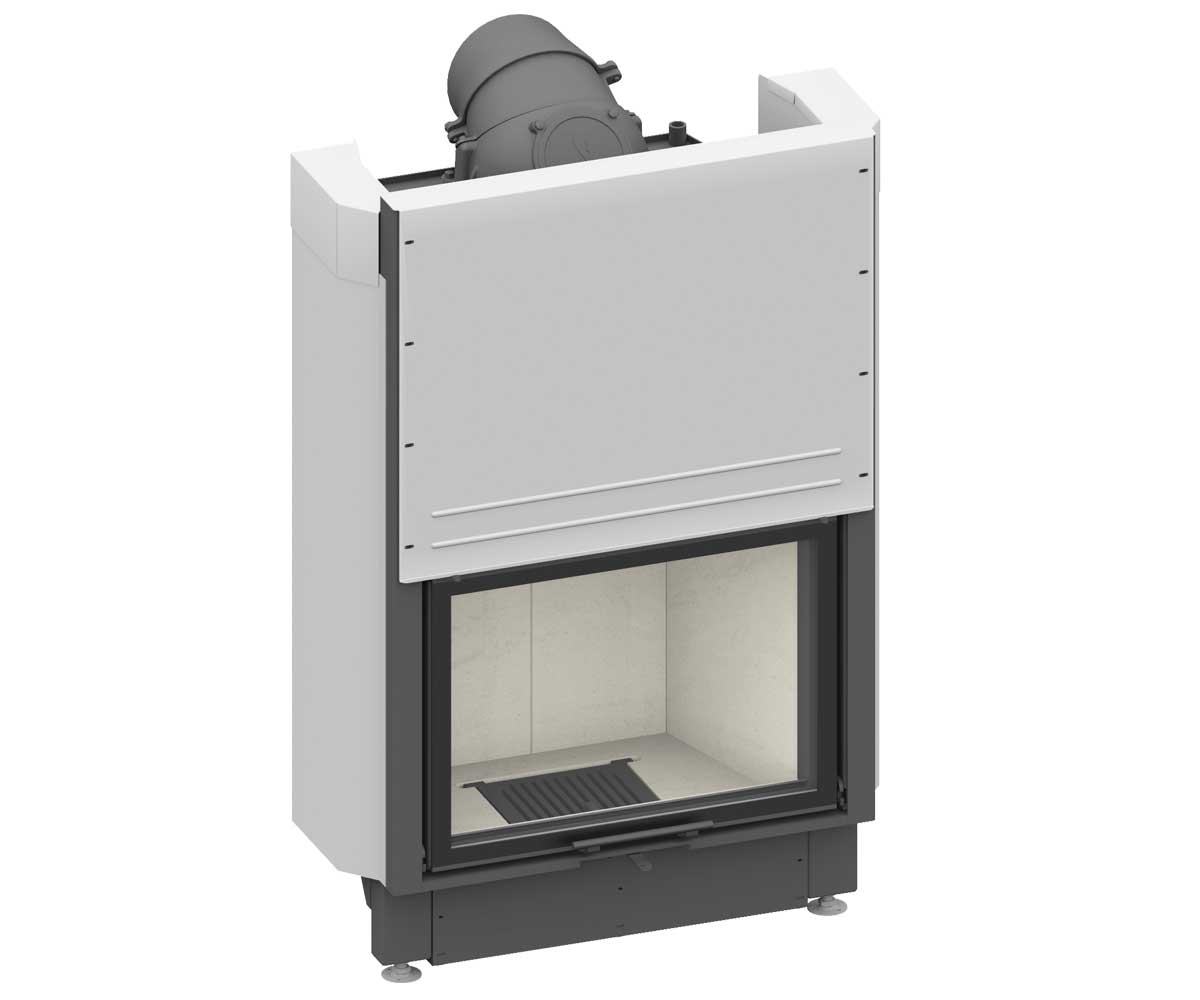

Camina-Schmid Lina W 6751h
Fireplace inserts with water heating
Lina fireplaces represent the traditional way of heating and combine this with elegance in equal measure. With a variety of different sizes, it is possible to give free rein to individual design.
Immerse yourself in the variety of high-quality fireplace inserts from Camina-Schmid. Create a warm and stylish ambience with a fireplace insert from Camina-Schmid that will enhance your living space in a special way. From modern designs to classic versions, Camina-Schmid offers you a wide range of options.
wide range of options. Let yourself be inspired by the large selection.
Wood - a step towards independence
In contrast to the fossil fuels oil and gas, wood is a regenerative raw material. Fireplaces are therefore an ideal complement to preferred heat sources such as heat pumps and solar thermal systems for self-sufficient heating. Wood is also considered CO2-neutral. During combustion, only the exact amount of carbon dioxide is released that the tree has absorbed in the course of its growth.
Sustainable forestry, which is prescribed by law in Germany and practised across the entire forest area, in which no more wood is felled than grows back, is combined with the climate-friendly CO2 neutrality of the fuel and the creation and safeguarding of jobs in the timber industry, in industry and in the skilled trades.
Our water-fuelled fireplaces heat the room in which they are installed and simultaneously and comprehensively support your central heating system. The water heats up in the background, while the classic fireplace atmosphere fills the room in the foreground.
How it works
The circulating water heats up during combustion and the resulting heat is channelled into the buffer tank via pump groups. This stores the heat generated during combustion for many hours and releases it continuously as required. As soon as less energy is channelled through the chimney into the buffer tank and the temperature sensors detect a drop in temperature, the central heating kicks in again.
Description
- Manufacturer: CAMINA-SCHMID
- Energy efficiency class:
- Nominal heat output kW: 14.5 (10.1 for water)
- Heat output range 6.0 - 14.5 kW
- Efficiency >80 %
- Model: Built-in
- Fire view: 1-sided
- Fuel: Logs
- Combustion system: Closed combustion, dependent on room air
- Glass version: double glazing
- Design Door: Door slides up (tilts for cleaning), not self-closing at the factory (weights for conversion are included)
- Standard version: Kristall*
- Door heights: 10051 - height 51 cm
- Flue pipe connection diameter 200 mm
- Combustion air connection: Ø150 mm for behind, left & right
- Weight 330 kg
- Recommended log length 33 cm
- Heat output: 10 % via the viewing window
- Heat output: convective output 20 %
- Heat output: water 70 %
- Standard inner lining: smooth white fireclay
- High-quality cast iron dome, all parts movable, adjustable from 0 - 90°
- Certifications: BImSCHV. 2nd stage. EFA
- Operation possible with type A1: yes (self closing)
- Operation possible with type A: yes
- Incl. thermal drain safety device (TAS)
Accessories:
- SMR multi-control
Optional:
- Combustion air connection Ø150mm for bottom
- Inner lining: anthracite fireclay or anthracite cast iron
*With the Kristall front version, the fire is framed by the glass ceramic printed on 4 sides and thus emphasised even more clearly.
Important note: Please speak to your local district chimney sweep for authorisation to install the planned fireplace before purchasing.
Shipping conditions
Delivery is only possible within Germany.Other countries only on request; pick up is also possible!
Shipping costs (including statutory VAT)
Deliveries within Germany:
We calculate the shipping costs based on the order value (gross goods value):
up to a goods value of 99.99 EUR = 6.90 EUR
free shipping within Germany from a goods value of 100 EUR
Download Data Sheet and Assembly Instructions
Download data sheet: click hereDownload assembly instructions: click here
Manufacturer: Camina & Schmid
Feuerdesign und Technik GmbH & Co. KG
Gewerbepark 18
49143 Bissendorf
Phone +49 5402 7010-10
Fax +49 5402 7010-70
www.camina-schmid.de
Protective measures/safety instructions for installation (wood fires and stoves)
The following protective measures and safety instructions must be strictly observed:
- Fireplaces may only be installed in rooms and in places where the location, structural circumstances and type of use do not present any hazards.
- No modifications may be made to the appliance.
- Only use the approved system for exhaust gas removal/combustion air supply.
- Work on the stove system Installation, commissioning, maintenance and servicing work on the appliance may only be carried out by an authorized specialist company.
as the safety and functionality of the system depend on proper installation. - The installation must be carried out by a registered specialist company, as the safety and functionality of the system depend on proper installation. You must observe the applicable trade regulations and building regulations.
- Fireplaces must be installed in an operationally safe and fireproof manner so that hazards and unreasonable nuisances cannot occur. They must be fit for purpose for a reasonable period of time.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
Protective measures/safety instructions for installing gas fireplaces
The following protective measures and safety instructions must be strictly observed:
- Installation and maintenance of the appliance may only be carried out by a recognized and competent installer in the field of gas heating and electricity.
- No modifications may be made to the appliance.
- Only use the approved flue gas extraction/combustion air supply system.
- Procedure when installing a free-standing appliance: place the appliance at the specified minimum distance from the rear wall (see information in the instructions).
- Do not cover the appliance or wrap it in an insulating blanket or other materials. Ensure that there are no flammable objects and/or materials in the radiation area of the appliance. This radiation range is 500 mm, unless otherwise specified.
- Only use the set included in the scope of delivery, for example the wooden block set or the pebble set, and place it exactly as described.
- Leave the space around the ionizing pin and the ignition pin free and never place any incandescent material around these pins.
- Make sure that the gas pipes and connections are clean and free of any impurities. Install a gas tap in accordance with the applicable regulations.
- Check the entire system for gas leaks before commissioning.
- Check the entire system for gas leaks before commissioning.
- Ensure that the pressure equalization hatch(es) at the top and/or bottom of the appliance are not blocked and check that these hatch(es) are well connected to the sealing surface before installing the appliance.
- Do not ignite the appliance until it has been fully installed in terms of gas technology, exhaust technology and electrical technology.
- Do not use the appliance if a pane is broken and/or cracked. The pane must be replaced first.
How to install a built-in appliance:
- Use fireproof and heat-resistant materials for the fireplace surround, including the top of the fireplace surround and the material inside the fireplace surround, such as the floor under the appliance and the rear wall in front of which the appliance is installed. Both panel materials and stone-like materials can be used for this purpose.
- Take appropriate protective measures to ensure that the wall behind the fireplace surround and the materials or objects located behind the rear wall do not heat up too much.
- Observe the minimum specifications regarding the internal dimensions of the fireplace surround. These have been specified for safety reasons and to avoid extreme heat build-up in the fireplace conversion.
- Ventilate the fireplace conversion using ventilation openings. These openings are crucial for safety and to prevent extreme heat build-up in the fireplace conversion.
- The electrical connections must be heat-resistant.
- Position the heat-resistant power connections away from the appliance and as low as possible in the fireplace surround.
- This applies in connection with the temperature development in the fireplace surround.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance when children, the elderly or physically disabled persons are in the same room.
