Gas Flare BUZZ
Flexible fire enjoyment for sophisticated occasions

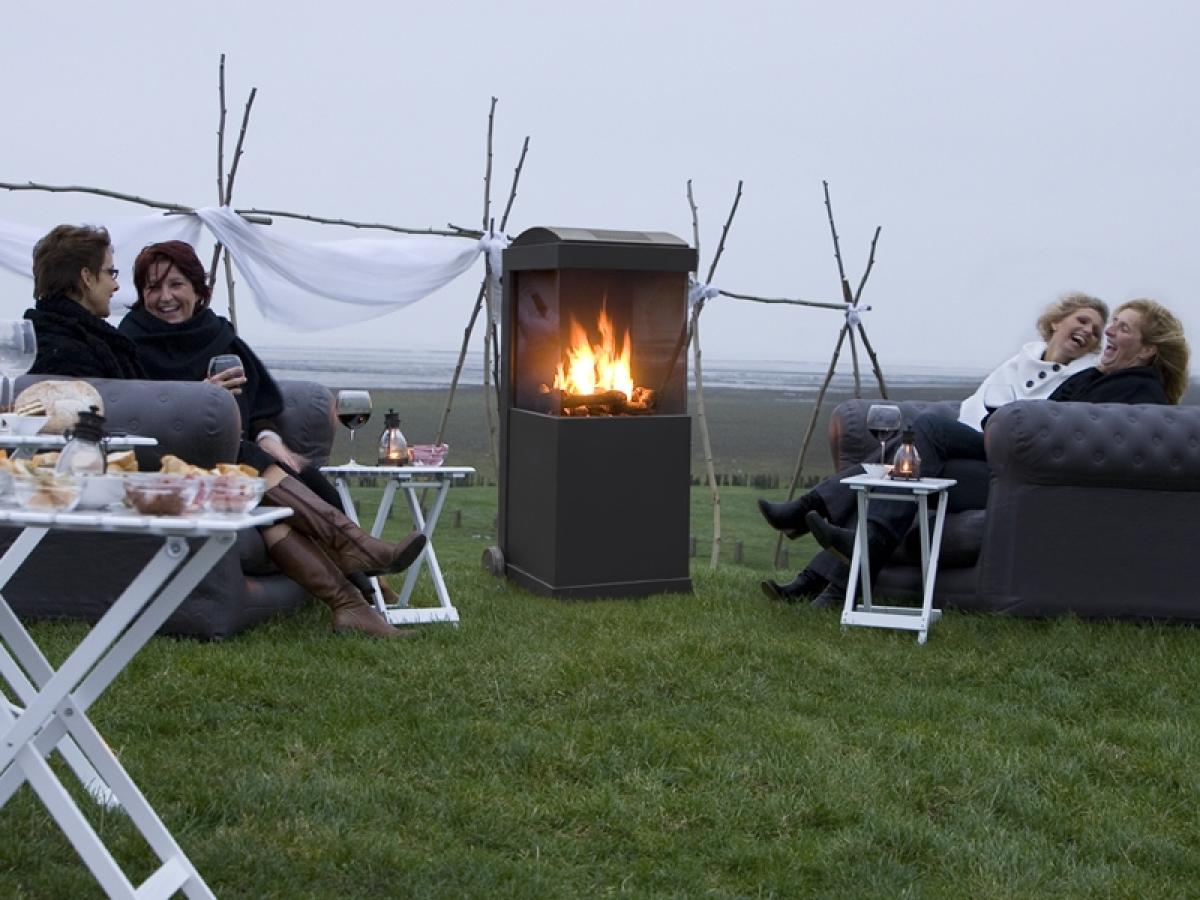

Faber's outdoor fireplaces enrich every patio and garden. The designs exude thoughtful simplicity and class without being obtrusive and are always a sight to behold. The Faber Buzz is powered by easy-to-connect gas bottles and has automatic ignition, so operation requires little attention. Thanks to the integrated wheels, the Faber Buzz gas fire pit is easy to move outdoors. The optional outdoor gas connection can also be used to connect the fireplace to a fixed gas line, making it even easier to use when permanently installed.
The ceramic wood set included as standard makes the fire look particularly realistic.
Runs on a gas bottle (propane) or with natural gas via a natural gas socket.
Sleek and clear, easy to transport and easy to store.
An elegant outdoor fireplace that can be operated with both a (natural gas) socket and (propane) gas bottles.

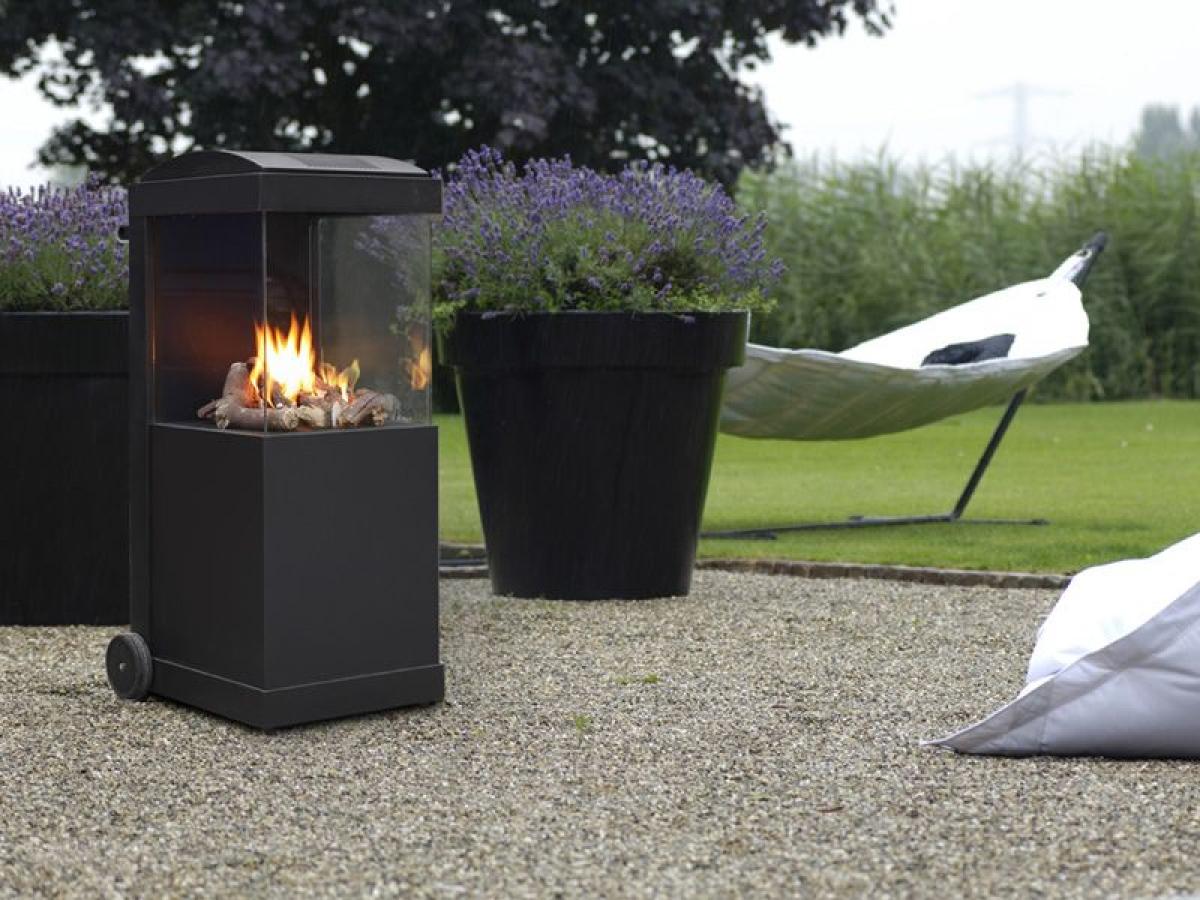

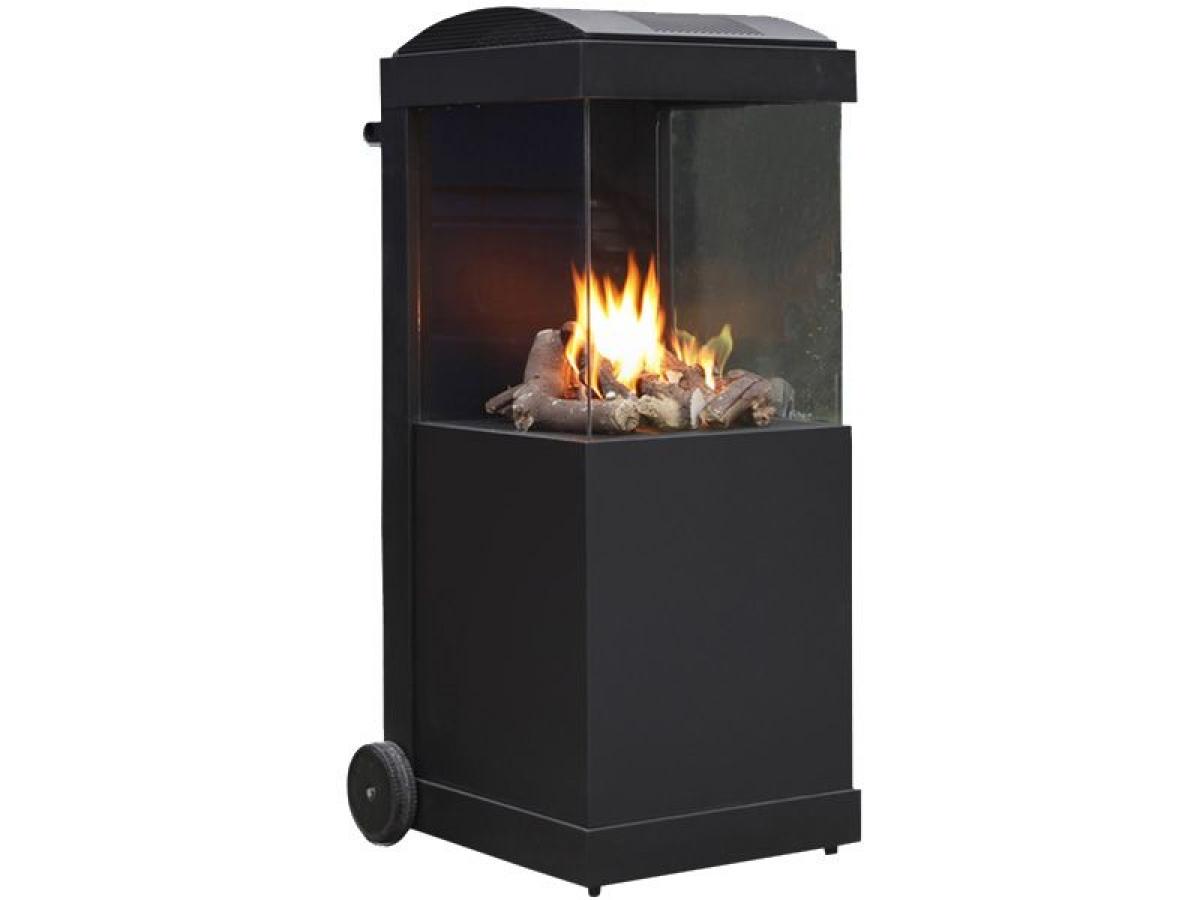

With this elegant, straight-lined and mobile steel outdoor fireplace, you can bring a fireplace atmosphere to your terrace or balcony. BUZZ is suitable for private gardens and also for restaurants to extend the outdoor season. Thanks to the wheels under the fireplace, you can easily position it wherever you want.
Product description
- Glazed on 3 sides

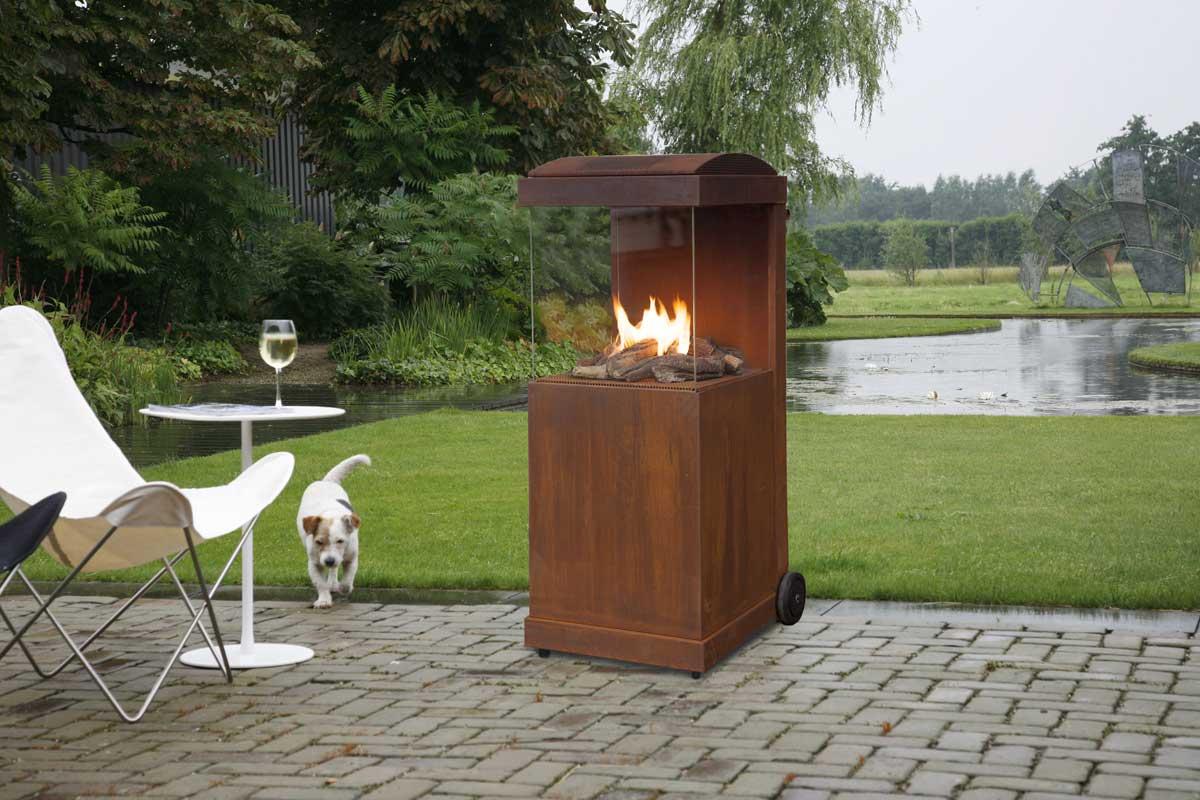

- Black painted or in rust-look Corten steel
- The base hides the 11 kg liquid gas bottle (not included)
- Approx. 16 hours of burning time at full load
- Includes ceramic logs
- 2 wheels under the device allow easy and convenient transport
- Manual operation

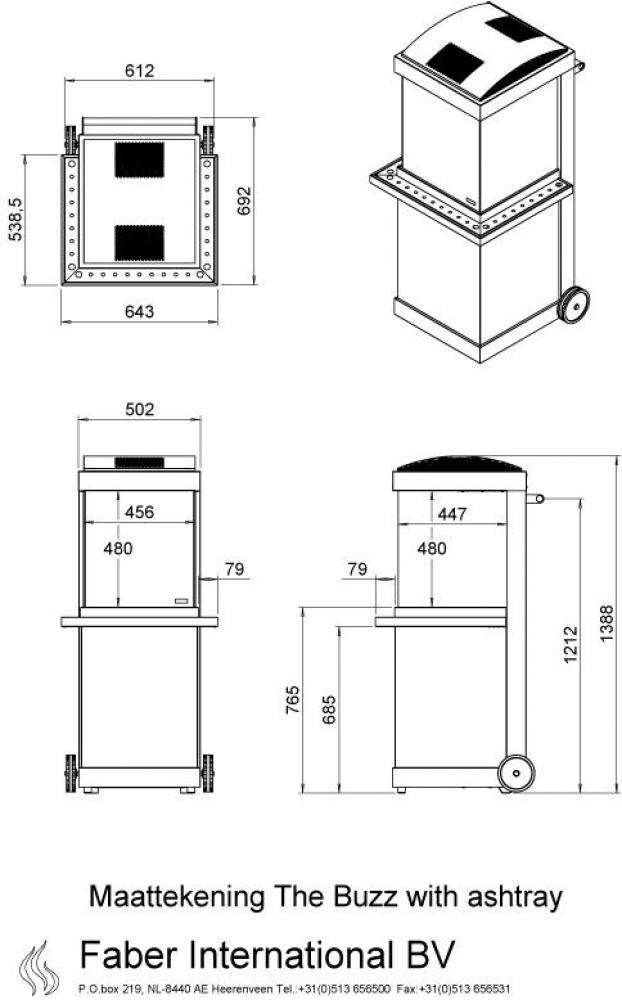

- Dimensions: 612 x 1288 x 620 mm (WxHxD)
- Weight: approx. 70 kg
Optionally available: external gas plug connection
Technical data
Operating mode: propane gas (natural gas optional)
Gas connection: standardized for 5+11 kg liquid gas bottles
Power consumption (nominal heat load): 6.5 kW
Gas consumption: 0.5 kg per hour
Shipping conditions
Delivery is only possible within Germany.Other countries only on request; pick up is also possible!
Shipping costs (including statutory VAT)
Deliveries within Germany:
We calculate the shipping costs based on the order value (gross goods value):
up to a goods value of 99.99 EUR = 6.90 EUR
free shipping within Germany from a goods value of 100 EUR
Manufacturer: Glen Dimplex Benelux
Flame Europe
Saturnus 8
8448 CC Heerenveen
Netherlands
Phone +31 513 656 500
www.faberfires.com
Danger and warning notices for effect burners (electric fires)
- These appliances must not be used unsupervised by children or disabled persons.
- The design of the appliances must not be modified.
- Only spare parts approved by the manufacturer may be fitted.
- Read the operating instructions carefully before use.
- Do not place any flammable objects in or on the appliance.
- Never cover the appliance.
Protective measures/safety instructions during installation of gas fireplaces
The following protective measures and safety instructions must be strictly observed:
- Installation and maintenance of the appliance may only be carried out by a recognized and competent installer in the field of gas heating and electricity.
- No modifications may be made to the appliance.
- Only use the flue gas extraction/combustion air supply system supplied by DRU.
- Procedure for installing a freestanding appliance: place the appliance at the specified minimum distance from the rear wall (see the information later in this text).
- Do not cover the appliance or wrap it in an insulating blanket or other materials. Ensure that there are no flammable objects and/or materials in the radiation area of the appliance. This radiation range is 500 mm, unless otherwise specified.
- Only use the set included in the scope of delivery, for example the wooden block set or the pebble set, and place it exactly as described.
- Leave the space around the ionizing pin and the ignition pin free and never place any incandescent material around these pins.
- Make sure that the gas pipes and connections are clean and free of any impurities. Install a gas tap in accordance with the applicable regulations.
- Check the entire system for gas leaks before commissioning.
- Make sure that the pressure equalization hatch(es) on the top and/or bottom of the appliance are not blocked and check that these hatch(es) are well connected to the sealing surface before installing the appliance.
- Do not ignite the appliance until it has been fully installed in terms of gas technology, exhaust technology and electrical technology; first go through the procedure described in chapter 7.3 of the instructions.
- Do not use the appliance if a pane is broken and/or cracked. The pane must be replaced first.
Procedure for installing a built-in appliance:
- Use fireproof and heat-resistant materials for the fireplace surround, including the top of the fireplace surround and the material inside the fireplace surround, such as the floor under the appliance and the rear wall in front of which the appliance is installed. Both panel materials and stone-like materials can be used for this purpose.
- Take appropriate protective measures to ensure that the wall behind the fireplace surround and the materials or objects located behind the rear wall do not heat up too much.
- Observe the minimum specifications regarding the internal dimensions of the fireplace surround. These have been specified for safety reasons and to avoid extreme heat build-up in the fireplace conversion.
- Ventilate the fireplace conversion using ventilation openings (see instructions). These openings are crucial for safety and to prevent extreme heat build-up in the fireplace conversion.
- The electrical connections must be heat-resistant.
- Position the heat-resistant power connections away from the appliance and as low as possible in the fireplace surround.
- This applies in connection with the temperature development in the fireplace surround.
The appliance is designed to create a cozy atmosphere and to heat. This means that all visible surfaces, including the glass, can become hotter than 100°C. It is recommended to always place a protective grille in front of the appliance if children, the elderly or the physically disabled are in the same room as the appliance. If vulnerable persons may regularly be present in the room without supervision, a fixed screen must be fitted around the appliance.
